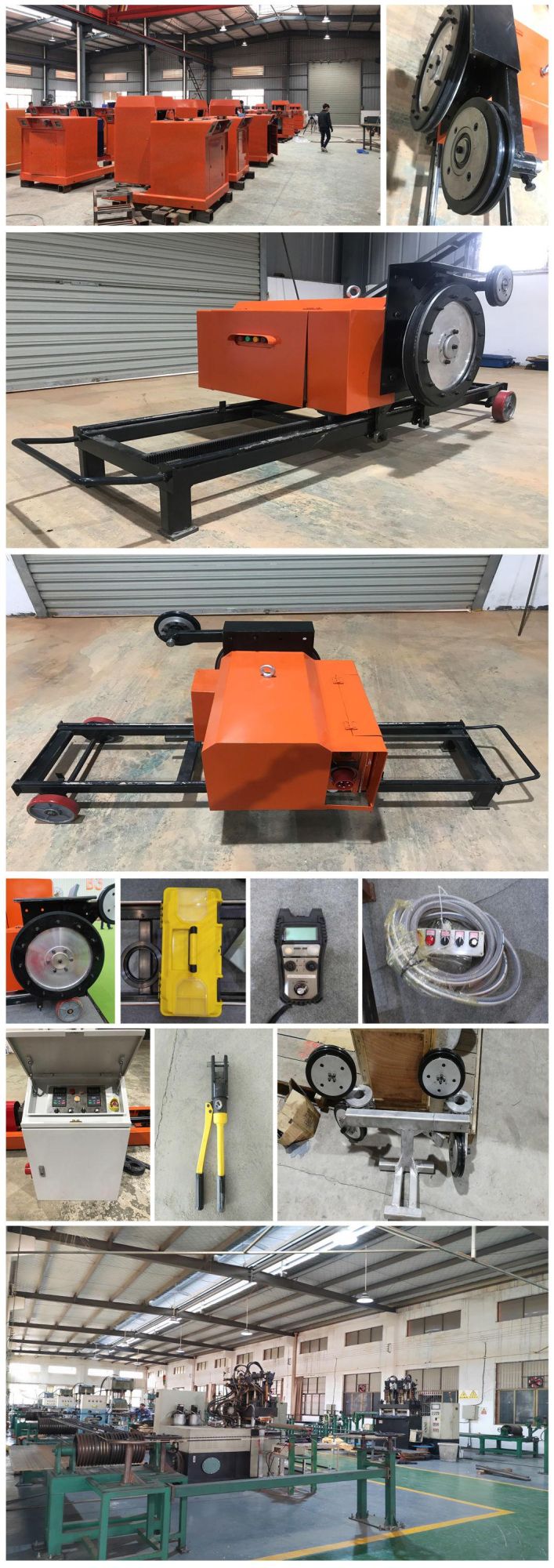

18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring

Jiangxi Zhongli Superhard Materials Tools Co., Ltd.
  • Type：Wire Saw Machine
  • Usage：Granite, Marble, Concrete and Stone Block
  • Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Control：Remote Control
  • Certification：ISO, CE
  • Power：22 Kw, 18.5 Kw
  • Color：Yellow or Orange or Red
  • Inverter：Singular or Dual Inverter
  • Cutting Material：Conrete or Stone Block or Floor
  • Wire Saw Diameter：10.5,11.0,11.5mm
  • Guide Wheel：500,200mm
  • Warranty：1 Year
  • Wire Holding Capacity：9m
  • Transport Package：Wood Pack or as Request
  • Specification：3 meter, 2 meter
  • Trademark：Zhongli tools, zoomli tools
  • Origin：Jiangxi, China
  • HS Code：8464102000
  • Production Capacity：80PCS,Month

Description

ModelZL-22FATSZL-18FATSDriving wheel Dia.500/550mm500/550mmMotor power22KW18.5KWLength of wire20-5020-50Wire speed0-40m/s0-40m/sWalking speed0-144m/h Waking motor power0.2KW0.2KWRail length1550mm1550mmRail width470mm470mmRPM0-980r/min0-980r/minVoltageAC380±10% 50Hz 3phaseAC380±10% 50Hz 3phaseWorking environment temperature(-15ºC- +40ºC)(-15ºC- +40ºC)Total weight450kg420kgSize2400*900*900mm2400*900*900mm Repair KitThe kit must be approved by the manufacturer of the cable cutting system.yesComposition of the kit must ensure the operation of the wire-cutting system for 2 years, taking into account that within one year the wire-cutting system will operate for 1000 hoursCan ensure work 2000 hoursThe cutting system must comply with the 2006/42 / EC (Machinery Directive) and 2014/35 / EU (electrical safety) or equivalent yesThe guaranteed period of the supplied goods must be not less than 2 years from the date of signing the acceptance-transfer act.  1-year guarantee
or 2000 hours, as which come firstDuring the warranty period, the Supplier must repair or replace the goods or its parts that do not comply with the parameters specified in the operating or maintenance documentation. Yes,
Exclude damage to machine parts caused by intentional damage or operational errors.
Consumables can be replaced free of charge during the warranty periodThe goods supplied and the parts to be replaced during the warranty period must be new and not used. yes



Rubber+spring40/mNormally reinforced22-252-4.52-611.0Highly reinforced20-221.5-3.52-410.5Steel/metal reinforced18-200.5-21-3

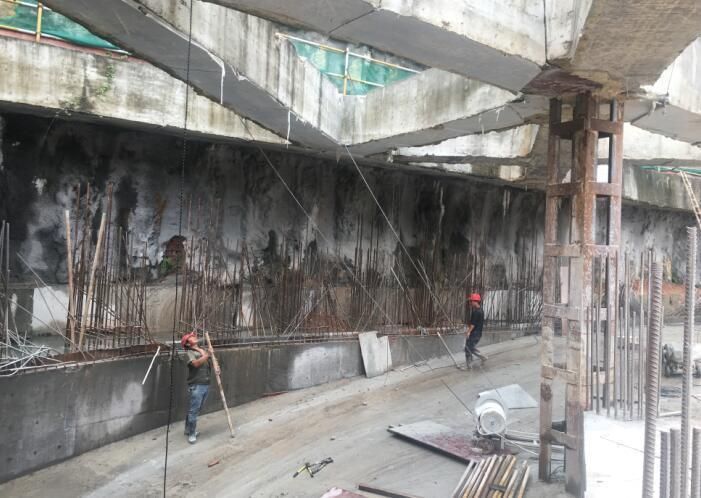

Clients feedback of concrete wire saw performance

1. Finland market cutting bridge
--Material cutting area: 15 square meters, Steel pipe inside.
--Wire diameter: 10.5mm
--Machine power: 18.5kw
--cutting speed: 3 square meters per hour;
--Wire life: 2.5 square meters per meter

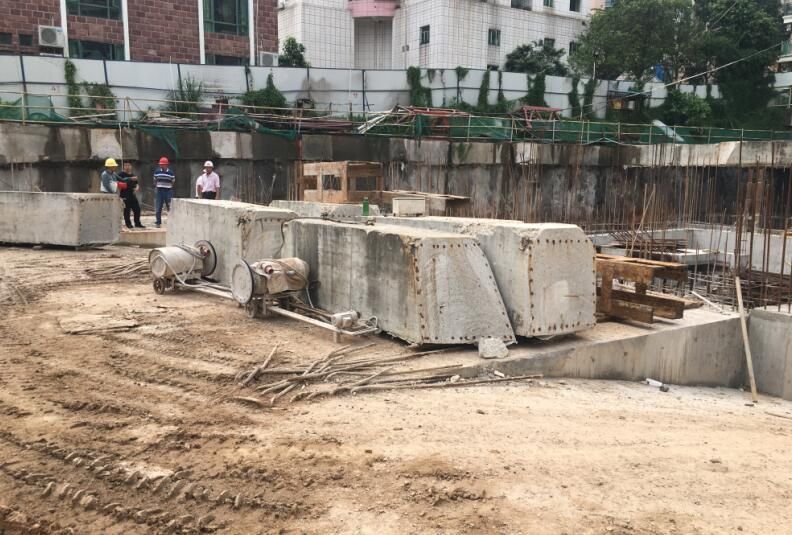

2. Japan market cutting building

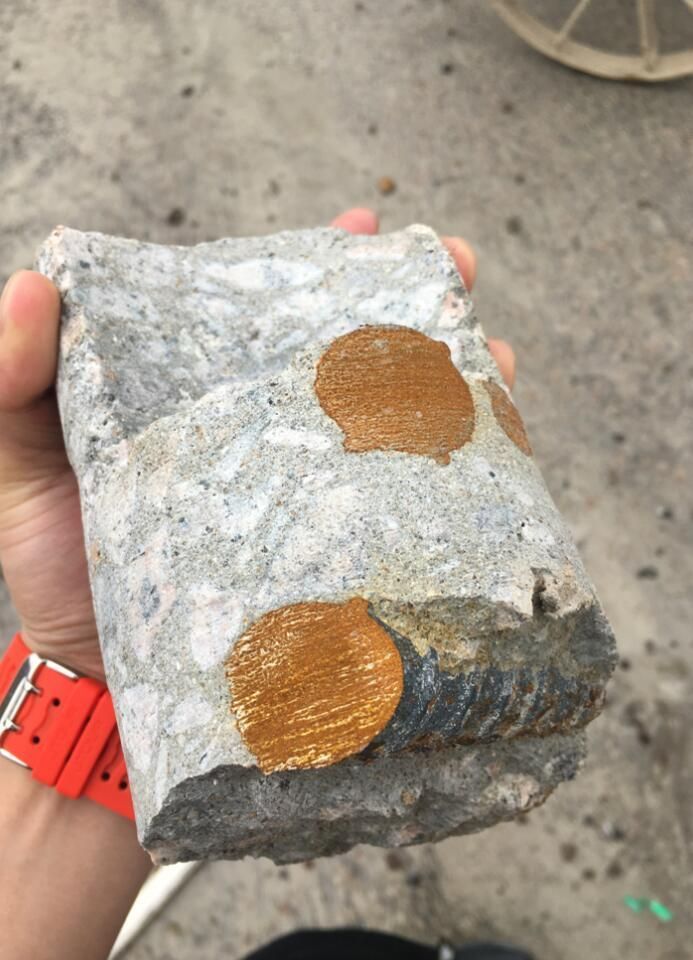

--Material cutting area: 1.5 square meters, 25mm thickness steel inside.
--Wire diameter: 11.5mm
--Machine power: 18.5kw
--cutting speed: 2.4 square meters per hour
--Wire life: 2.6 square meters per meter

2. Thailand market cutting building

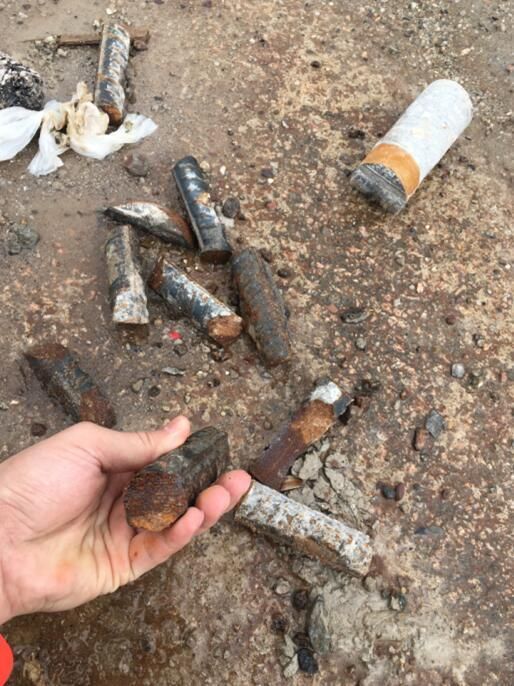

--Material cutting area: 1.2 square meters, 32mm thickness steel inside.
--Wire diameter:11.5mm
--Machine power: 18.5kw
--cutting speed: 1.2 square meters per hour
--Wire life: 1.4 square meters per meter
18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring
18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring
18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring
18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring


18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring


18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring




Shipping
18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring

Transport ways choose:
a. For urgent order with less weight or samples, we recommend express service.

b. For normal (regular) orders which weight over 45kgs, we recommend Air Cargo.

c. For big dimensional goods or heavy weight cargo, we recommend Sea Cargo.

Customers Distrubution & Exhibition
Our products spreads to Brazil, South Africa, Europe, South-east Asia, USA and etc.

18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring
18.5/22 Kw Electric Stone Concrete Wire Saw Machine for Concrete Block Cutting Squaring
