• Model NO.：LD series
• Application：Construction, Mineral Industry, Stone Industry
• Drive：Electric
• Crushing Style：Grinding & Impact
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Coarse Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：ISO9001: 2008, SGS
• Trademark：Zenith
• Origin：Shanghai, China
• HS Code：8474209000
• Production Capacity：50-800tph
• Package size per unit product：700.00cm * 300.00cm * 400.00cm
• Gross weight per unit product：10000.000kg

Basic Info.

Model NO. LD series Application Construction, Mineral Industry, Stone Industry Drive Electric Crushing Style Grinding & Impact Compressive Strength (For Crushing) >300MPA Crushing Degree Coarse Crusher Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification ISO9001: 2008, SGS Trademark Zenith Origin Shanghai, China HS Code 8474209000 Production Capacity 50-800tph

Packaging & Delivery

Package size per unit product 700.00cm * 300.00cm * 400.00cm Gross weight per unit product 10000.000kg

Product Description

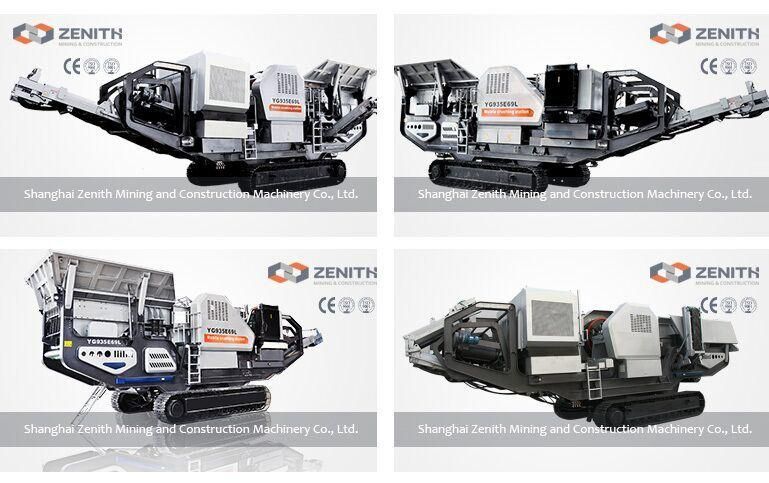

stone Portable Crusher Machine /crawler jaw crushing plant

LD series crawler jaw crushing plant (crawled mobile jaw crushing station) are the best solution of demolition recycling which heavily emphasizemobility and efficiency. The compact design ensures LD series crushing plants have the best transportability andmore crushing capacity.


Features of crawler jaw crushing plant

1. Incorporated design.
2. Truck mounted.
3. Quick road transportation.
4. With support legs on truck, quick to set-up.


Working principle of crawler jaw crushing plant

Materials are evenly transported into the crusher by feeder, then be crushed by impact crusher, to realize circle crushing through closed system constituted by circular vibrating screen. Finished material will be discharged and transported through conveyor for continuous crushing operations. The circular vibrating screen of impact mobile crusher can be removed according to the actual production needs, to achieve the initial crushing of materials. The wheel mobile primary impact crusher is convenient and flexible to be used together with other crushing equipment.


crawler jaw crushing plant parameters:

Model	LD-PE600x900	LD-PE750x1060	LD-PEW860
Feeder	GZD-960x3800	GZD-960x3800	GZD-1100x3800
Jaw Crusher	PE600x900	PE750x1060	PEW860
Main Conveyor	B800x8.5 M	B1000x9 M	B1000x9 M
Height of Main Conveyor (mm)	3200	3500	3600
Side Conveyor(Optional)	B450x3 M	B500x3.5 M	B500x3.5 M
Height of Side Conveyor (mm)	2800	3100	3100
Generator (KW)	180	250	300
Transport Length (mm)	11800	13500	13500
Transport Width (mm)	2900	3200	3200
Transport Height (mm)	3660	4120	4150
Total Weight (t)	40	60	63

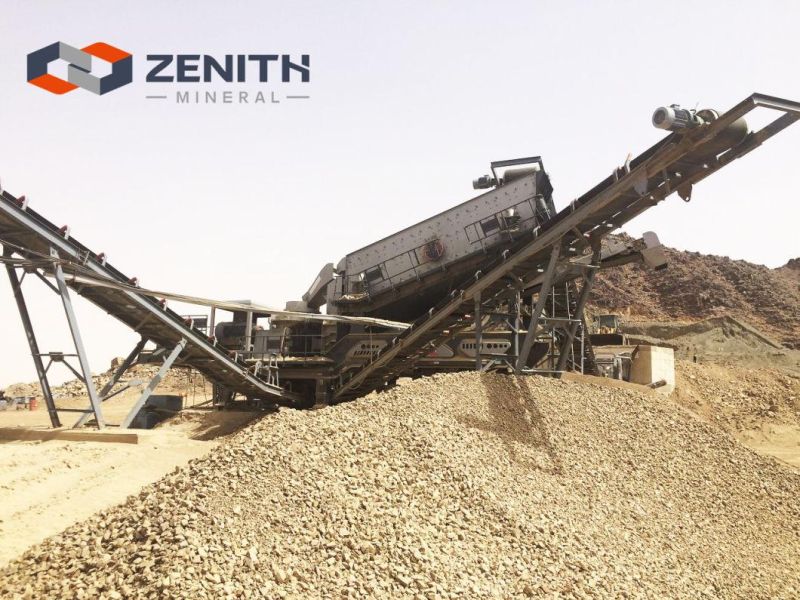

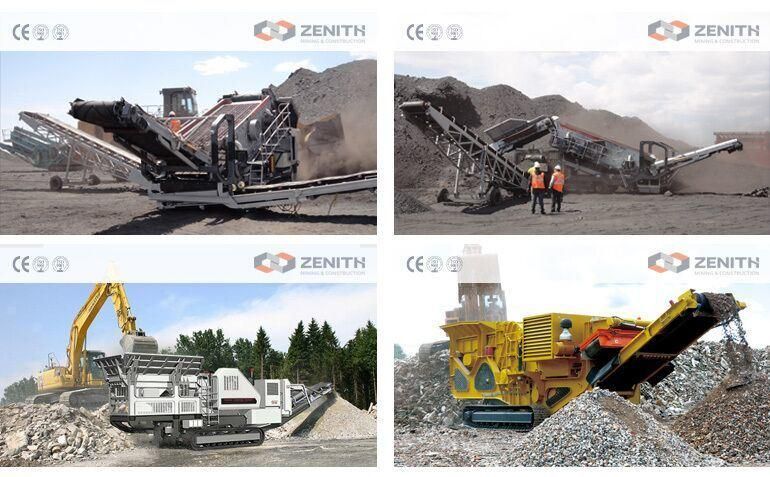

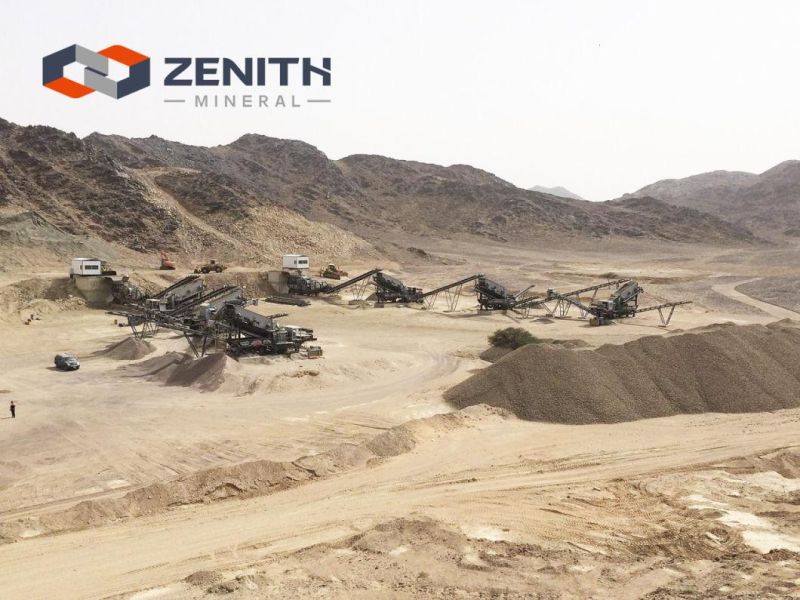

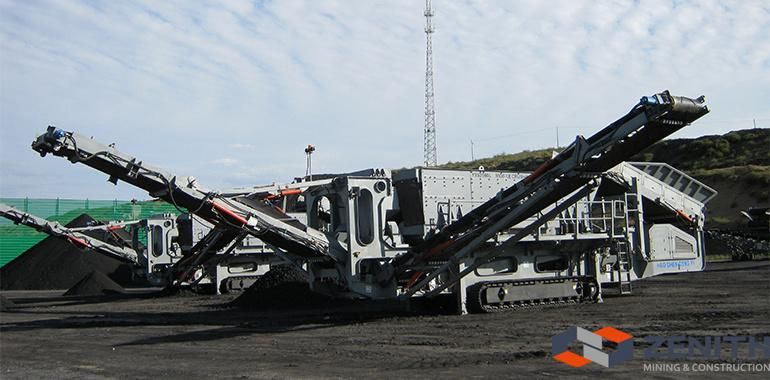

crawler jaw crushing plant customer's site:
