• Model NO.：QQJ-400,600,700
• Cutting Ability：High Speed
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, TUV

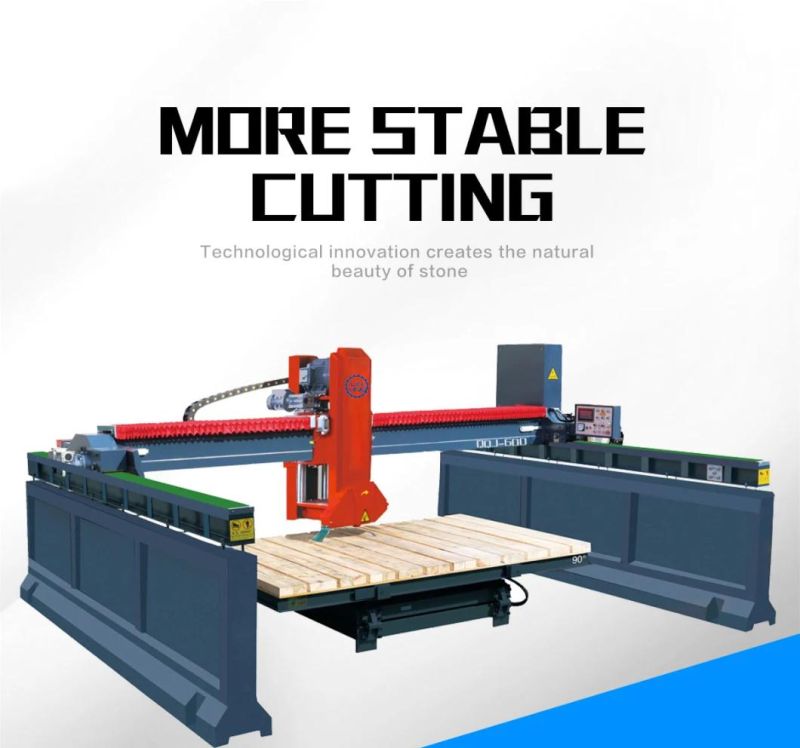

• Product Name：Laser Bridge Cutting Machine
• Keywords：Stone Cutting Machine

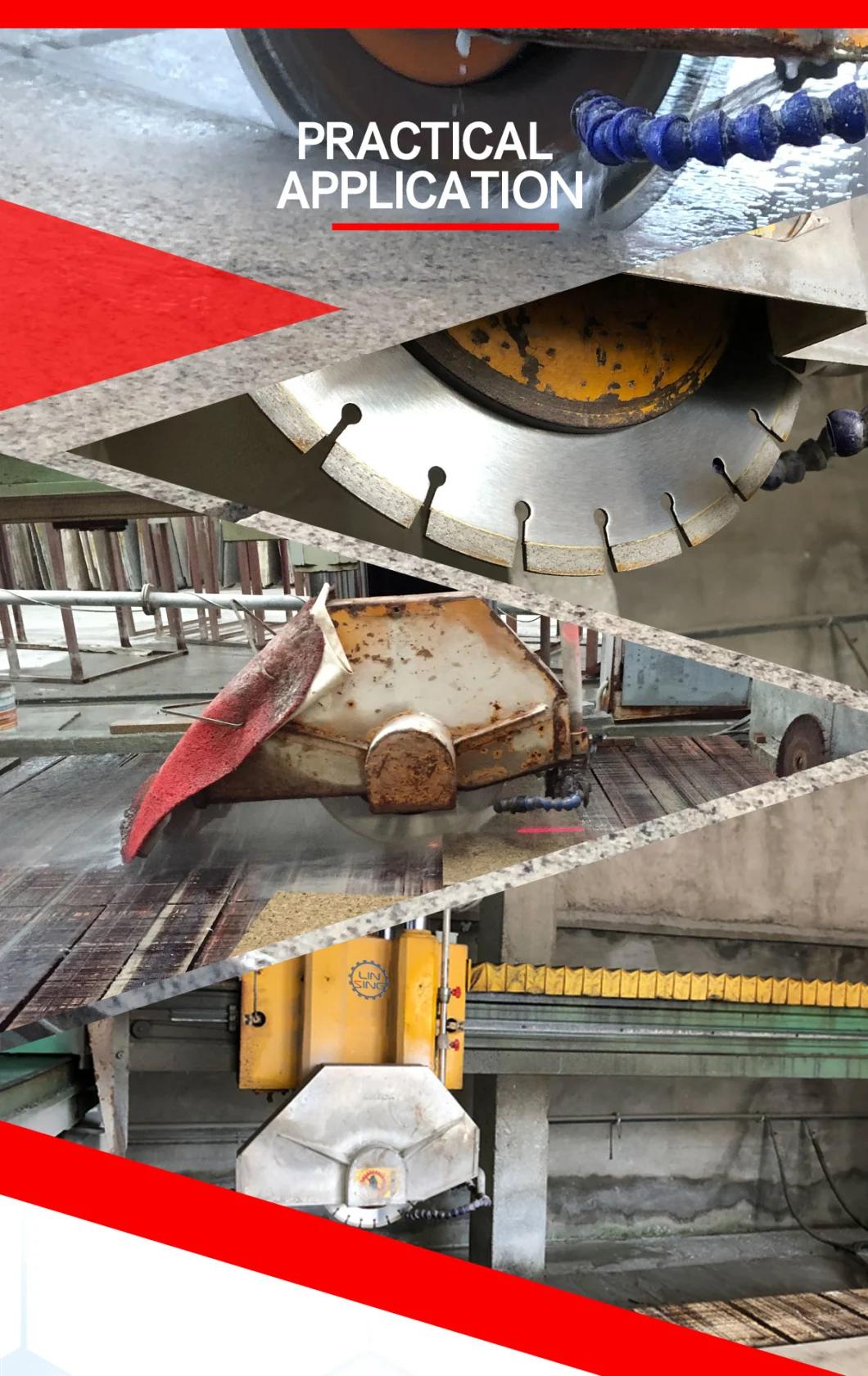

• Used：Slab&Tile&Panel Cutting
• Cut Object：Natural&Artificial Stone
• Quality：Use Thickened Steel.
• Feature：High Precision and Faster Cutting Speed.
• Color：Blue, Yellow, Red, Gray etc.
• OEM&ODM：Sure
• Worktable Size：3200*2000mm
• Worktable Rotation Range(Optional)：0-360
• Worktable Turnover Degree：0-85
• Max.Height of Cutting：180mm
• Water Consumption：3-4m3,H
• Power of Main Motor：18.5kw
• Total Power：24kw
• Transport Package：Wooden Case, Plastic Film and Foam Packaging.
• Specification：Max blade diameter: 400,600,700mm
• Trademark：Linsing
• Origin：China
• Production Capacity：20set,Month

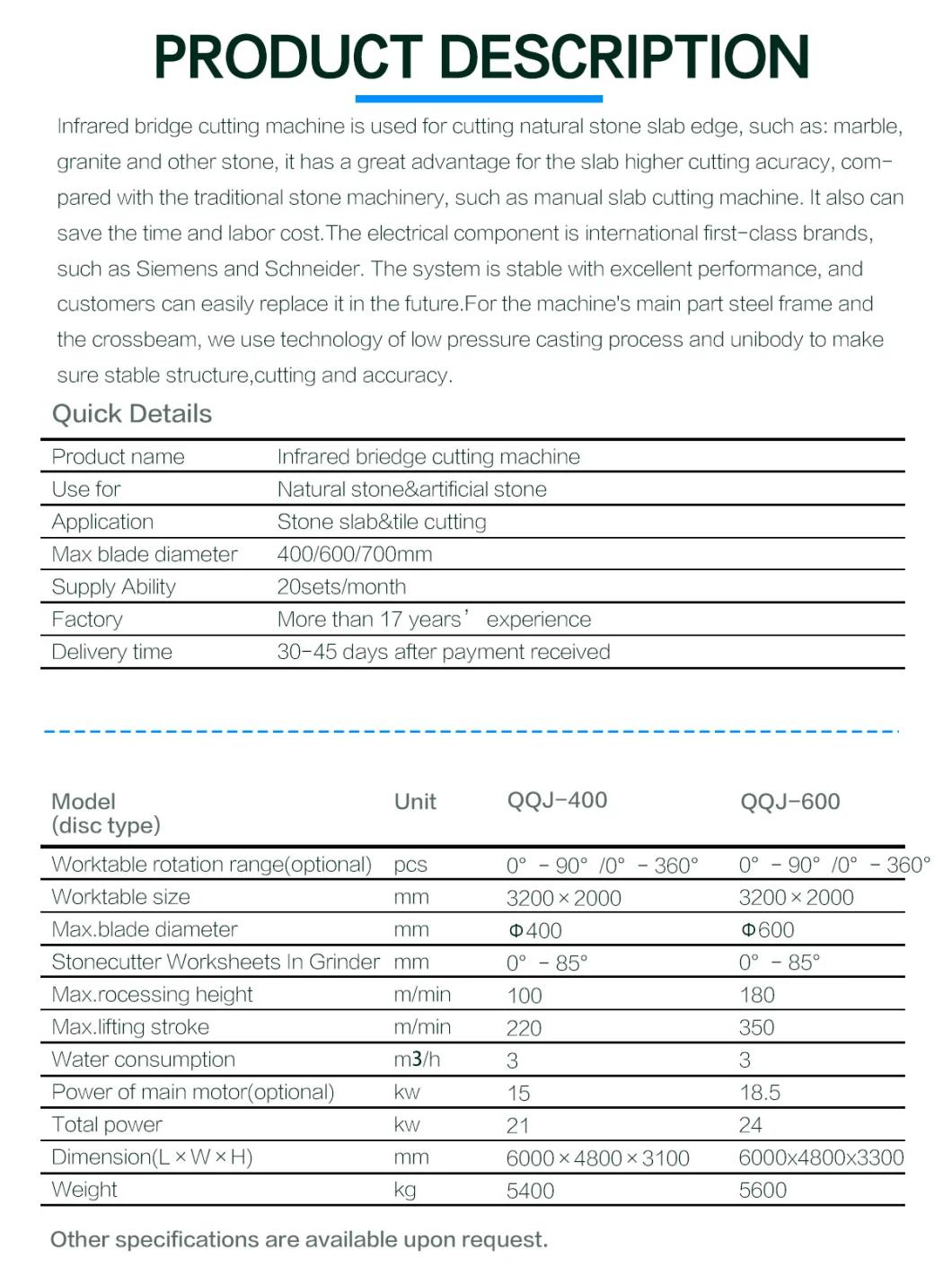

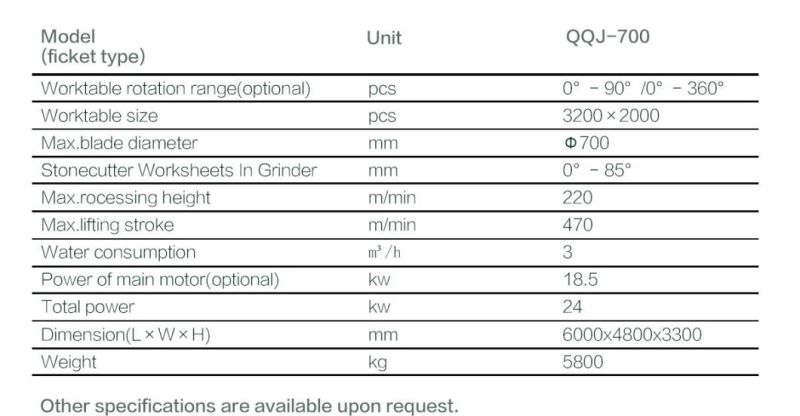

Model:QQJ-400/600/700Max.Blade diametermmΦ400mm-Φ700Max.Lifting srokemm350Worktable sizemm3200×2000Worktable rotation range(optional)°0°- 90°/0°- 360° (Set up by each 45 degree)Worktable turnover degree°0-85°Max.height of cuttingmm180Water consumptionm³/h3Power of main motorkw18.5Total powerkw24Dimension(L×W×H)mm6000×4800×3300Total weightkg5800 (10500kg including concrete base)
