• Model NO.：HKNC-650
• Application：Art & Craft, Construction, Stone Industry
• Source Voltage：220V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：UL, ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Touch Screen：Italian
• Gearing：Rack Gear
• Head Rotation：0-360 Degree
• Head Tilting：0-90 Degree
• Table Rotation：0-360 Degree
• Table Tilting：0-85 Degree
• Diameter of Saw Blade：400-600mm
• Dimension of Working Platform：3300X2000mm
• Max. Length of Horizontal Cutting：3300mm
• Max. Cutting Thickness：200mm
• Max. Lifting Travel of Cutter：280mm
• Main Motor Power：15kw
• Gross Power：21.3kw
• Transport Package：Polypropylene Plastics Packing
• Specification：6300(L)*3600(W)*3100(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month
• Package size per unit product：630.00cm * 360.00cm * 310.00cm
• Gross weight per unit product：5400.000kg

Basic Info.

Model NO. HKNC-650 Application Art & Craft, Construction, Stone Industry Source Voltage 220V Automation Automatic Cutting Ability High Speed Control CNC Certification UL, ISO, CE Color Red and Ivory Guide Rail Linear Guide Touch Screen Italian Gearing Rack Gear Head Rotation 0-360 Degree Head Tilting 0-90 Degree Table Rotation 0-360 Degree Table Tilting 0-85 Degree Diameter of Saw Blade 400-600mm Dimension of Working Platform 3300X2000mm Max. Length of Horizontal Cutting 3300mm Max. Cutting Thickness 200mm Max. Lifting Travel of Cutter 280mm Main Motor Power 15kw Gross Power 21.3kw Transport Package Polypropylene Plastics Packing Specification 6300(L)*3600(W)*3100(H) Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Packaging & Delivery

Package size per unit product 630.00cm * 360.00cm * 310.00cm Gross weight per unit product 5400.000kg

Product Description

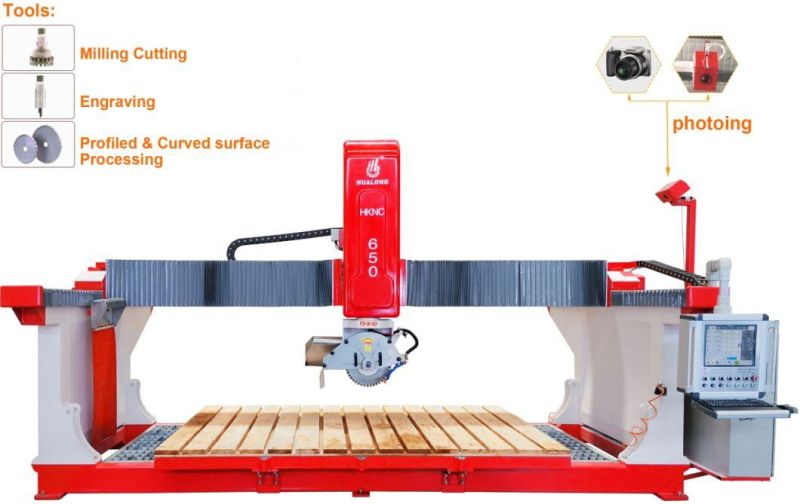

CNC Bridge Stone Cutting and Milling Machine HKNC-650

with 5 axis linkage control,  can implement different complex curved surface processing, profiling, such as kitchen countertop,  tombstone, art decoration slab & rock sculpture etc.

Specific Features

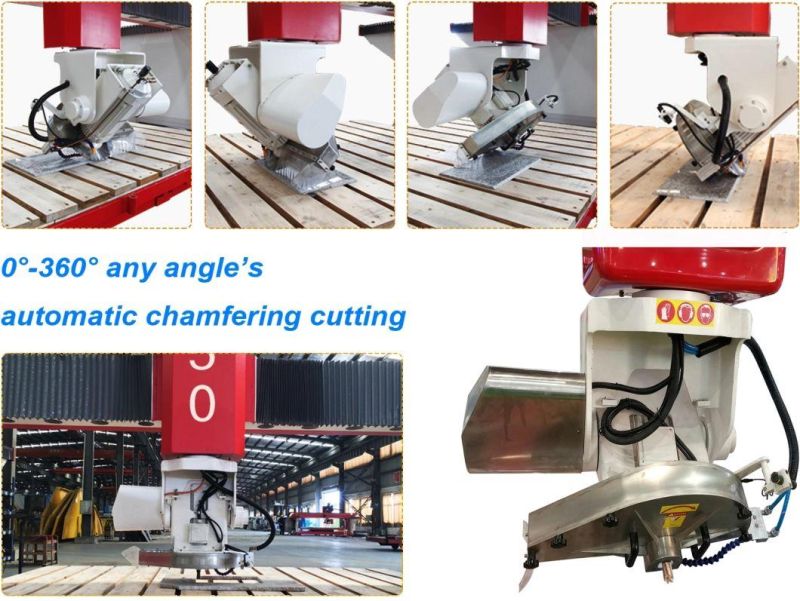

1. 0° to 360° any angle's automatic positioning cutting.

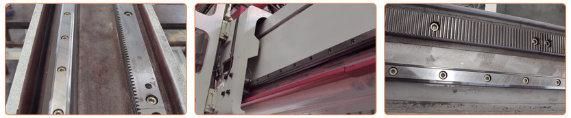

 2. Linear guideway in  "X, Y, Z" axis to guarantee accuracy and speed.

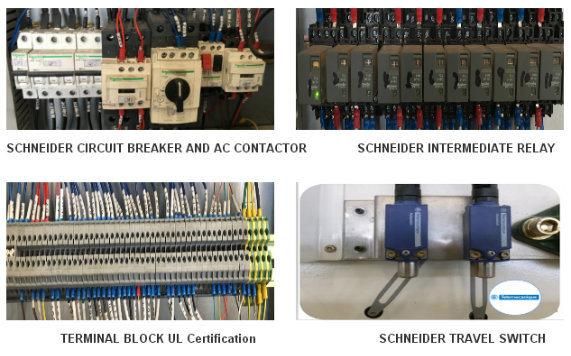

3. Electric components in international standards to be easily sourced

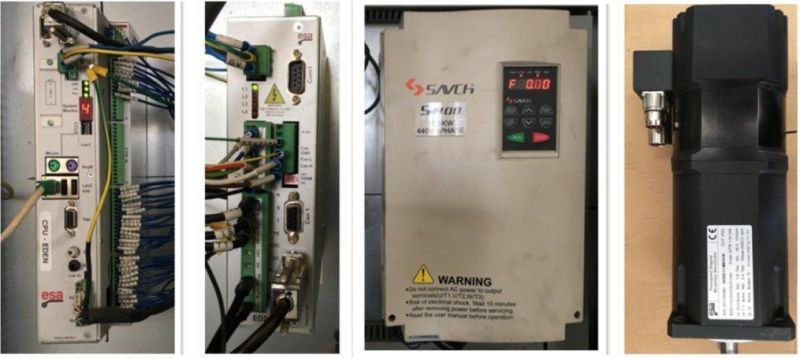

        ITALY CPU               ITALY  MOTOR DRIVING SANCH FREQUENCY CONVERTER   ITALY SERVO MOTOR



4. Italian imported original servo motors for 5 interpolated axes (X,Y,Z,C,A) to faciliate  accurate positioning and faster cutting.

5. Italian imported original software and 15 inch industrial computer screen from Italy.

6. Italian control system in different languages for automatic cutting and easy operation, such as English, Italy, Spanish, Chinese.

7. Milling cutting

8. Engraving

9. Profiling and curved surface processing

10. Photoing

11. Safety door infrared induction (optional)
12. Suction cups which can move 150kgs' slab after cutting.(Optional)

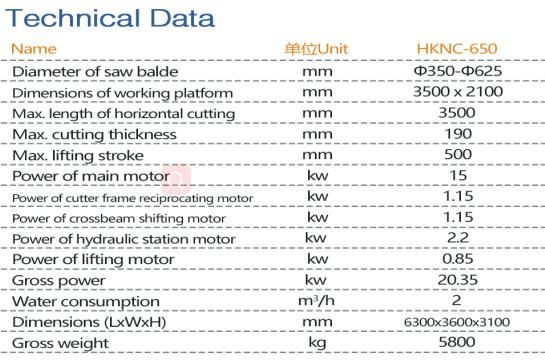

Technical data of the machine shown as below

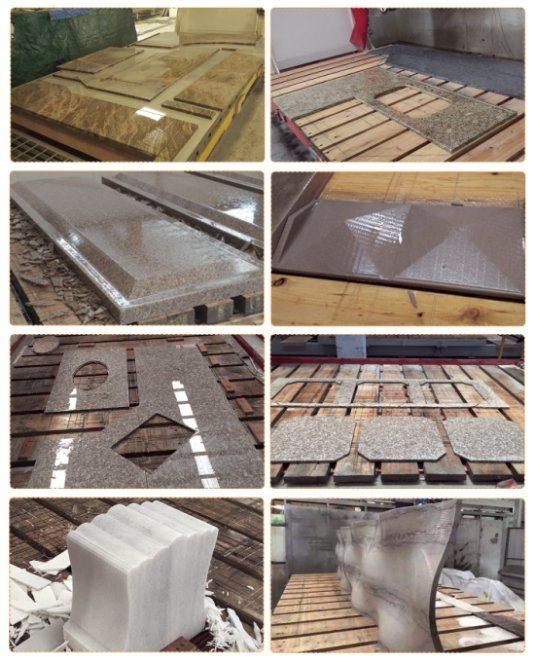

Processed Products:
