• Model NO.：USM1325
• Certification：CE, ISO
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Model：Usm-1325
• Working Area：1300mm*2500mm*200mm
• Table Structure：T-Slot Table with Water Tank
• Spindle Power：Water Cooling 5.5kw
• Inverter：Shanghai Fuling Inverter
• Control System：Nc-Studio Control System
• Drive System：Stepper Motor and Drive
• Rails Guide：Taiwan Hiwin Square Linear Rail
• Oiling System：Manual
• Spindle Speed：24000r,Min
• Max Working Speed：18m,S
• Option：Rotation Axis
• Warranty Time：2 Years
• Command Code：G Code
• Working Voltage：380V, 50Hz
• Transport Package：Strong Plywood Case Packing
• Specification：1300mm*2500mm*200mm
• Trademark：UNISTAR
• Origin：China
• HS Code：8465990000
• Production Capacity：3000pieces,Year

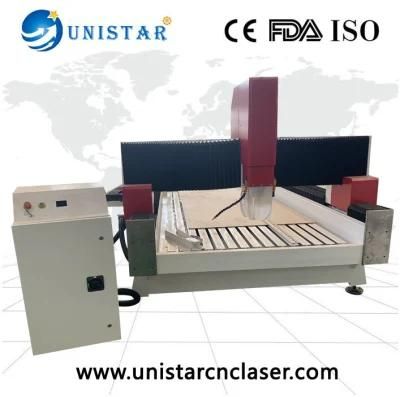

Model

USM-1325

Working size

1300mm*2500mm*200mm

Spindle

 5.5 KW water cooling

Table type

T-slot table with water tank

Controlllor

NC-studio  control system

Transmission

X,Y Rack and pinion, Z Ball Screws

Rail Guide

Taiwan Hiwin  Square Rail Guide

Drive system

Stepper  motor and drive

Inverter

5.5kw Shanghai Fuling Inverter

Dust collect

Auto dust collect system

Oil injection

Manual

Option

Rotation axis

Warranty Time

2 years

Command language

HPGL, G code

Working voltage

AC380V /50HZ

Interface

USB

Command

G code*.u00*.mmg*plt

Features

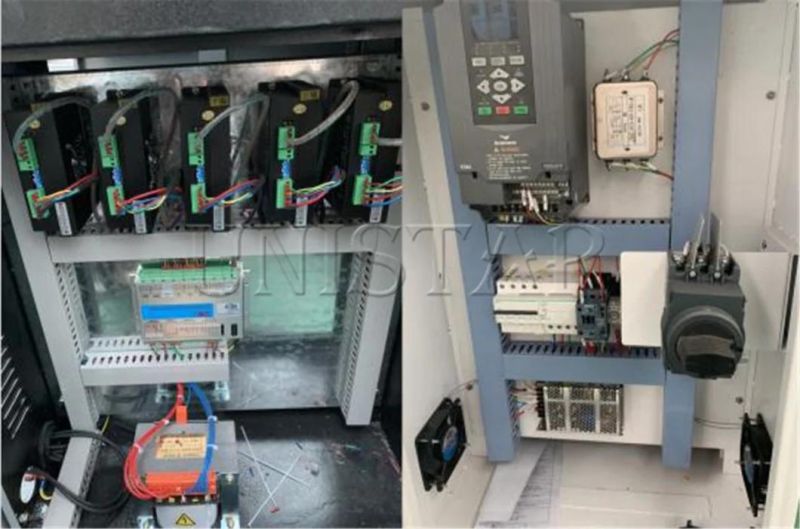

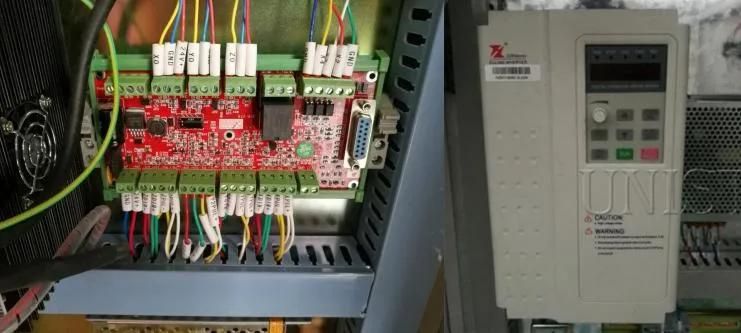

1.Independently Electric Control Box, with perfect wiring and free moving pulleys.
2.high strength body,heavy bed, thick-walled steel welded together to ensure that the body is not deformed,good
   rigidity and strength.
3.Y axis is driven by double motor, carefully matched to ensure smooth movement.
4.The water cooling adopt spindle adopt water cycle to cooling the spindle,cooling effect is good. almost no noise
   long life.
5.Constant power spindle, strong power, high efficiency.

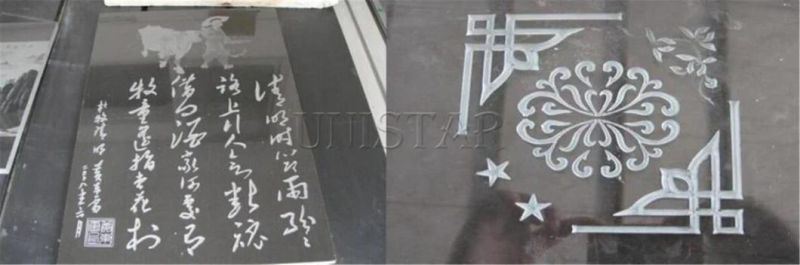

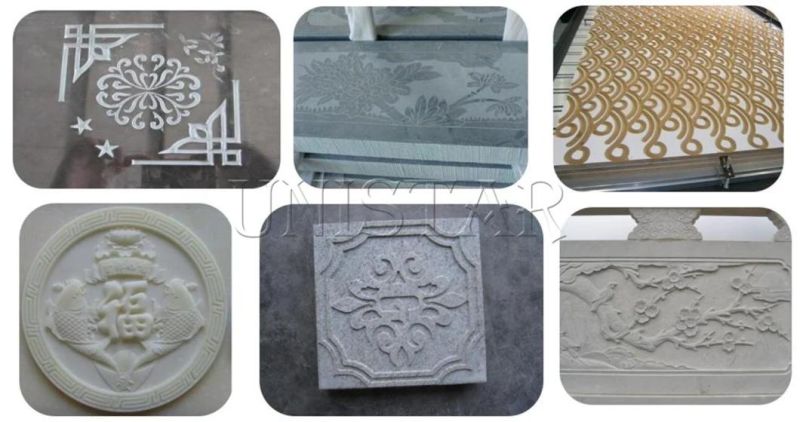

Applicable industry and samples

The Stone cnc machine used for Marble, Granite, Bluestone, Jade, Crystal, Tombstone, Agate, Ceramics,
Glass, Plastics, Synthetic I, Bamboo, Wood, Curved, Spherical, Stainless, Iron, Copper, Lead, Titanium and so on.
It can sculpture in the stone, glass body, patterns, Yin carving, Yang carving, hand-written characters, celebrity
calligraphy, matte painting, flat carved painting.

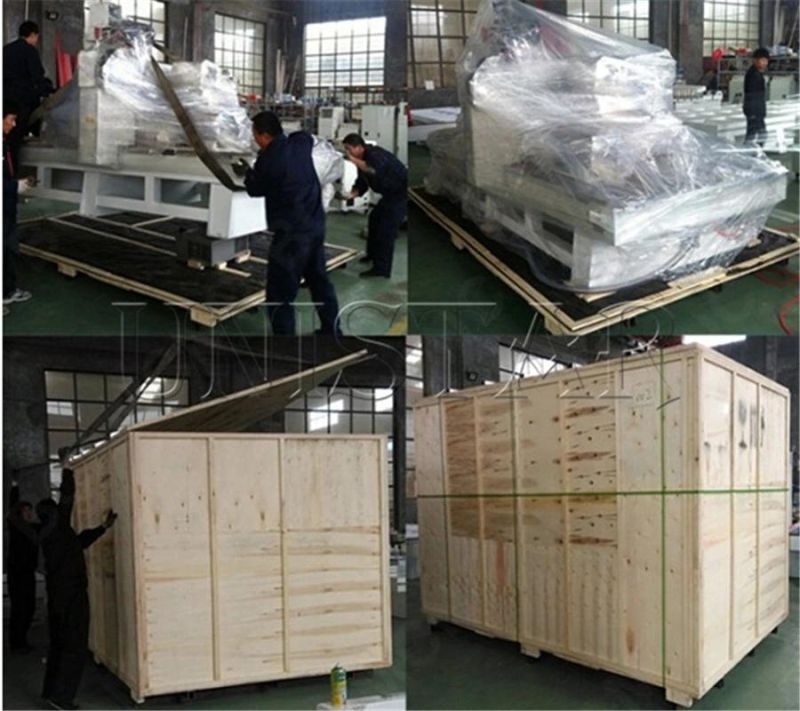

Packing and shipping





Certificate

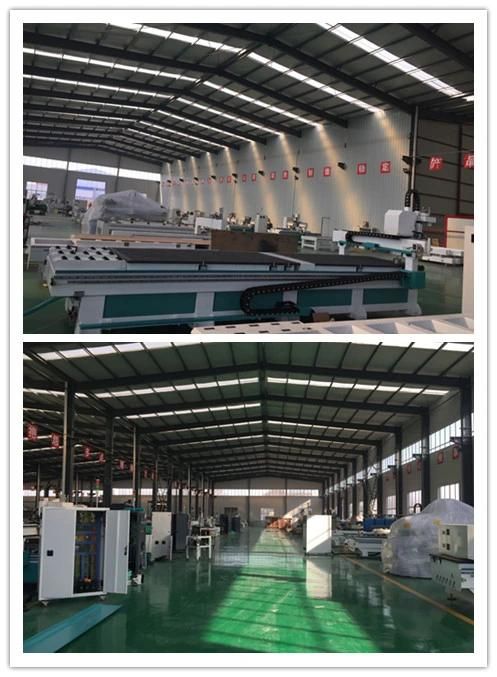

Factory picture





Our service

1. We provide 24 months warranty for the machine. Machine as normal using
    and maintenance condition, if get any problem, will provide spare parts for free.

2.We would deal with all the production and shipping affairs,
   after everything is ready, we would tell you everything goes well here.

3. Consumable parts will be replaced free during the warranty.

4. Our engineer could provide technology support and training for you in your country,
    If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.

5. Our engineer could service for you 24 hours online, by Whatsapp,Wechat,
    or by cellphone etc.we would pay their 100% time and energy to solve your problems!

FAQ

How long about the machine's guarantee?
2 years

How about your after-sales service?
Technical support by phone,Whatsapp,Skype,e-mail or QQ around the clock.

If i bought machine ,but i don't know how to operation,what i can do ?
Our engineer will teach you how to operation the machine through manual,video or email,
i still also will help you

Does your company can processing my samples?
Yes,we can.

Do you arrange shipment for the machines?
Yes,for FOB or CIFprice,we will arrange shipment for you,for EXW price ,clients need to arrange
 shipment by themselves or thier agent.
