• Model NO.：MY-1600
• Application：Acrylic Edge
• Certification：UL, ISO, CE
• Condition：New
• Brand Name：Mintech
• Operation：Button Panel Screen Display
• Cutting Mode：Spindle Feeding
• Angles：0-60 Degrees to Be Any Adjusted
• Working Length：1600mm(or Unlimited)
• Machine Size：2500*1400*1700mm
• Price：Competitive Price
• Customized：Accept
• Export Markets：Global
• Product Guarantee：One Year

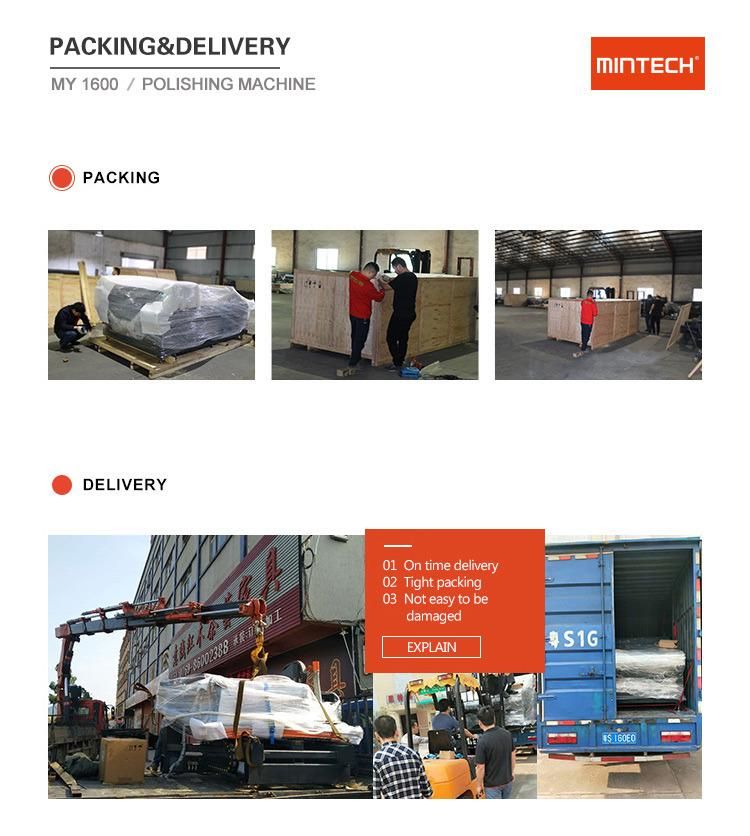

• Transport Package：Safety Package
• Specification：Horizontal
• Trademark：Mintech
• Origin：China
• HS Code：8465930000
• Production Capacity：50sets,Month

Basic Info.

Model NO. MY-1600 Application Acrylic Edge Certification UL, ISO, CE Condition New Brand Name Mintech Operation Button Panel Screen Display Cutting Mode Spindle Feeding Angles 0-60 Degrees to Be Any Adjusted Working Length 1600mm(or Unlimited) Machine Size 2500*1400*1700mm Price Competitive Price Customized Accept Export Markets Global Product Guarantee One Year Transport Package Safety Package Specification Horizontal Trademark Mintech Origin China HS Code 8465930000 Production Capacity 50sets/Month

Product Description

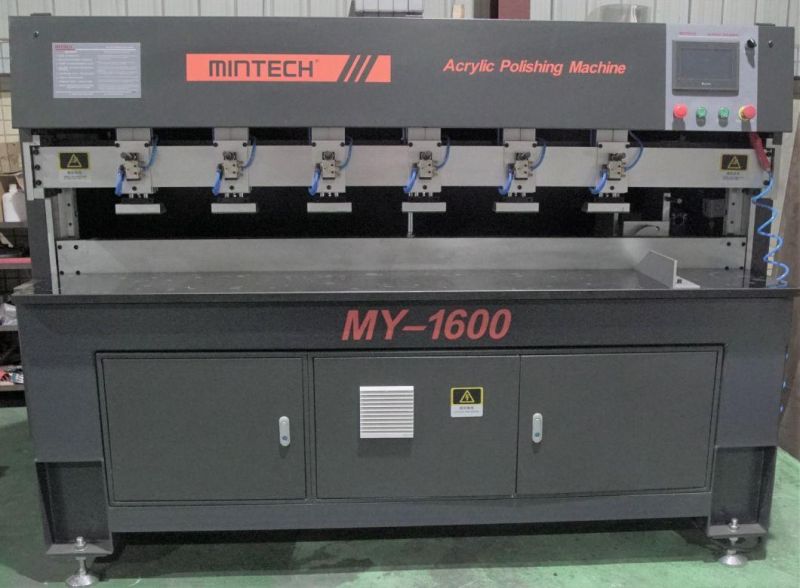

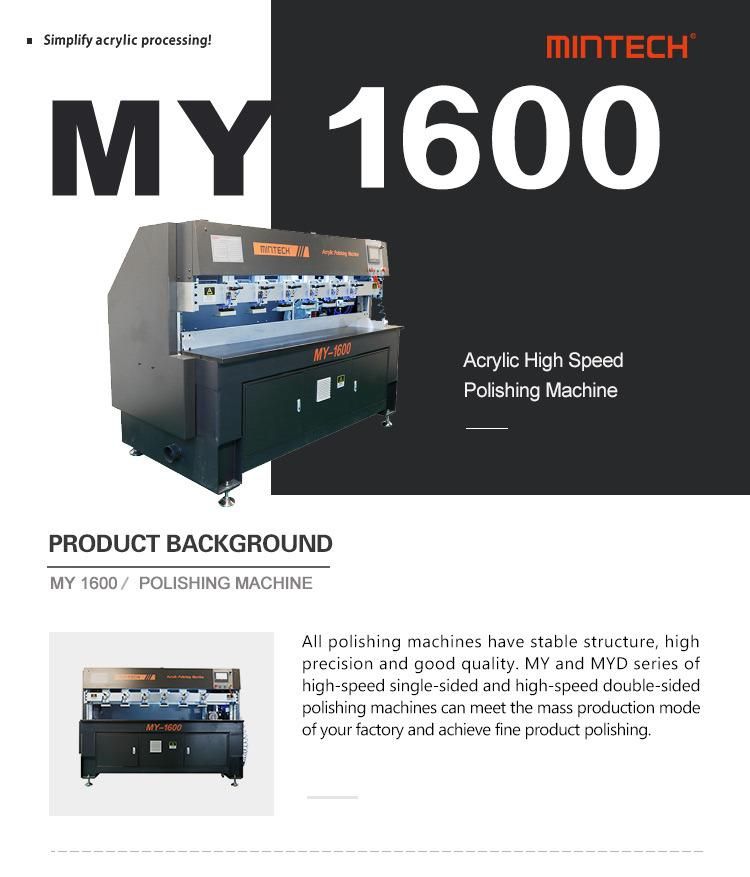

MY-1600 acrylic daimond edge polisher machine:




Acrylic diamond edge polisher machine is a specially used for smoothing acrylic & plastic sheet equipment. Its use of diamond cutting tools to carry out the exact amount reached acrylic mirror effect. Replace the traditional polishing processes (such as: Cloth round burnished & fire polishing ). A machine to reduce conventional artificial 20 to 30 workers.

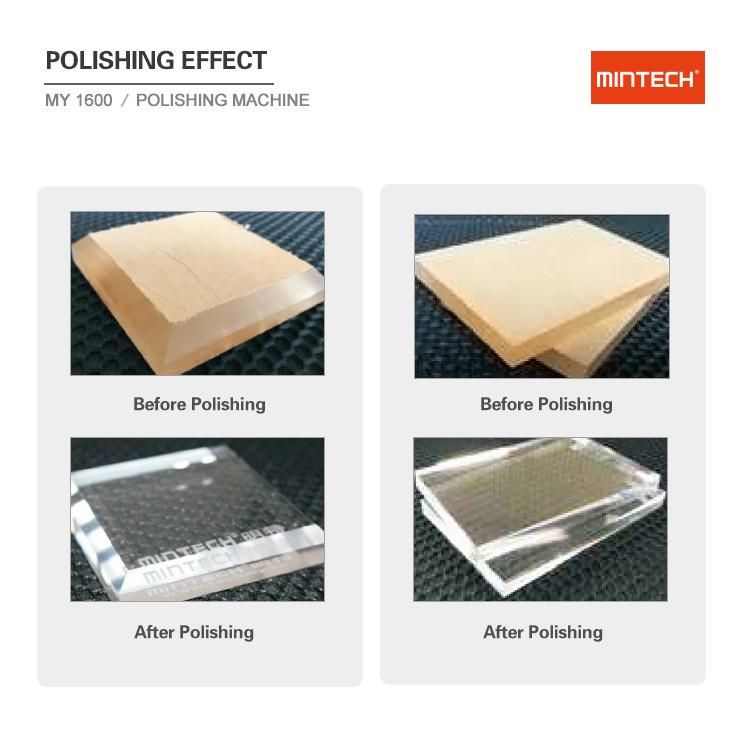

The finished surface is transparent and clean and better for straight, no dust and low wastage. It's applied to the fancy acrylic products, crystal articles and delicate process and product quality and relevance of the extremely high efficiency.

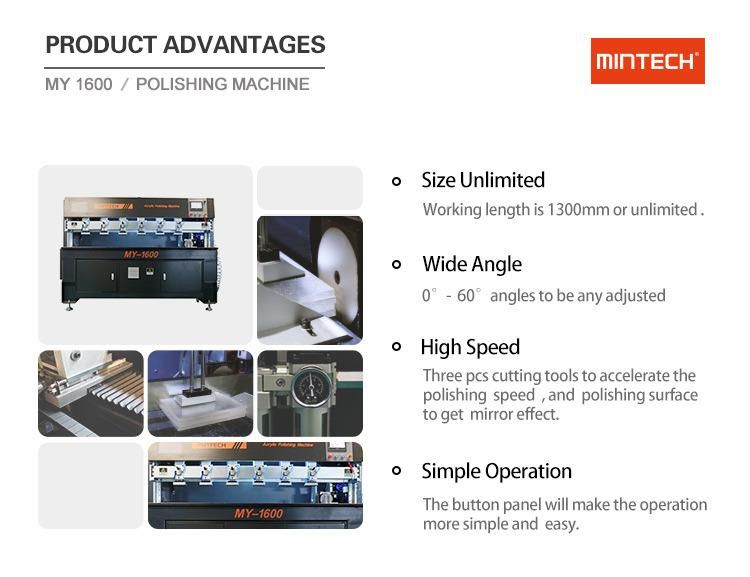

Advantages:
1) Working length is 1600mm or unlimited.
2)0° -60° Angles to be any adjusted.
3) Three pcs cutting tools to accelerate the polishing speed, and polishing surface to get mirror effect.
4) The button panel will make the operation more simple and easy.
5) Product guarantee: One year for the machine except cutting tools. If the machine works 8 hours a day, about 5 months need to be resharpen.

Machine size	2500*1400*1700mm	Complete power	≤ 5.5KW
Power supply	AC50-60HZ 3PH 380V/220V	Complete weight	3000KG
Principal axis speed	0-9000R/min	The polishing depth	0-1mm
Polishing Speed	0-1000mm/min	polishing manner	Principal axis feeding
Polishing angle	0-60°	Work area	1600*120mm
Compressed air	0.6-0.8Mpa	Size of dust mouth	100mm
