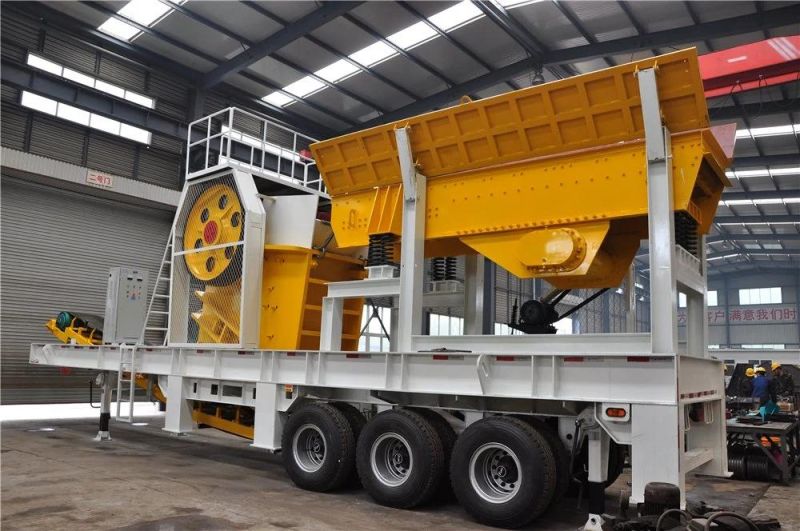

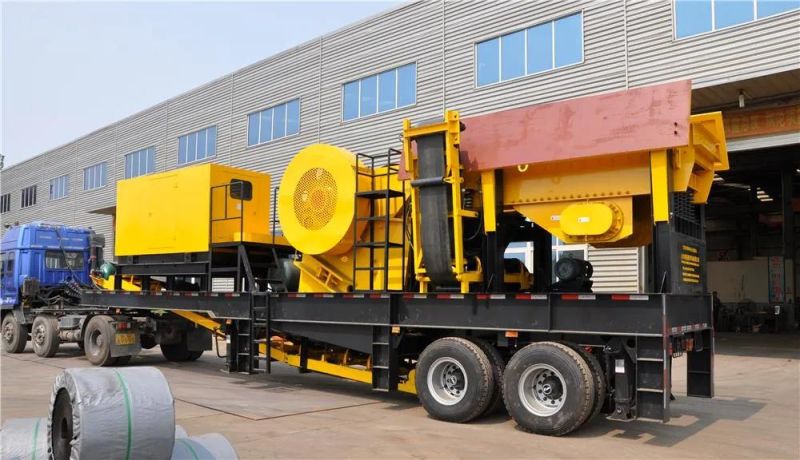

Yz Series Mobile Jaw Crusher Plant
Linyi Gaotong Import & Export Co., Ltd.- After-sales Service：Online Technical Support
- Warranty：Online Technical Support
- Type：Jaw Crusher
- Application：Stone Industry
- Drive：Electric
- Crushing Style：Extruding & Milling
Base Info
- Model NO.：GTMC001
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Coarse Crusher
- Finished Surface：Outer Surface Process
- Certification：ISO
- Condition：New
- Color：Yellow
- Name：Jaw Crusher
- Series：PE Series
- Structure：Casting,Welding Body
- Spare Parts：Available
- Function：Primary,Secondary Jaw Crusher
- Quality：High Level
- Certificate：ISO
- Transport Package：by Container or Loose Packing
- Specification：high manganese steel
- Trademark：GTCO
- Origin：China
- HS Code：847420900
- Production Capacity：2,Day
Description
Basic Info.
Model NO. GTMC001 Compressive Strength (For Crushing) >300MPA Crushing Degree Coarse Crusher Finished Surface Outer Surface Process Certification ISO Condition New Color Yellow Name Jaw Crusher Series PE Series Structure Casting/Welding Body Spare Parts Available Function Primary/Secondary Jaw Crusher Quality High Level Certificate ISO Transport Package by Container or Loose Packing Specification high manganese steel Trademark GTCO Origin China HS Code 847420900 Production Capacity 2/DayProduct Description
1.The product adopts world-class manufacturing method and the selection of the most high-end materials.
2.The bearing base adopts the integrated steel structure.
3.The broken cavity adopts the "V"-shaped structure, so that the actual feeding width is same as that of nominal line.
4.The broken cavity is deep and without dead zone, increasing the capacity and output feed.
5.Lubrication system is safe and reliable, with the convenience of replacement parts, and easy maintenance.
6.Low noise, less dust.
Specifications of Mobile Jaw Crusher Plant:
| Model | YZ938E69 | YZ1149E75 | YZ1349E90 |
| Length in transportation(mm) | 11900 | 13100 | 14600 |
| Width in transportation(mm) | 2550 | 2550 | 2950 |
| Height in transportation(mm) | 3650 | 4450 | 4500 |
| Max length(mm) | 12100 | 13300 | 14600 |
| Max width(mm) | 2900 | 2950 | 3300 |
| Max height(mm) | 4060 | 4810 | 5300 |
| Weight(T) | 36 | 57 | 83 |
| Tire Configuration | Double shaft-C | Double shaft-C | Double shaft-C |
| Model of jaw crusher | PE600×900 | PE750×1060 | PE900×1200 |
| Max feed size(mm) | 480 | 630 | 750 |
| Discharge range(mm) | 65~160 | 80~140 | 95~165 |
| Capacity(t/h) | 90~180 | 110~320 | 220~450 |
| Model of feeder | ZSW380*96 | ZSW490*110 | ZSW490*130 |
| Model of conveyor | B800×8.5M | B1000×9M | B1200×9.5M |
| Generator set(KW) | 180 | 220 | 250 |
