Automatic Fast Bridge Saw Stone Cutting Machine Marble Cutting Machine (HQ400-600-700)

Xiamen Aga Import and Export Co., Ltd.
  • After-sales Service：24 Hours on Line Services
  • Warranty：1 Year Warranty
  • Type：CNC Cutting Machine
  • Usage：Concrete Curb, Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：HQ400-600-700
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Blade Size：300-700 mm
  • Blade Tilting：0-45 Degrees
  • Table Size：3200*2000 mm
  • Table Tilting：0-85 Degrees
  • Table Rotating：0-360 Degrees
  • Max. Cut Size：3200*2000*230 mm
  • Spindle Motor：18.5kw 25 HP
  • Total Power：26.5kw
  • Weight：7500kg
  • Transport Package：Plastic Packing
  • Specification：6*5.7*3.5m
  • Trademark：AGA
  • Origin：Xiamen, China
  • HS Code：84641010
  • Production Capacity：200 Sets,Month

Description

ModelHQ700HQ600HQ400 Laser Guide DeviceYesYesYesBlade tilting 45° (Angle Cut Mitered)YesN/AN/ATable Rotation 90°YesYesYesTable Rotation 0-360°
(stopping at each 45°)YesOptionalOptionalTable tilting 0 - 85°YesYesYesPower Of Spindle Motor18.5kw / 25 HP18.5kw / 25 HP15kw / 20 HPMax Length of Cutting: (Table Size)3200 x 2000mm 126"x78"3200 x 2000mm 126"x78"3200 x 2000mm
126"x78"Max Thick of Cutting:230 mm 9"180 mm 7"110 mm 4"Steel Walls IncludedYesOptionalOptional


Stone cutting machine marble cutting machine introduction:
Automatic Fast Bridge Saw Stone Cutting Machine Marble Cutting Machine (HQ400-600-700)Automatic Fast Bridge Saw Stone Cutting Machine Marble Cutting Machine (HQ400-600-700)

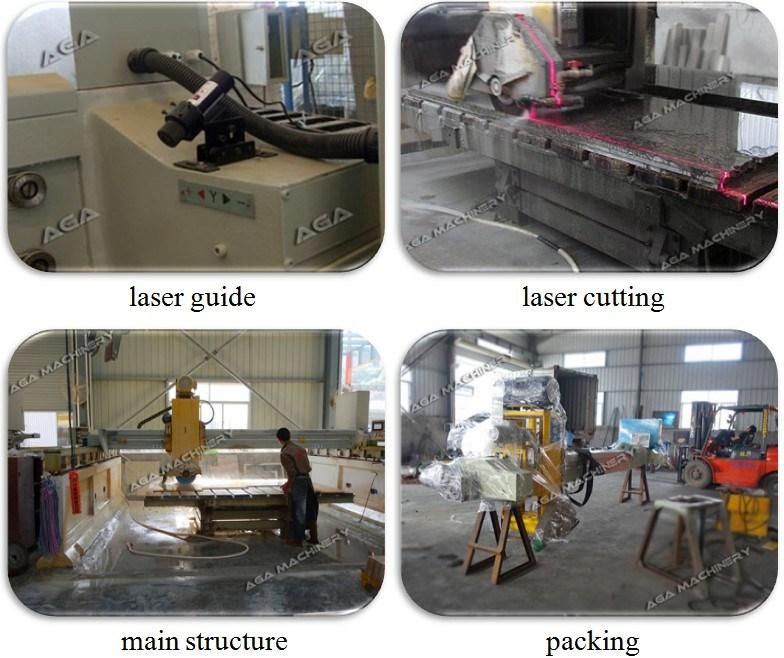

This bridge saw machine/stone cutting machine/marble cutting machine is made with strong cast iron and stainless steel for protection. Touch screen operation is simple and Laser guide shows the cutting position that makes the cutting easier.

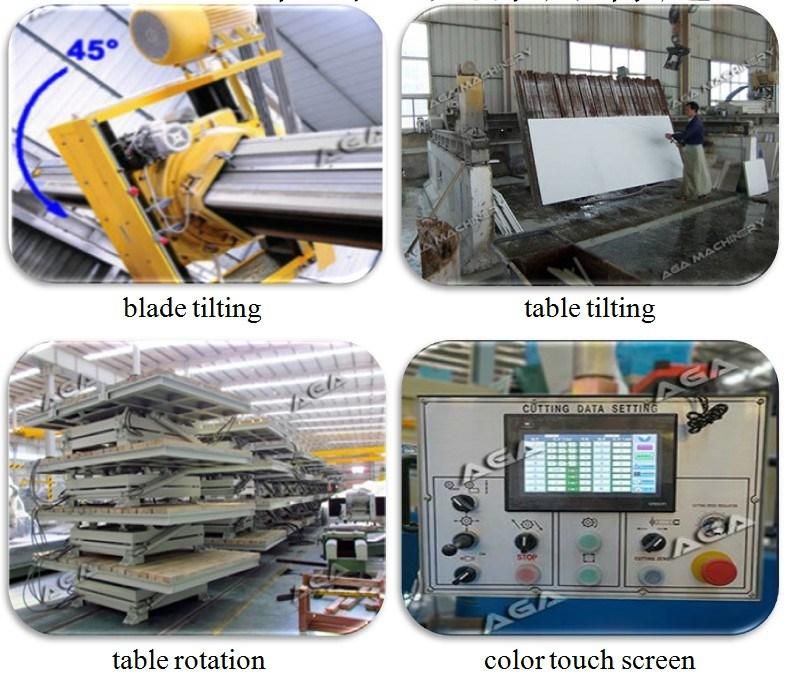

The machine head can tilt 45 degrees for miter cut, optional for model HQ700.
Functional machine table can tilt 0-85 degrees to load big slabs easily and it can rotate 0-90 degrees or 0-360 degrees to change the cutting position automatically.



FAQ:
1) Payment:
T/T in advance, we accept 30% deposit and 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
