• Model NO.：ZDCM-400
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
• Max Processing Size：3200*2000*80
• Dimension of Worktable：3200*2000
• Main Motor：15kw
• Outline Dimension：5000*3100*2600
• Water Consumption：3m3,H
• Advantage：Multi Function with Good Quality and Price
• Key Words：Stone Machine
• Warranty Time：One Year
• Transport Package：Plastic Package, Suitable for Sea Transportation
• Specification：8000*6500*4100mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. ZDCM-400 Automation Automatic Cutting Ability High Speed Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Max Processing Size 3200*2000*80 Dimension of Worktable 3200*2000 Main Motor 15kw Outline Dimension 5000*3100*2600 Water Consumption 3m3/H Advantage Multi Function with Good Quality and Price Key Words Stone Machine Warranty Time One Year Transport Package Plastic Package, Suitable for Sea Transportation Specification 8000*6500*4100mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

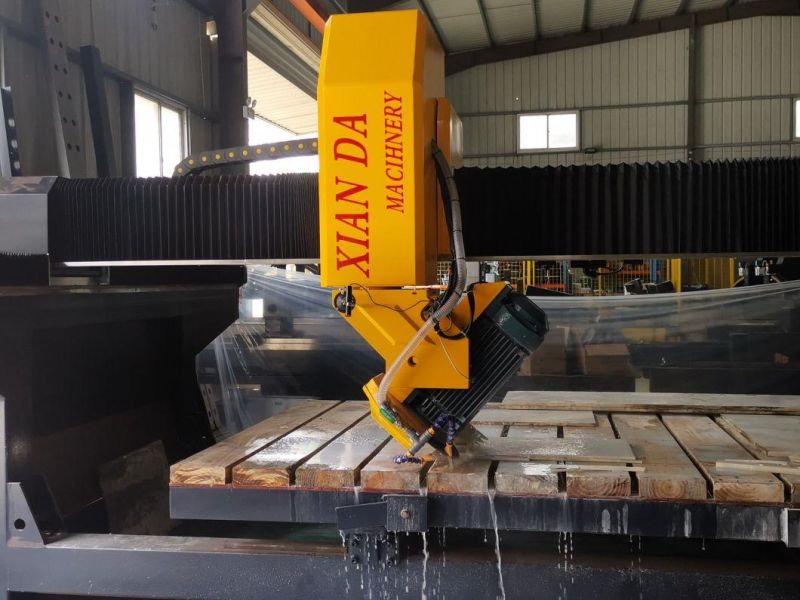

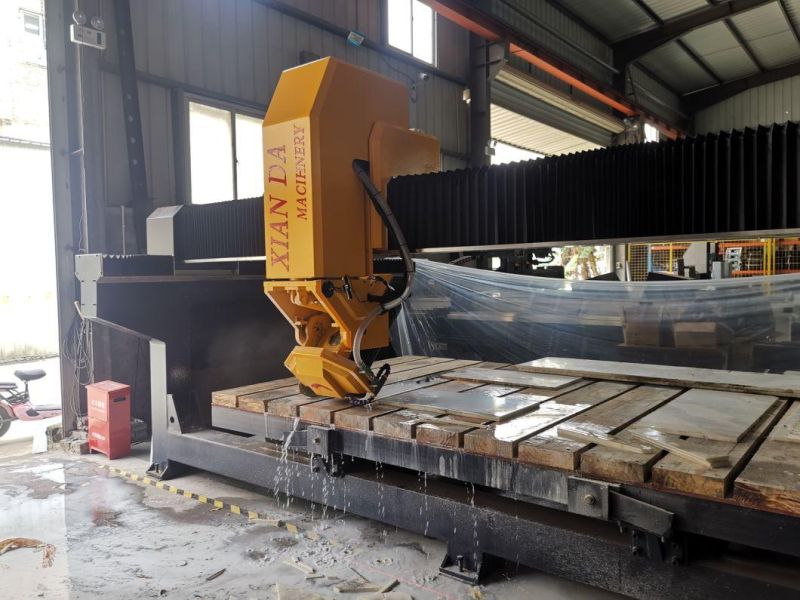

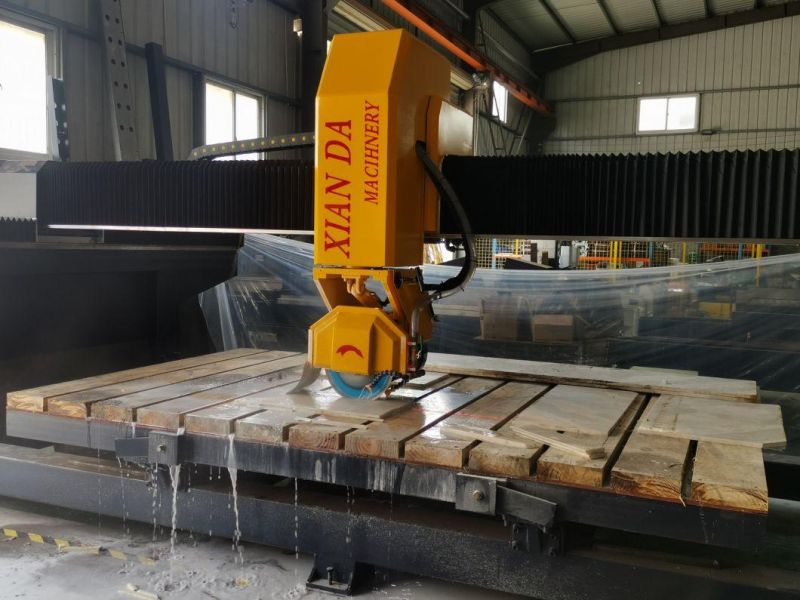

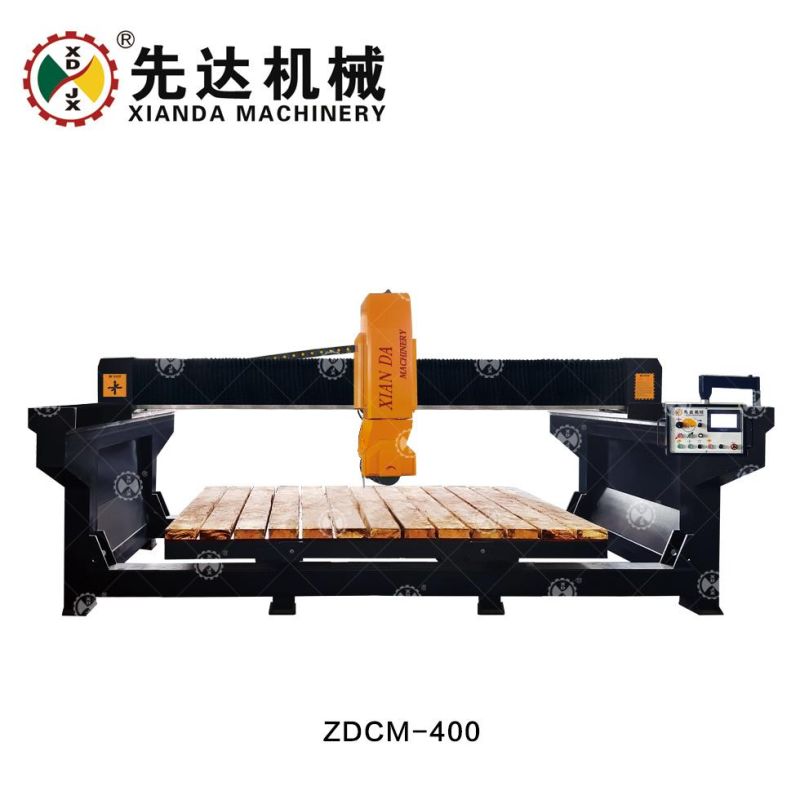

Monoblock bridge cutting machine for marble and sintered stone ZDCM-400



Product Description

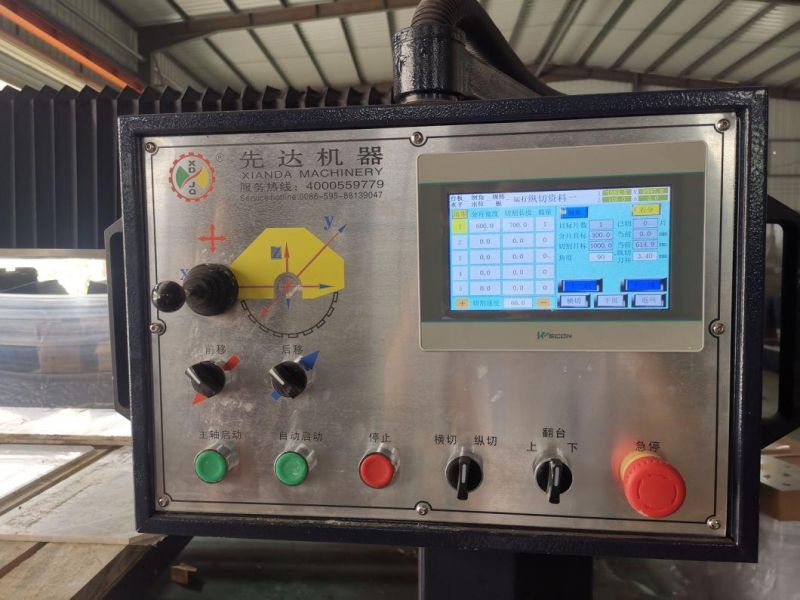

Fujian Xianda ZDCM-400 , adopts Microcomputer system , easy to operate ; Intergrate structure , easy to install , The frame of the machine body is processed and formed by CNC gantry milling center at one time,using high-precision linear guide sliders,grinding-grade ball screws , and high-end servo systems.It greatly improves the stability , processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large-scale plate processing with high presicion requirements and high value.


Technical Parameter

Parameter	Unit	ZDCM-400
Blade diameter	mm	300-400
Max processing size	mm	3200*2000*80
Dimension of worktable	mm	3200*2000
Main motor	kw	15
Outline dimension	mm	5000*3100*2600
Water consumption	m3/h	3

Xianda machinery



Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.


Exhibition


Our Product



Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone cutting machine, wire saw machine, stone profiling.


Certification



Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.

Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

Delivery time

Based on order quantity, normally three weeks against payment.

Warranty

All the machines have one year warranty.

After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

FAQ

Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
    2.Confirm the price,lead time, logo, payment term etc.
    3.Xianda sales send the Proforma Invoice with seal.
    4.Customers make the payment as a deposit and send us Bank receipt
    5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the    estimated time

Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery

Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years

Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service

Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.
