• Model NO.：ERS1325
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Warranty：3 Years
• Controller：DSP,Nc Studio,Mach3,Syntec
• Motor：Stepper ,Servo
• Rail：Taiwan PMI,Hiwin,Shac
• Software：Artcam,Jdpaint
• Table：T Slot Table and Water Tank
• Spindle Power：5.5kw
• Spindle Brand：Hqd,CS
• Payment Item：30% in Advance, 70% Before Shipment
• Package：Water-Proof Film and Plywood
• Transport Package：Plywood
• Specification：1300*2500mm
• Trademark：Eastrise
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. ERS1325 Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Warranty 3 Years Controller DSP/Nc Studio/Mach3/Syntec Motor Stepper /Servo Rail Taiwan PMI/Hiwin/Shac Software Artcam/Jdpaint Table T Slot Table and Water Tank Spindle Power 5.5kw Spindle Brand Hqd/CS Payment Item 30% in Advance, 70% Before Shipment Package Water-Proof Film and Plywood Transport Package Plywood Specification 1300*2500mm Trademark Eastrise Origin Jinan, China HS Code 8465990000 Production Capacity 5000 Sets/Year

Product Description

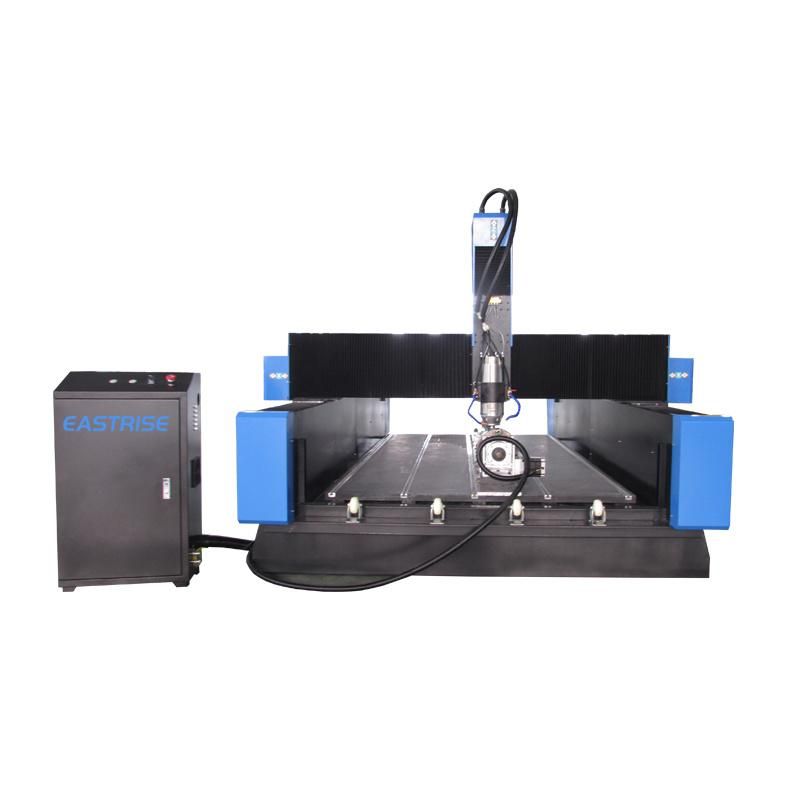

China Wholesale CNC Router Ers1325 CNC Carving Marble Granite Stone Machine

Application

This 3D Tombstone/Marble/Granite/Stone engraving cnc router machine adopts robust structure, powerful spindle motor, precise and efficient control system,coming with professional software. It is easy to install and operate.

Advantage

1.Seamless square steel tube welding for the whole machine, good rigidity, not easy to deformation, T type heavy
duty machine structure, good weight bearing capacity, high stability, can bearting the more than 1000kg materials.

2.Adpoting the Taiwan linear square guide rail, double row four columns, large loading capacity, sable operation,
higher precision.

3.Big powerful double motor and driver for Y-axis, stable moving for whole machine, fast speed, the traveling speed
can reach to 40m/min or more.

4.Big power spindle, greating cutting indensity, high efficiency, lowe noise.

5.The special designed Z-axis structure, increasing the stone relief precision effectively, making the ball screw
broken of Z-axis failure rate to the lowest.

6.Using the high precision rack and pinion transmission, higher precision, fast speed and powerful.

7.Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.

8.Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time,
getting the more better engraving effect.

9.Continuing working after the break point/power failure, lower the rejection rate.

10. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software,
2D/3D processing, more convenient to using.

Optional items

-  Servo motors (Taiwan Delta servo motor, Japan Yaskawa servo motors)

- 4th rotary axis, diameter 400mm, working length 1200mm, choose  HBS2206 863S70-1000 simple servo system

- Z axis height can be customized

Technical parameters

Working size	1300*2500mm 1500*3000mm
Max feeding height	400mm(Customized)
Max traveling speed	40m/min
Transmission	Rack and opinion
Software environment	WindowsXP/7/8/10
Spindle power	5.5KW(Optional)
Power without spindle	2KW
Voltage	220V/380V
Spindle speed	6000-24000rpm/min

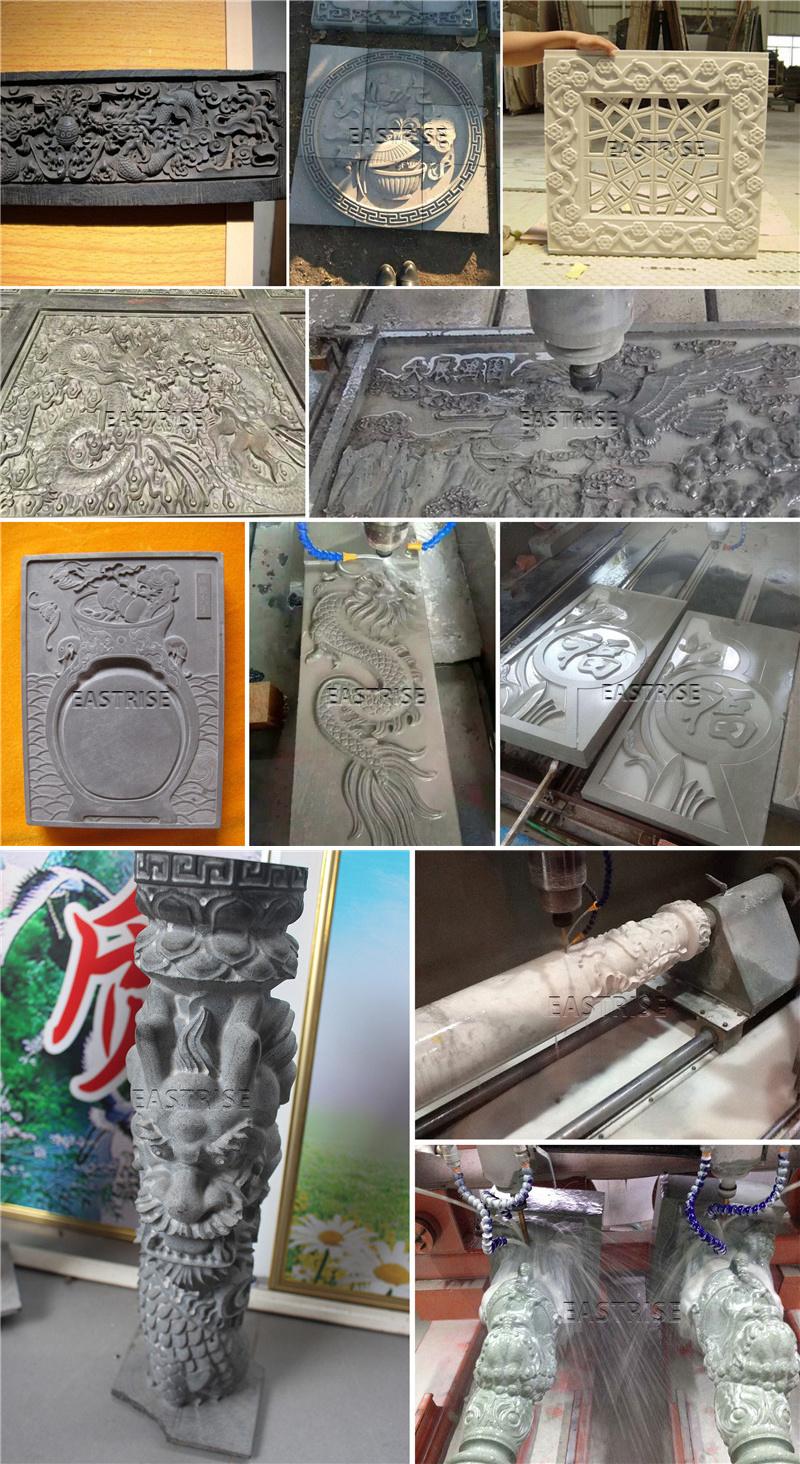

Machining

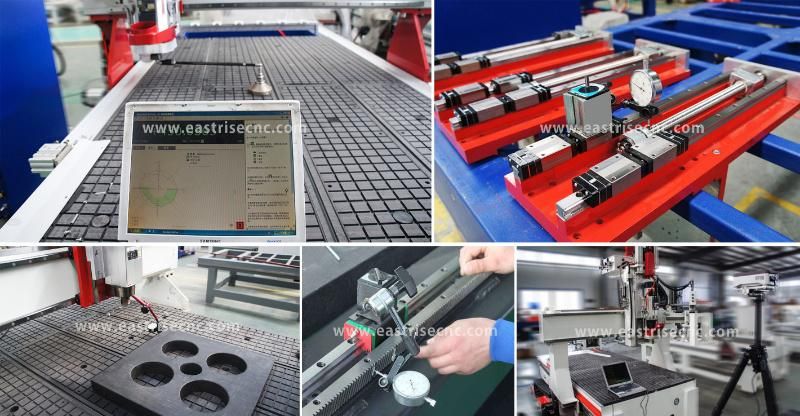

Testing

Exhibition

Technical Department

Certificates


FAQ

1.How long is your machine's warranty?

3 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.How about package of shipment?

Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
