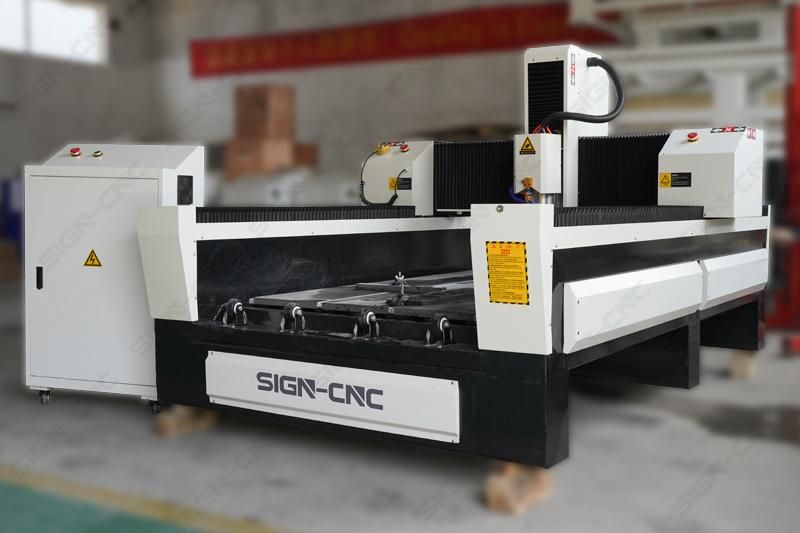

Heavy Stone Granite Marble CNC Router Engraving Machine
Jinan Sign CNC Equipment Co., Ltd.- After-sales Service：Suport
- Warranty：24 Month
- Function：Cutting, Line Engraving, Lettering
- Application Material：Marble
- Automation：Automatic
- Control：CNC
Base Info
- Model NO.：SIGN-9015
- Motor Power：High Power
- Engraving Head Speed Adjustability：Non-Adjustable
- Certification：CE
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Working Area：900*1500mm
- Command Code：G Code
- Control System：Ncstudio , Mach3 , DSP
- Voltage：380V
- Model of Driver：Leadshine
- Guide Rails：Hiwin
- Z- Axis Height：300mm
- Condition：New
- Oil Lubrication System：Manual

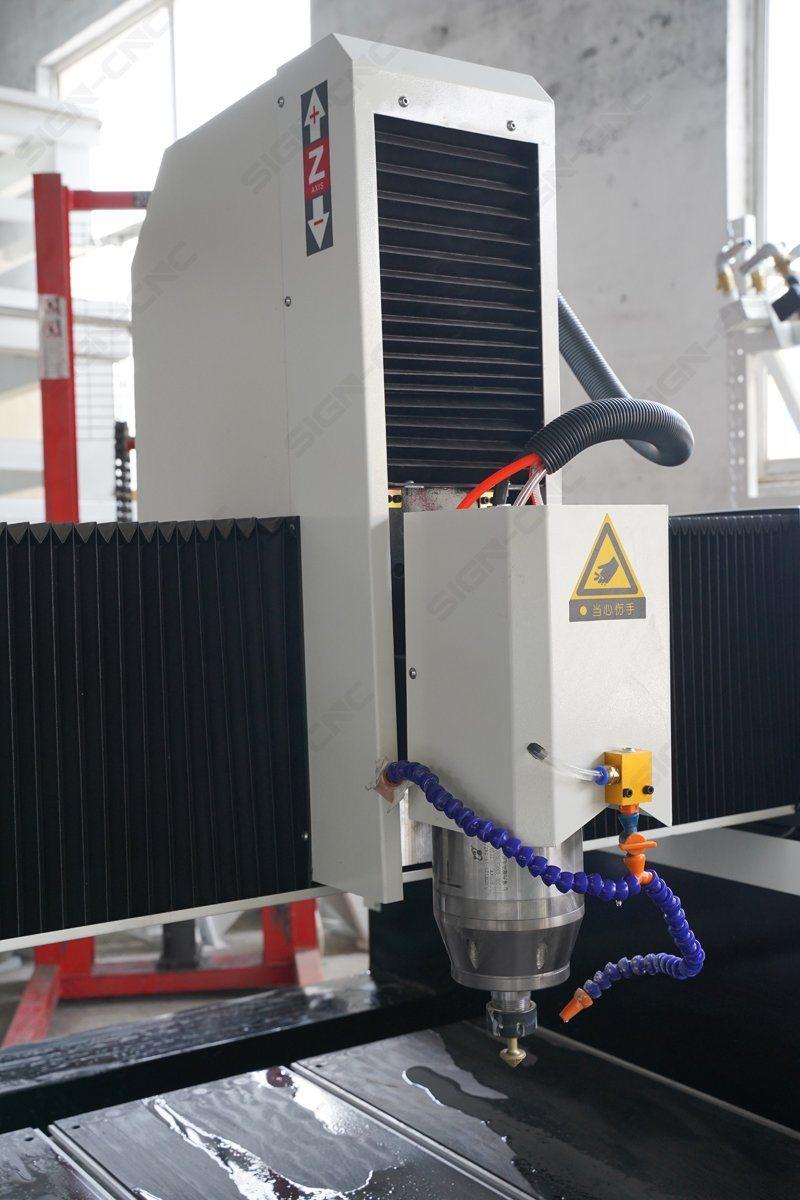

- Spindle：5.5kw Water Cooling Spindle
- Transport Package：Standard Export Wooden Box
- Specification：Heavy duty
- Trademark：SIGN CNC
- Origin：China
- HS Code：846599
- Production Capacity：300,Month
Description
Two year
Contain:
Option parts:
Samples:
Payment methods:
Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
FAQ
Contain:
| NO. | Mane | Features and use | Quantity |
| 1 | Frame of machine bed | T-type heavy duty frame | 1 set |
| 2 | Gantry | Whole casting | 1 set |

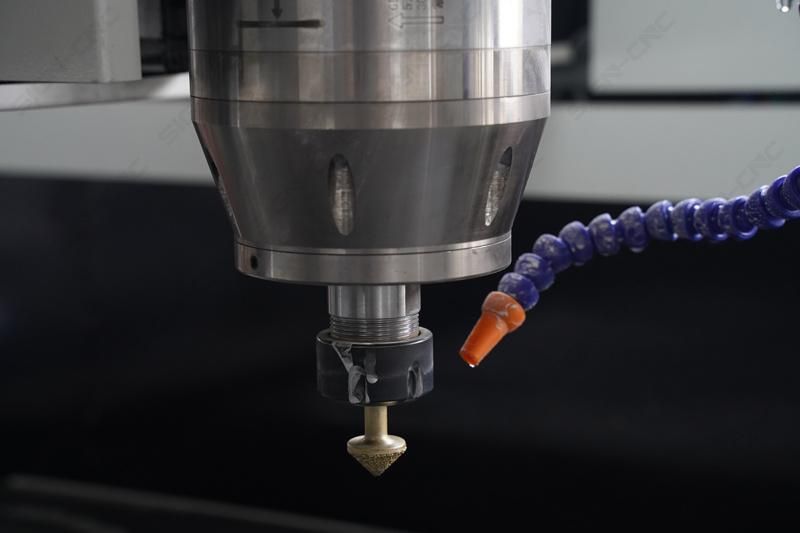

| 3 | Spindle | Water cooling type | 1 pcs |
| 4 | Inverter | The inverter is to adjust the motor speed to achieve environmental protection and energy saving. | 1 pcs |
| 5 | Motor | Stepper | 4 sets |
| 6 | Driver | Leadshine | 4 sets |
| 7 | NCstudio card | Control system | 1 set |

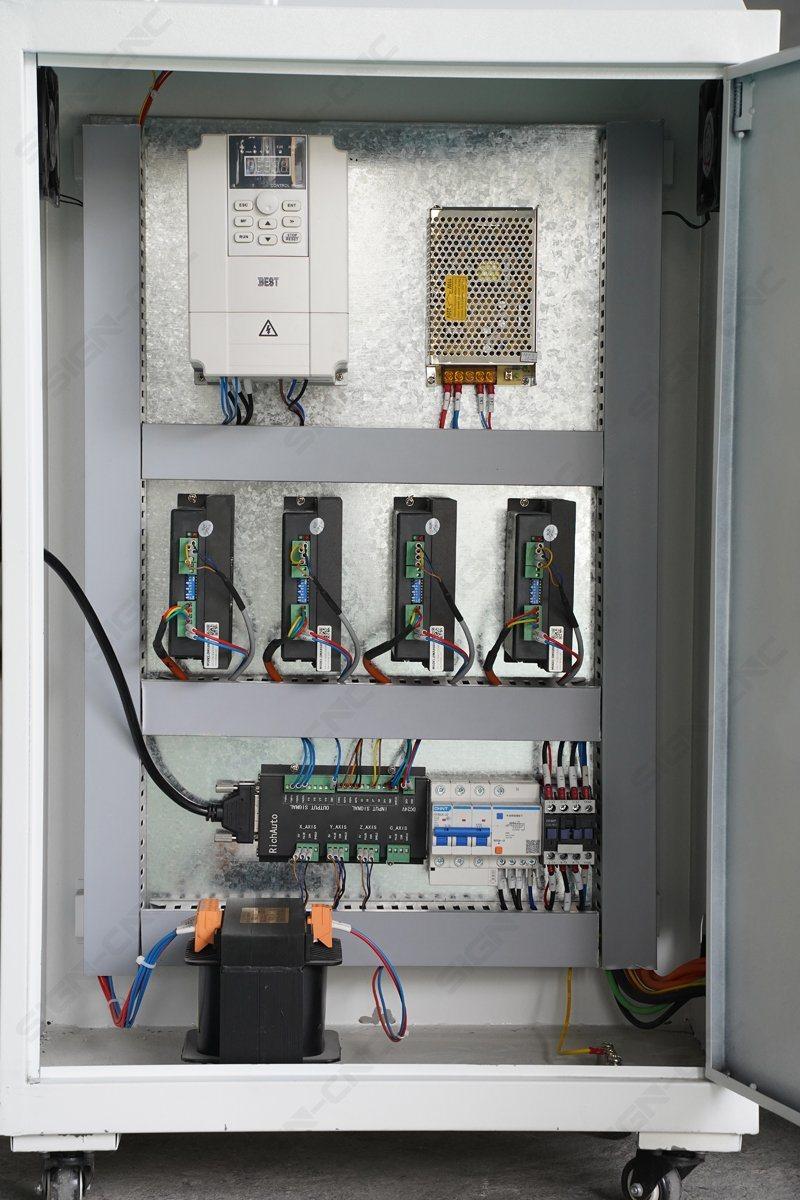

| 8 | Control cabinet | Computer cabinet and electrical component installation | 1 pcs |
| 9 | Guide rails | Hiwin square guide rails | 1 set |
| 10 | Rack gear | Helical rack and gear | 1 set |
| 11 | T-slot working table | Aluminum profiles | 1 set |
| 12 | Oil lubrication system | Lubrication the rails and rack gear | 1 pcs |
| 13 | Water pump | One cooling the spindle motor and other cooling the tool | 2 pcs |
| 14 | Collets | Hold the bit on the spindle | 4 pcs |
| 15 | Materials holder | Fixing material when engraving | 8 set |
| 16 | CD for Artcam software | Drawing engraving files | 1 set |
| 17 | Cutter | Used for engraving and cutting | 2 box |
| 18 | Connecting cables | Data Cable, Power Cable, etc. | 1 set |
| 19 | Wrench | Used for change the cutter or routine maintenance | 2 pcs |
| 20 | L-type screwdriver | Used for L-type screwdriver | 1 set |
| 21 | Tool box | Loading tools and some gadgets | 1 pcs |
Option parts:
- Rotary: Working for cylinder stone materials engraving, diameter different like small 100mm up to big 300 or 400mm dependent on your demand.
- Servo motor and driver: Famous Japanese Yaskawa or Panasonic servo motor and driver

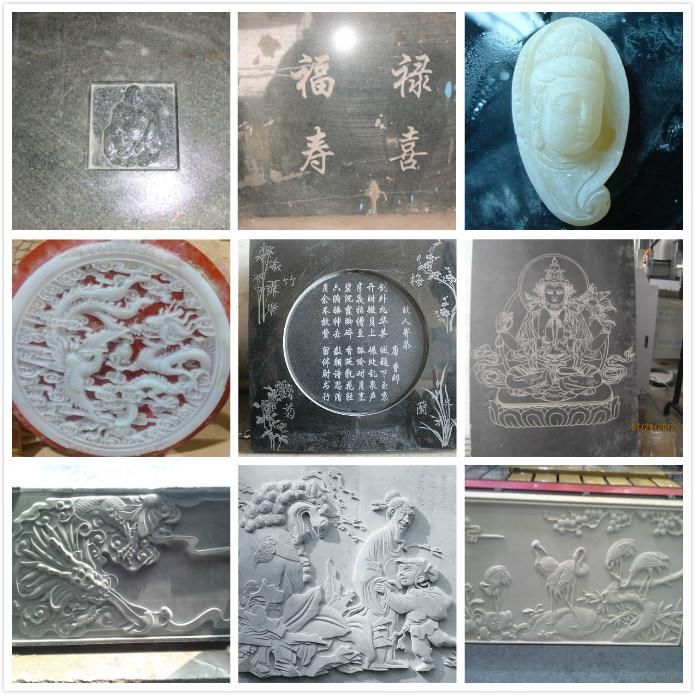

Samples:
Payment methods: | MOQ | 1 set |
| Port of loading | Qingdao, China. Other cities are ok |
| Time of delivery | 15 working days after receiving payment |
| Payment methods | T/T in advance, 50% deposit, the balance should be paid before shipping |
Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
FAQ- Q: Is this machine can load heavy stone?
- Q: What's type stone it can engraving?
