• Model NO.：HQ400-HQ600
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Size (L*W*H) Hq400：6*5*2.8m
• Size (L*W*H) Hq600：6*5*3m
• Size (L*W*H) Hq700：6*5.8*3.5m
• Power：15kw
• Blade Tilting：0-45 Degree for Miter Cut
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：90 Degree,360 Degree
• Stone Range：Marble Granite Quartz
• Transport Package：Plastic Water-Proof
• Specification：Weight: HQ400 6300kg; HQ600 6500kg; HQ700 7500kg
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：200sets,Month

Basic Info.

Model NO. HQ400-HQ600 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Size (L*W*H) Hq400 6*5*2.8m Size (L*W*H) Hq600 6*5*3m Size (L*W*H) Hq700 6*5.8*3.5m Power 15kw Blade Tilting 0-45 Degree for Miter Cut Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 90 Degree/360 Degree Stone Range Marble Granite Quartz Transport Package Plastic Water-Proof Specification Weight: HQ400 6300kg; HQ600 6500kg; HQ700 7500kg Trademark AGA Origin China HS Code 84641010 Production Capacity 200sets/Month

Product Description

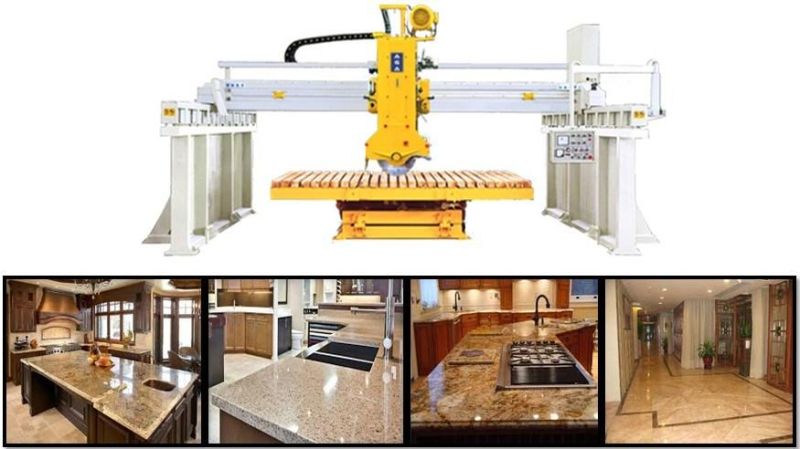

Automatic Stone Cutting Machine for Marble Granite Slabs and Tiles Cutting Model:HQ400-600
Automatic stone cutting machine suitable for cutting slabs into size, tiles, kitchen tops of granite, marble, quartz and other stone materials efficiently. An advanced machine with good price, customers paid and they got the machines and very happy.


Stone cutting machine/marble cutting machine/slab cutting machine specification:

Model	HQ600	HQ400
Blade tilting 45° (Angle Cut Mitered)	N/A	N/A
Table Rotation 90°	Yes	Yes
Table Rotation 0-360°  (stopping at each 45°)	Optional	Optional
Table tilting 0 - 85°	Yes	Yes
Power Of Spindle Motor	18.5kw / 25 HP	15kw / 20 HP
Max Length of Cutting: (Table Size)	3200 x 2000mm / 126"x78"	3200 x 2000mm / 126"x78"
Max Thick of Cutting:	180 mm 7"	110 mm 4"
Steel Walls Included	Optional	Optional

Stone cutting machine/marble cutting machine/slab cutting machine introduction:
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
1. Robust machine comes with strong steel stand frame. Optional.
2. Machine microcomputer control and works automatically by program.
3. The blade goes left and right, up and down, the bridge beam moves forward and backward.
4. Togethering with ultra-high precision rotary encoder positioning and infrared device.
5. Dustproof design of the slide track ensures the precise guide movement & long lifespan
6. The worktable can tilt & rotate in wide-angle for special processing
7. Table tilts up to 85 degree to load the big slabs easily and it also rotates 0-360 degree to change the cutting position.

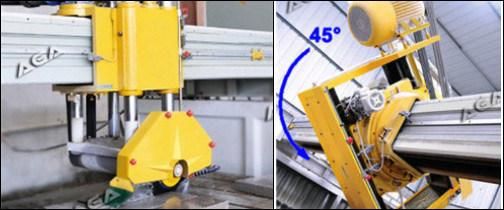

8. Machine head tilting 45 degree for miter cutting is optional.

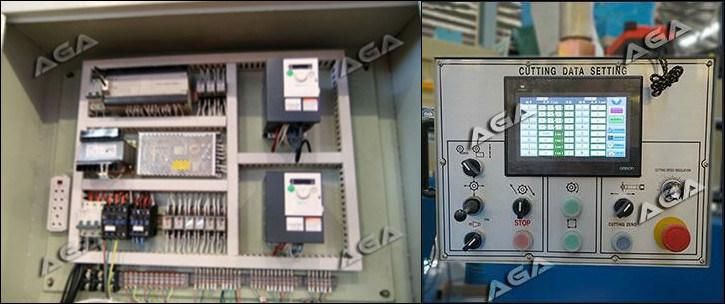

9. Touch-sensitive operating system, friendly human-machine interface design.
10. PLC control system, programmable, fully automatic & smooth feeding.
11. Precise movement of head in X, Y, Z directions by rack & gear.
12. Electric parts of international brand adopted, a reliability guaranteed.
13. The crossbeam is made of strong cast iron to avoid distortion in the long run.
14. The guide rail is oil-impregnated and protected from water and dust.
15. Electric parts of  international good brand adopted, reliability guaranteed.

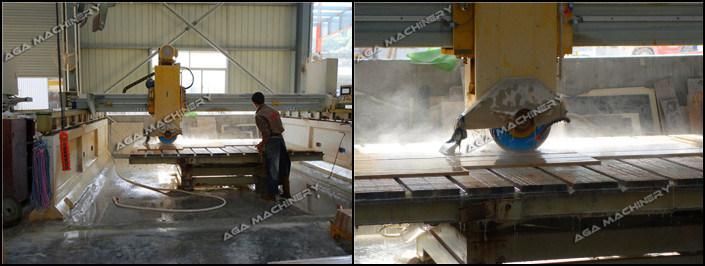

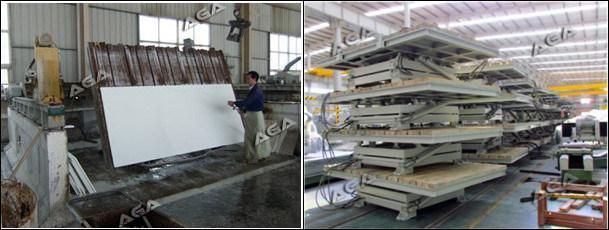

Stone cutting machine/marble cutting machine/slab cutting machine pictures:





Key words:
Stone cutting machine, granite cutting machine, marble cutting machine, stone bridge saw, bridge saw, bridge cutting machine, bridge cutter, slab cutting machine, stone saw, granite saw, marble saw, stone sawing machine, slab saw, tiles cutting machine, tiltes cutter, cnc machine, cnc cutting machine, etc.


FAQs:
1) Payment:
T/T in advance, 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

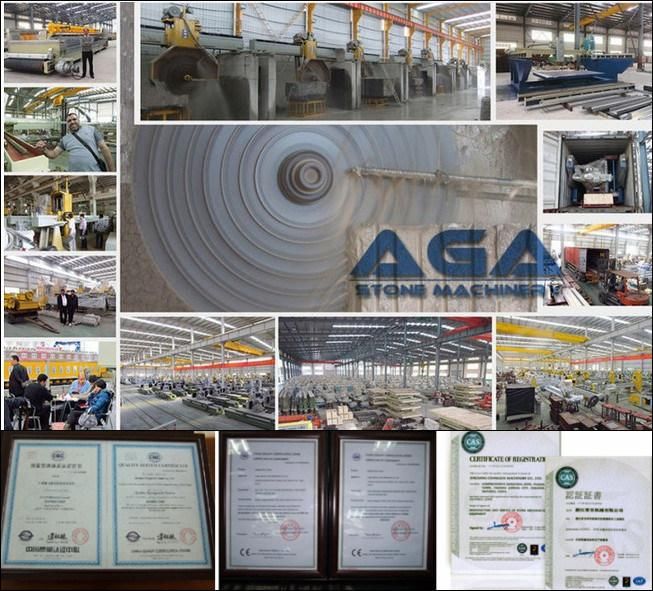

AGA Machinery:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A, Canada, Europe, Mid East, Egypt, India, etc.
