• Cutting Ability：High Speed
• Control：Stone Cutting
• Main Motor Power：55kw
• Walking Motor Power：1.5kw
• Wire Saw Speed：0-40m,S
• Transport Package：Wooden Packing,Pallet Packing
• Specification：2156mm*1468mm*1620mm
• Trademark：LEILI
• Origin：China
• HS Code：84641020
• Production Capacity：500 Set,Year

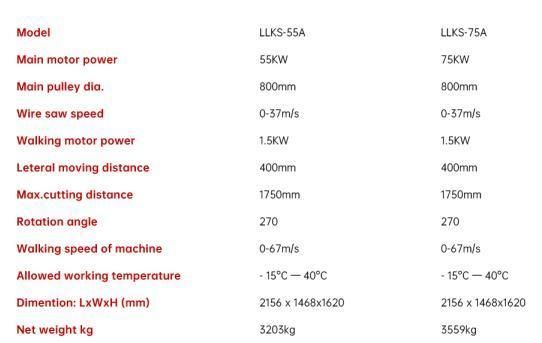

Basic Info.

Cutting Ability High Speed Control Stone Cutting Main Motor Power 55kw Walking Motor Power 1.5kw Wire Saw Speed 0-40m/S Transport Package Wooden Packing/Pallet Packing Specification 2156mm*1468mm*1620mm Trademark LEILI Origin China HS Code 84641020 Production Capacity 500 Set/Year

Product Description

Features

Double frequency converters and PLC ensure auutomaticlly adjustment of moving speed, in order to keep the wire be
in the best wcrking condition

No need to distinguish or chang the power phase, the machine has over-load protection, lcking phose proteclion
and terminal limit protection..

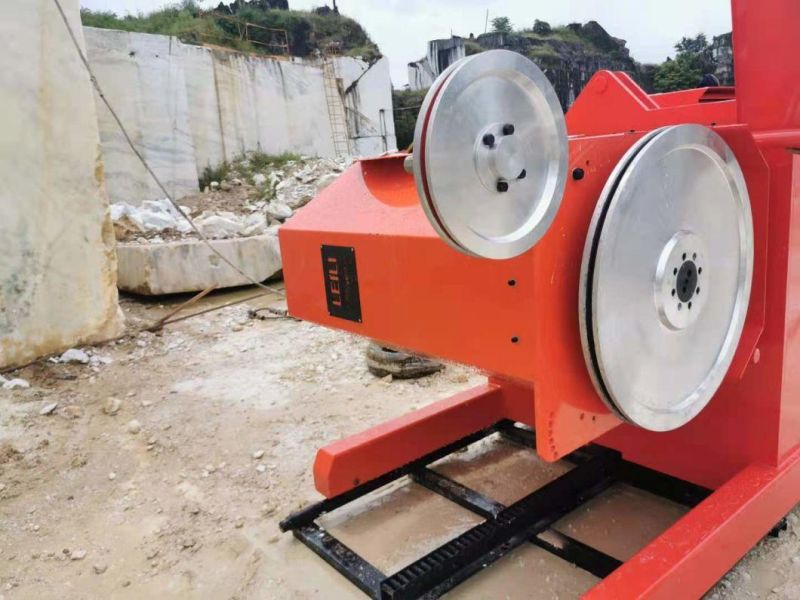

The lateral moving and the rotation of head are controlled by electric motor, Photoelectric pГroximity switch installed
on the head for limitation protection.

Control plotform display the key pararameters such as the main motor set current, rotation speed of main motor, etc.

Two operoting mode, monul and automatic, can be shifted. At the same time, remote control device can be selected,
which can be used for remote control operation ,and one person can operate multiple devices.

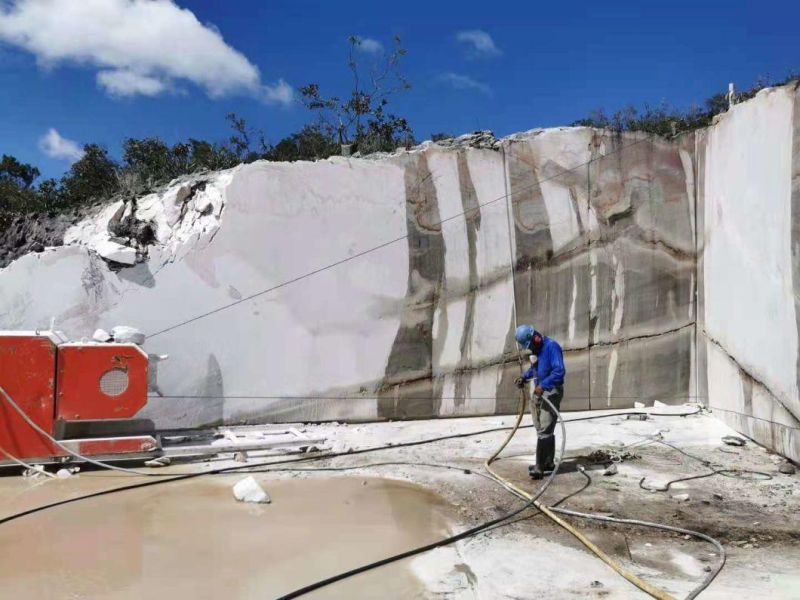

Application



Exhibition


Company
