• Model NO.：HLSQ-650
• Application：Stone Industry
• Source Voltage：220V,380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Guide Rail：Hiwin Linear Guide
• Touch Screen：Siemens
• Head Rotation：0-360 Degree
• Table Rotation：0-360 Degree
• Head Tilting：0-45 Degree
• Table Tilting：0-85 Degree
• Gearing：Rack Gear
• Color：Customized
• Transport Package：Polypropylene Plastics Packing
• Specification：5750(L)x3600(W)x3400(H)
• Trademark：Hualong
• Origin：Fujian, China
• Production Capacity：50 Pieces, Month
• Package size per unit product：575.00cm * 360.00cm * 340.00cm
• Gross weight per unit product：5400.000kg

Technical Data

Name

Unit

HLSQ-650

Diameter Of Saw Blade

mm

Φ400 - Φ650

Dimensions Of Working Platform

mm

3300x2000

Max. Cutting Thickness

mm

190

Max. Lifting Stroke

mm

300

Power Of Main Motor

kw

15

Power Of Lifiting Motor

kw

1.5

Power Of Main Motor

kw

15

Gross Power

kw

21.3

Water Consumption

m3/h

2

Dimensions (LxWxH)

mm

5750x3600x3400

Gross Weight

kg

5800

Function

(1) Slab cut to square size, batch processing

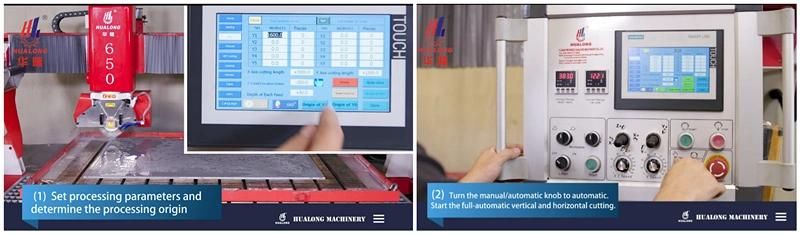

a. Set processing parameters and determine the processing origin.

b. Turn the manual/automatic knob to automatic. Start the full-automatic vertical and horizontal cutting.

(2) Variable square size or other polygonal cut to size processing

(3) Round desktop processing( through 0 ° to 360 ° rotating of the worktable)

(4) Profiling Cutting (Optional)

Application

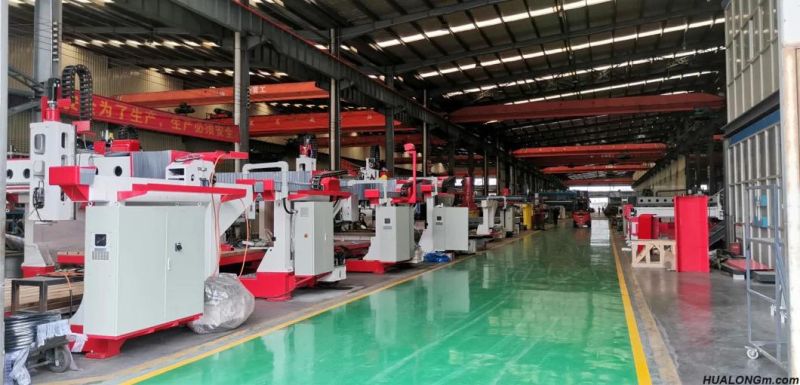

Workshop

Our Service

·All of our machine will be full-checked and tested by our quality control department before shipment.

·Lifetime technology maintenance in free

·Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months.

·Free training for installation, operation and maintaince.

·Technical support all working days.

·English version 'instruction books', "Operation Manual" will be offered.

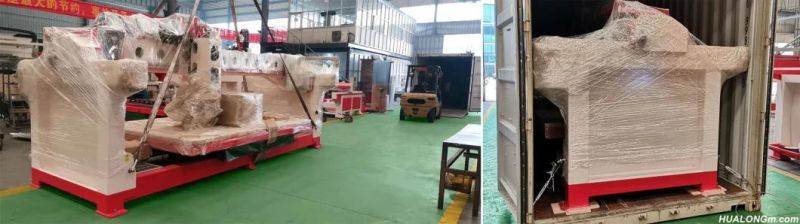

Packaging & Loading

1)All parts wrapped by waterproof PE film and/or air bubbles.

2)Spare and accessary parts of small size packed in plywood cartons.

3)With steel ropes to fix in container, anti-skid suitable for long distance shipment.

FAQ

Q1: Do You Offer Free Samples?

A1: Normally we don't offer free samples. But further solutions will be discussed respectively upon request.

Q2: Can You Supply Us Wearing Parts For The Bridge Cutting Machine?

A2: Sure, it is our duty.

Q3: How About The Delivery Time After Payment For The Order?

A3: Normally 25-45 days. It depends on the ordered models, quantity and our production duty engaged already.

Q4: What Service Can You Provide?

A4: Online technology support, engineers arranged to overseas for guiding machine installation training operation, debugging and maintenance.
