• Model NO.：DW3030 Mini
• Certification：CE
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Warranty：18 Months
• Working Size Optional：400X400mm, 360X360mm
• Spindle Power：1.5kw
• Machine Type：CNC Router
• Rotary：Optional
• OEM：Accepted
• Control Method：PCI Card or DSP
• Control System：Nc Studio
• Customization：Accepted
• Color：Can Be Customized
• Transport Package：Plywood Box, Free of Fumigation
• Specification：CE, FDA
• Trademark：Dwin Made In China
• Origin：Jinan City, Shandong Province
• HS Code：846599
• Production Capacity：150 Sets Per Month

Description
Parameter
X,Y,Z Working Area
400x400x120mm
Table Surface
Aluminum alloy
X, Z Structure
Ball Screw
Y Structure
Hiwin Rail Linear Bearings or  Ball Screw
Max.Rapid Travel Rate
8000mm/min
Max.Working Speed
6000mm/min
Spindle Power Motor
1.5Kw water cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Stepper system
Working Voltage
AC220V/50/60Hz/AC380V 50HZ
Command Language
G code
Operating System
DSP System (Option:NCstuido)
Interface
USB
Flash Memory
128M(U Disk)
Collet
ER16
X,Y Resolution
<0.01mm
Software Compatability
Type3 software, Ucancam software, (Option:Artcam software)
All parameters above subject to change without prior notice

Except for jade engraving, this Mini cnc router has other applications:
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table .
2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the metal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

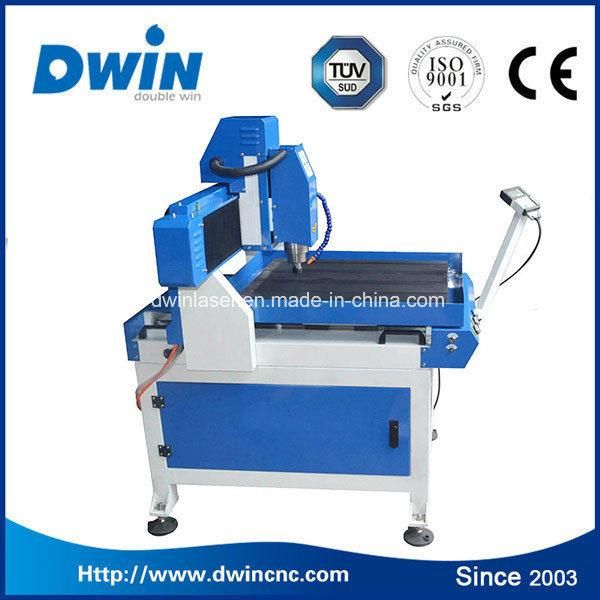

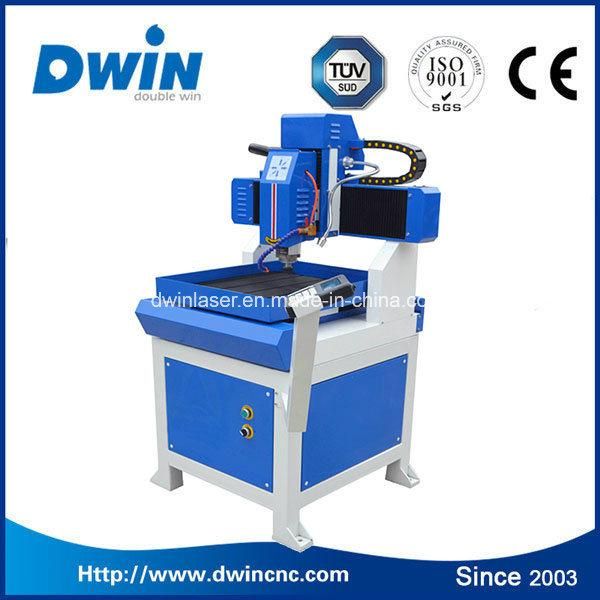

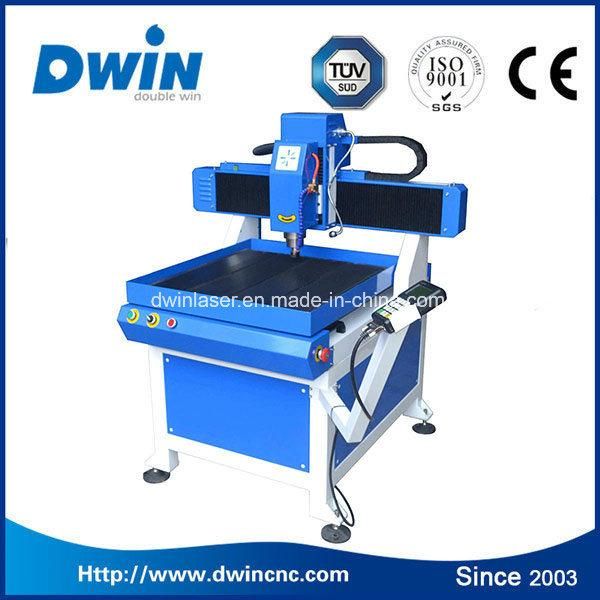

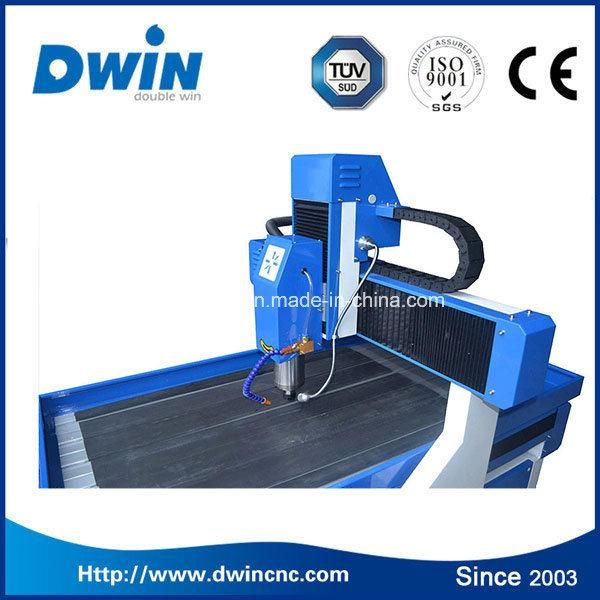

Machine details

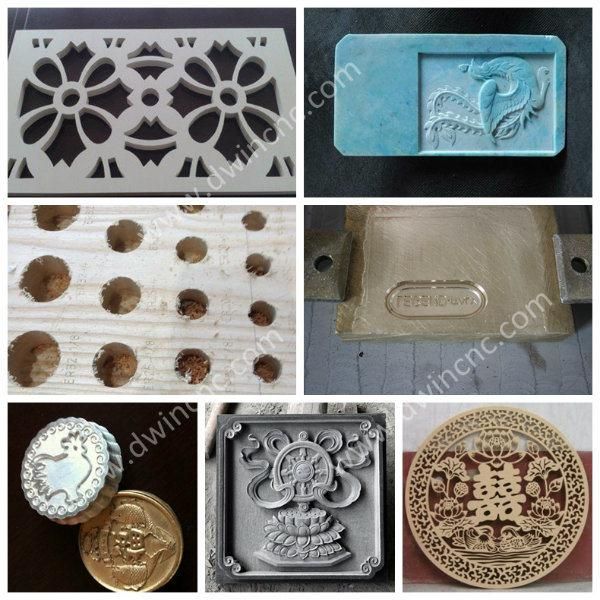

Samples
