• Model NO.：BD1325A
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API, Ce, ISO 9001, Patent Certification
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Stone Processing Industry, Tombstone Processing in
• Customized：Customized
• Process Usage：CNC Non-Conventional Machine Tools
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Condition：New
• Movement Method：5.5kw Air Cooling Spindle
• Configuration：5.5kw Air Cooling Spindle
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：1300*2500*300mm
• Trademark：Mars
• Origin：China
• HS Code：8464909000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1300*2500*450mmMachine Size3200*2100*1800mmWorking TableAluminum T-slot table protected with PVCMachine StructureThick steel welded, with aging treatmentMainControl SystemNC Studio 65CDrive MotorLeadshine driver motorSpindle Motor Power2*5.5KW water cooledSpindle speedAdjustable Rotational Speed with 0-24000 rpm/minInverter ZoncnOthersDrive SystemX/Y axis helical rack & pinion, Z axis Taiwan ball screwGuide RailTaiwan imported linear guide rail PMICooling SystemCirculating water-refluxing designOil SystemAutomatic Oil systemElectric ApplianceGermany SchneiderReducerPlanetary reducerWorking accuracy±0.08mmRe-positioning accuracy±0.05mmMax. Traveling Speed25 m/minMax.Working Speed15 m/minWater Sink/TankPowder-painting (Stainless steel is optional)Dictate FormatG-Code / HPGLWorking VoltageAC380V 3PH 50HZ

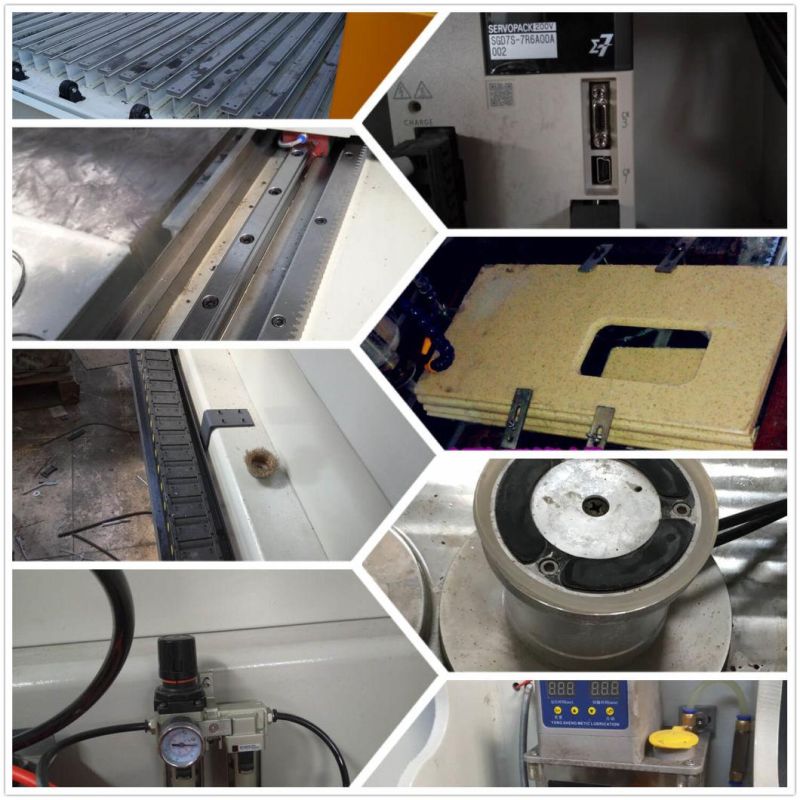

Accessories:


Performance Features:  1Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability. 2Famous brand big torque motor, low noise, large power, high efficiency. 3Adopt imported square linear guide rail, high speed, high precision, long life. 4Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength. 5Reasonable dustproof and waterproof design, fully protect the machine transmission parts. 6Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..
