3D Sculpture Stone Engraving Machine 4 Axis with Swing Head
Linyi Chaoda International CNC Technology Co., Ltd.- Function：Cutting, Line Engraving
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Non-Adjustable
Base Info
- Model NO.：JCS1225HL
- Certification：CE, ISO, CCC
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Marble Granite Stone
- Customized：Customized
- Type：3D Sculpture Stone Engraving Machine
- Working Size：1200*2500*500mm
- B Axis：± 90 Degree
- Control System：Ncstudio,Syntec
- Motor：Servo Motor
- Cooling System：Double Water Cooling
- Oil System：Yes
- Option：Rotary Device
- Transport Package：Wooden Case
- Specification：1200*2500*500mm
- Trademark：CHAODA
- Origin：Shandong, China
- HS Code：8465990000
- Production Capacity：100 Set,Month

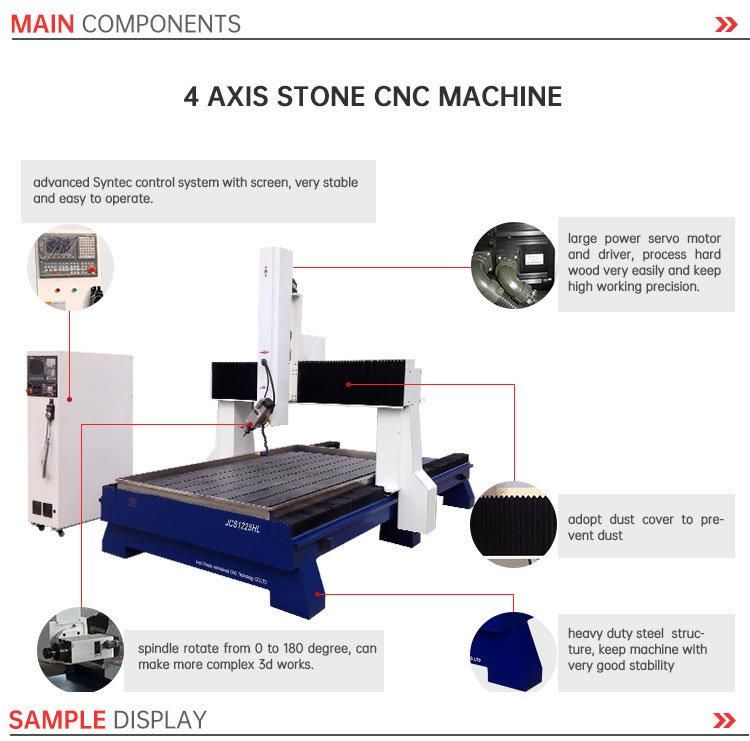

Description
Model No.
JCS1225HL
Lathe bed
Heavy duty steel structure
Working size
1200*2500*500mm ± 90 degree
Spindle power
5.5 /7.5 /11KW
Spindle rotating
12000 /18000 /24000rpm
Max travelling speed
30m/min
Max working speed
15m/min
Control system
Nsctudio with screen
Motor
Servo
Oil system
Automatic
Rotary device
option
Voltage
AC380v,3 phase,50/60HZ
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery oversea
