• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Intermediate Crusher
• Finished Surface：Outer Surface Process
• Certification：CE, ISO
• Condition：New
• Color：Yellow
• Name：Impact Crusher
• Feed Opening Size：590X1040mm
• Power：75-90kw
• Rotot Specification：R1000*1050
• Overall Dimension：2703*2033*2136
• Max Feedsize：Less 100mm
• Transport Package：Standard Export Package
• Specification：PF-1010
• Trademark：No
• Origin：Shandong, China
• HS Code：8474209000
• Production Capacity：100set,Month

Basic Info.

Compressive Strength (For Crushing) >300MPA Crushing Degree Intermediate Crusher Finished Surface Outer Surface Process Certification CE, ISO Condition New Color Yellow Name Impact Crusher Feed Opening Size 590X1040mm Power 75-90kw Rotot Specification R1000*1050 Overall Dimension 2703*2033*2136 Max Feedsize Less 100mm Transport Package Standard Export Package Specification PF-1010 Trademark No Origin Shandong, China HS Code 8474209000 Production Capacity 100set/Month

Product Description

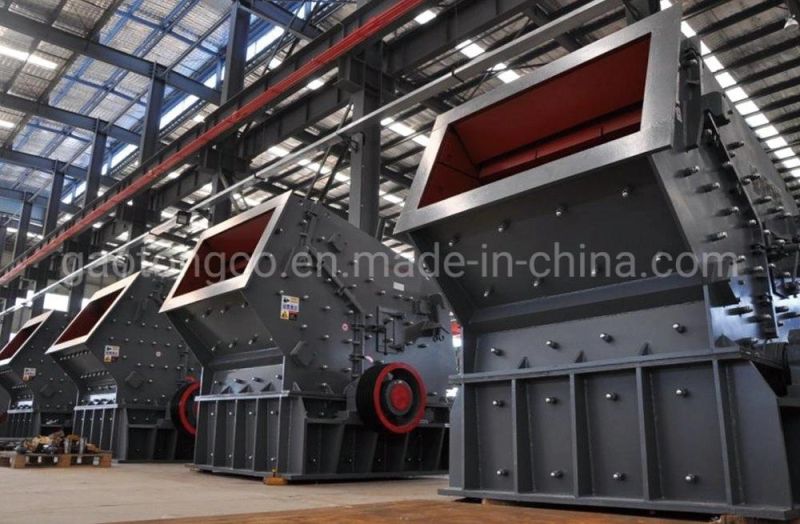

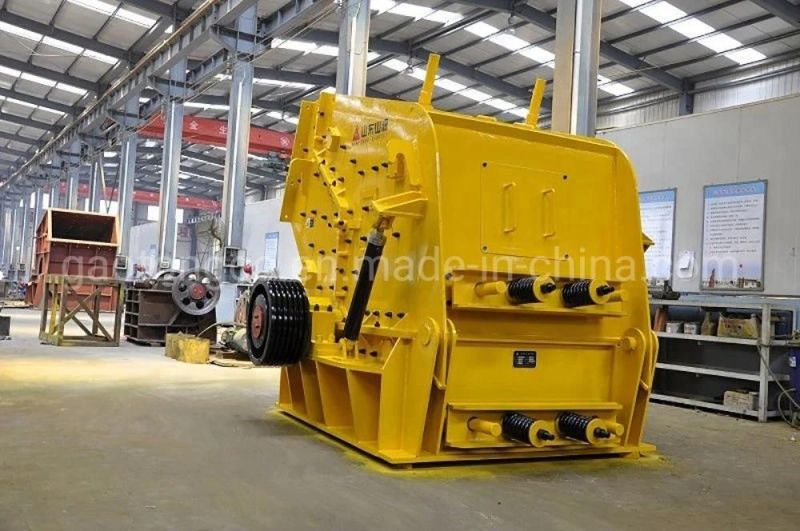

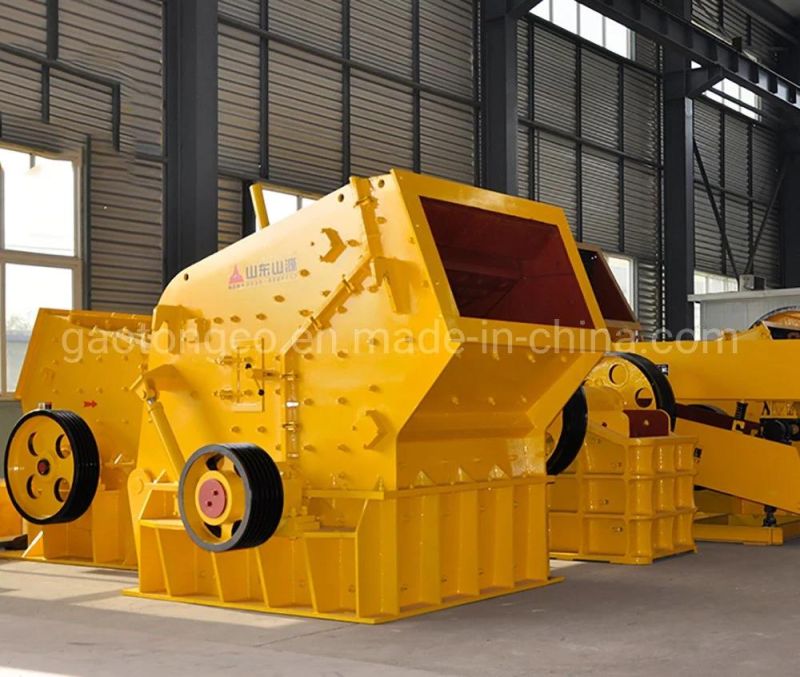

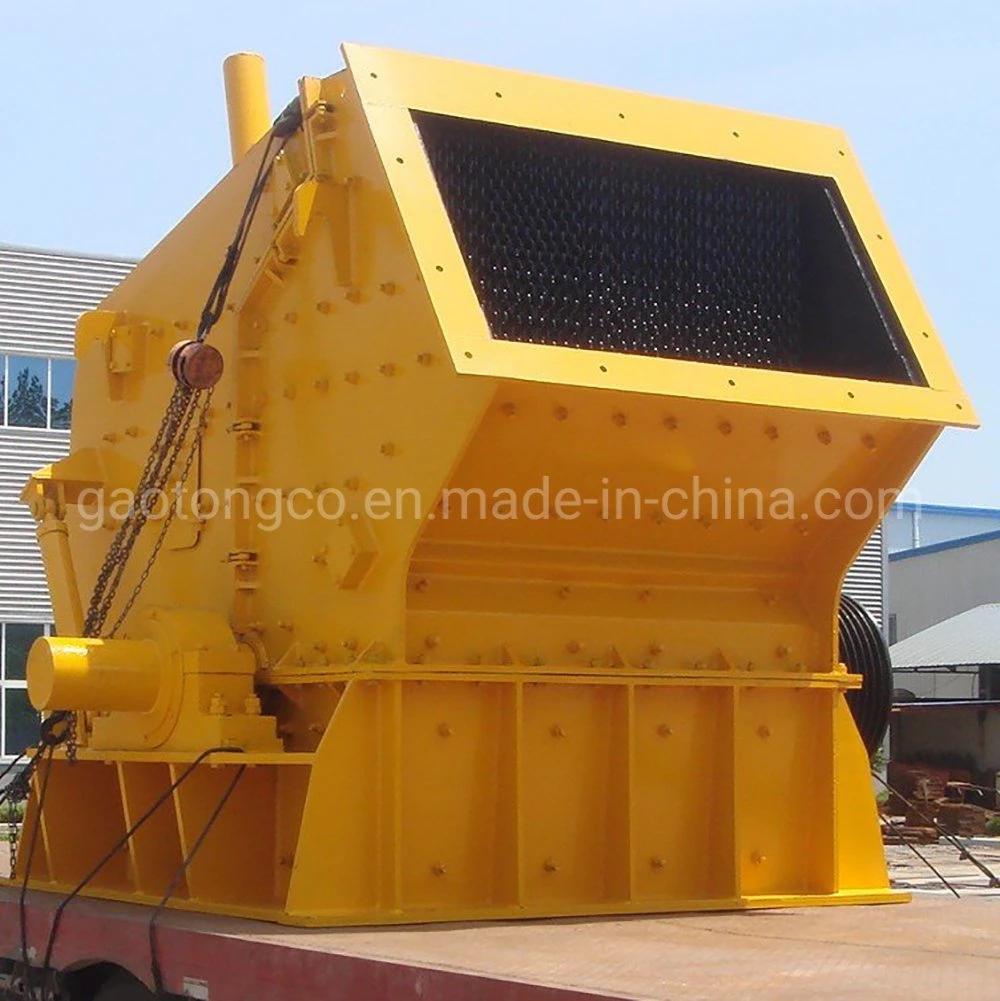

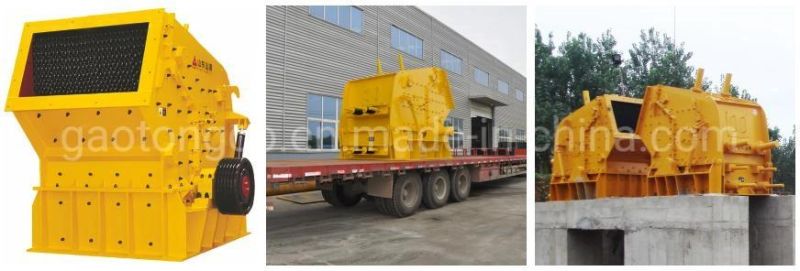

 PF Impact Crusher

Operation Principle of Impact Crushers:
This crusher machine is crushing equipment used for breaking materials by a crushing. The device takes the rotor to do high-speed rotatory movement under the lead of the motor; when the materials entered the functional section of plate hammer, they experiment plate hammer's high-speed crushing and are throwed constantly to the reaction device installed on the rotor , then spring back to the functional section of plate hammer from the back board, and then are crushed again; the materials from big to small in the shredding breach to be broken repeatedly. Until the materials are broken to the demanded grain size, discharged from the bottom of the machine.
Performance Features:
It is the latest impact crusher, which combines breaking and shaping together; it has the features of being high efficiency, low-consumption, good discharge grain shape. Compared with other reaction breaker, it can reduce the energy consumption by 40%, the quality of the aggregate needle flake can be reduced by more than 80%.
Applicability:
Widely applied to all kinds of materials crushing, processing and shaping, such as basalt, granite, cobble stone, limestone, etc.
Specifications:

Model	Feed Opening Size(mm)	Max. Feed Size (mm)	Model of Rotor	Capacity (t/h)	Motor power (KW)	Overall Dimension(mm)	Weight(t)
PF1007	400×730	≤70	Φ1000×700	37-45	55-75	2400×1558×2136	8.9
PF1010	590×1040	≤100	Φ1000×1050	50-90	75-90	2703×2033×2136	12.8
PF1210	755×1040	≤120	Φ1250×1050	60-130	110-132	3545×2352×2640	13.8
PF1214	755×1040	≤140	Φ1250×1400	70-180	132-160	3545×2462×2640	18.6
PF1315	855×1600	≤160	Φ1320×1500	90-250	180-220	3591×3068×2975	28.3
PF1320	855×2100	≤180	Φ1320×2000	120-350	280-315	3591×3568×2975	36.5
PF1515	900×1600	≤200	Φ1500×1500	220-280	280-315	3791×3068×3270	41.8

PF Series Impact Crusher

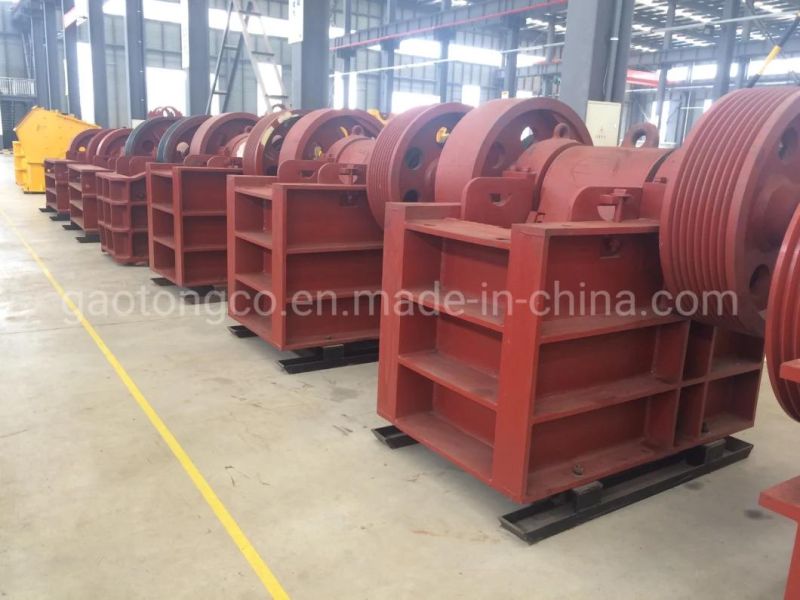

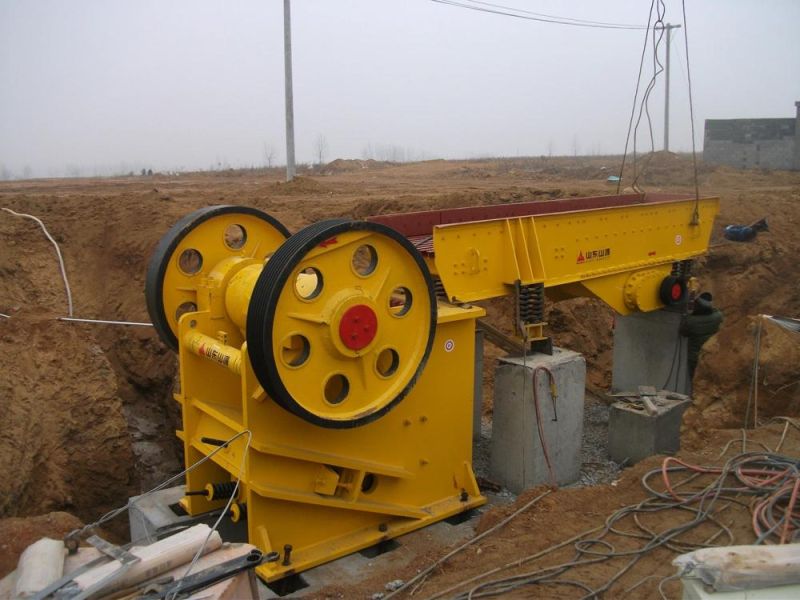

PE Series Jaw Crusher

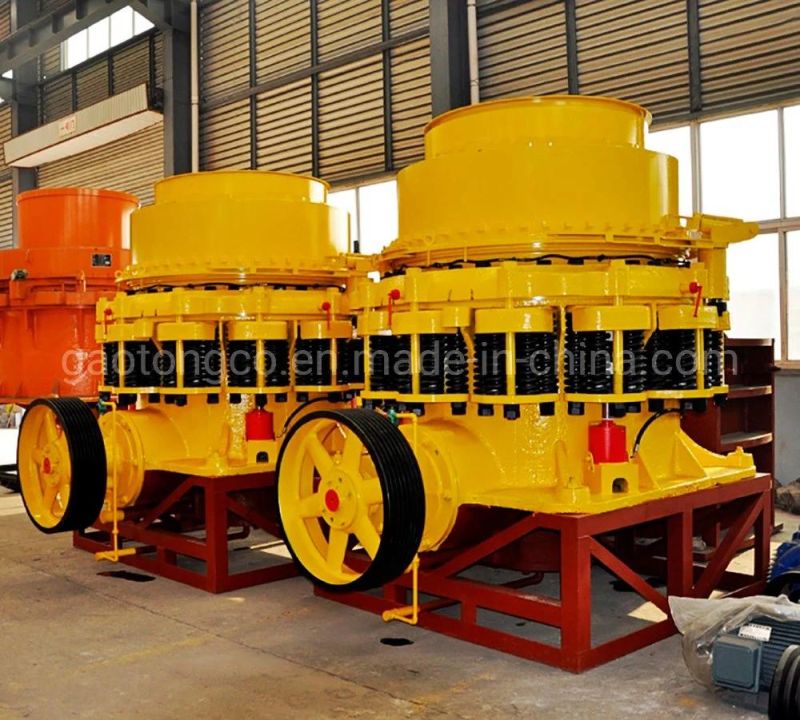

CS Series Cone Crusher

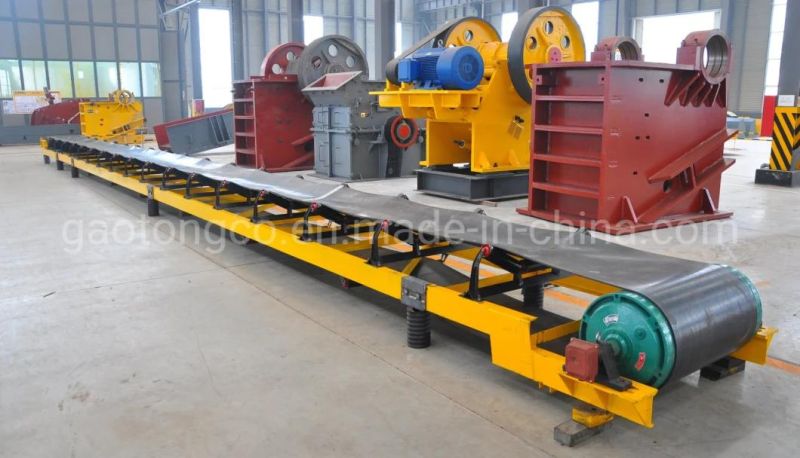

Conveyor

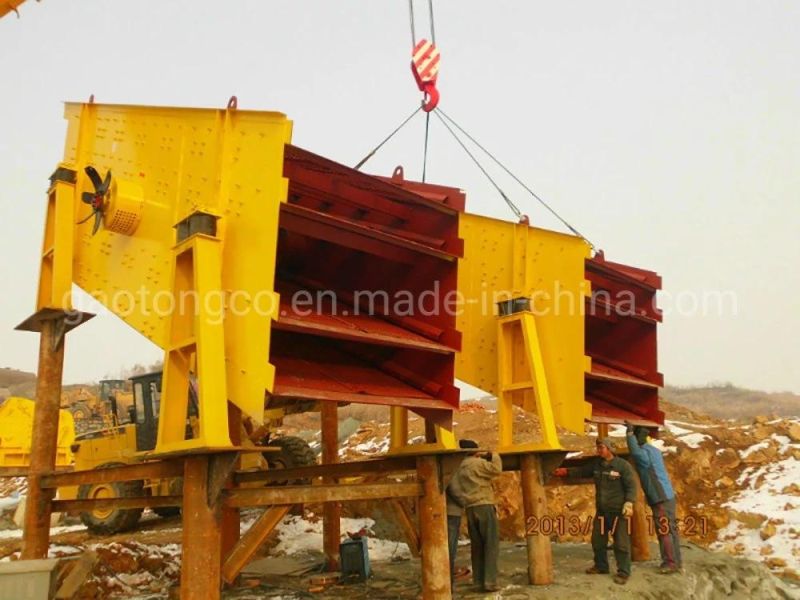

YK Series Circular Vibrating Screen
