• Model NO.：TSY-KXJ220
• Automation：Automatic
• Cutting Ability：High Speed
• Control：Inverter Control
• Certification：CE
• Transport Package：Wooden Box Packing
• Specification：TSY-KXJ2200
• Trademark：SKYSTONE GROUP
• Origin：Fujian, China
• HS Code：8464109000
• Production Capacity：100unit,Year

Basic Info.

Model NO. TSY-KXJ220 Automation Automatic Cutting Ability High Speed Control Inverter Control Certification CE Transport Package Wooden Box Packing Specification TSY-KXJ2200 Trademark SKYSTONE GROUP Origin Fujian, China HS Code 8464109000 Production Capacity 100unit/Year

Product Description

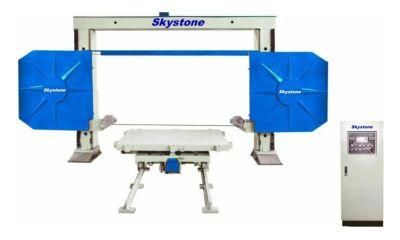

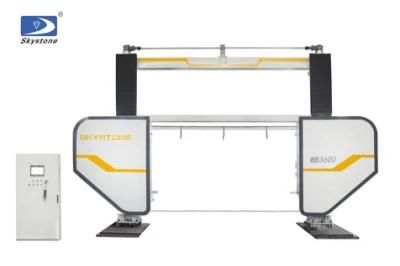

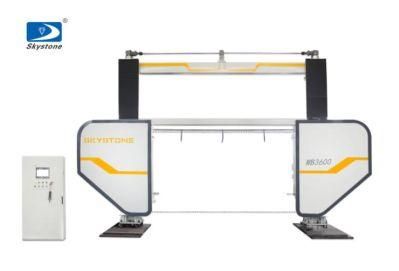

The machine adopts stable structure, including top beam, two vertical columns, rectangular box, hydraulic take-up block, two large flywheels. On the left side is a large drive flywheel and hydraulic tensioner. The hydraulic tensioner controls the tension of the diamond wire or loosens it while maintaining the tension of the diamond wire. The right side controls the flywheel and the main motor, the driven flywheel is controlled by the main motor. The linear speed of the diamond wire ranges from 0-40m / s and is controlled by an inverter. The machine can cut various types of granite and marble.





Item	Unit	Parameter
Quantity of wire	PC	1
Diameter of wire	mm	Φ8.3-φ11
Wire Length	m	21.25
Max Cutting Size (L x W x H)	mm	3600 x 2000 x 2100
Line Speed	m/s	0-40
Tension	Kg	210-250
Cooling Water	m3/h	4
Machine Size	m(L*W*H)	9.8 x 6.8 x 5.8
Machine weight	t	12
Power of Main Motor	KW	15
Total Power	KW	20
Guide wheel diameter:	mm	Φ300
Voltage:	V/HZ	380V 50hz (Accordingly)
