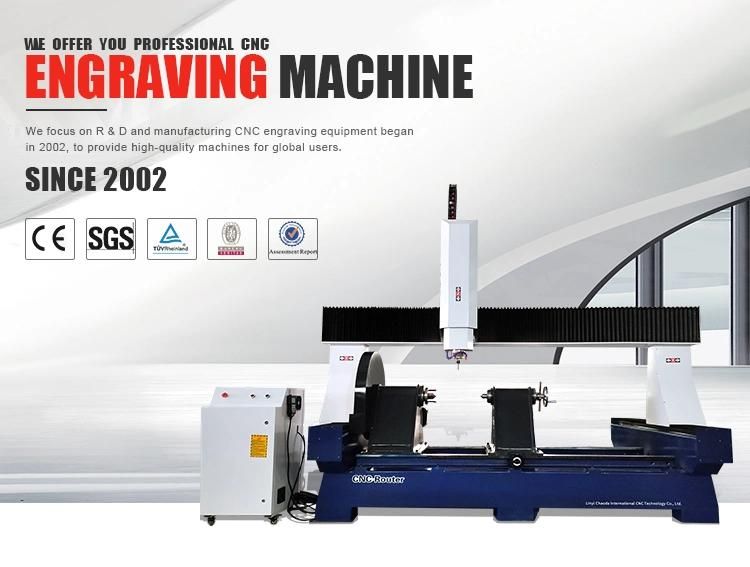

China Manufacturer CNC Stone Cutting Router Machine
Linyi Chaoda International CNC Technology Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble, Granite,Stone,Wood
- Automation：Semi-automatic
- Control：CNC
- Motor Power：Middle Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：JCS9012R
- Certification：CE, BV, TUV, SGS
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Type：CNC Stone Cutting Router Machine
- Working Size：900mm Diameter, 1200mm Length
- Spindle Power：5.5 ,7.5kw
- Control System：DSP,Ncstudio
- Motor：Stepper
- Cooling System：Double Water Cooling
- Oil System：Yes
- Option 1：Saw Blade
- Option 2：Polishing Pad
- Transport Package：Protected by Film and Fastened with Metal Wires
- Specification：customized
- Trademark：CHAODA
- Origin：China
Description
Basic Info.
Model NO. JCS9012R Certification CE, BV, TUV, SGS Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Type CNC Stone Cutting Router Machine Working Size 900mm Diameter, 1200mm Length Spindle Power 5.5 /7.5kw Control System DSP/Ncstudio Motor Stepper Cooling System Double Water Cooling Oil System Yes Option 1 Saw Blade Option 2 Polishing Pad Transport Package Protected by Film and Fastened with Metal Wires Specification customized Trademark CHAODA Origin ChinaProduct Description
china manufacturer cnc stone cutting router machine

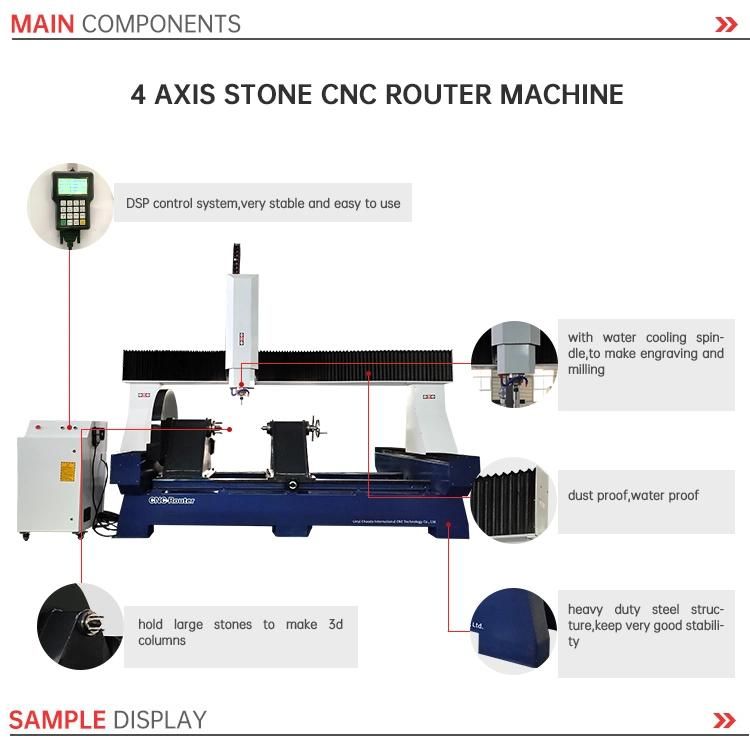

- Heavy duty steel structure, keep machine with very good stability.
- Adopt good quality machine parts,to make machine with high performance and durability.

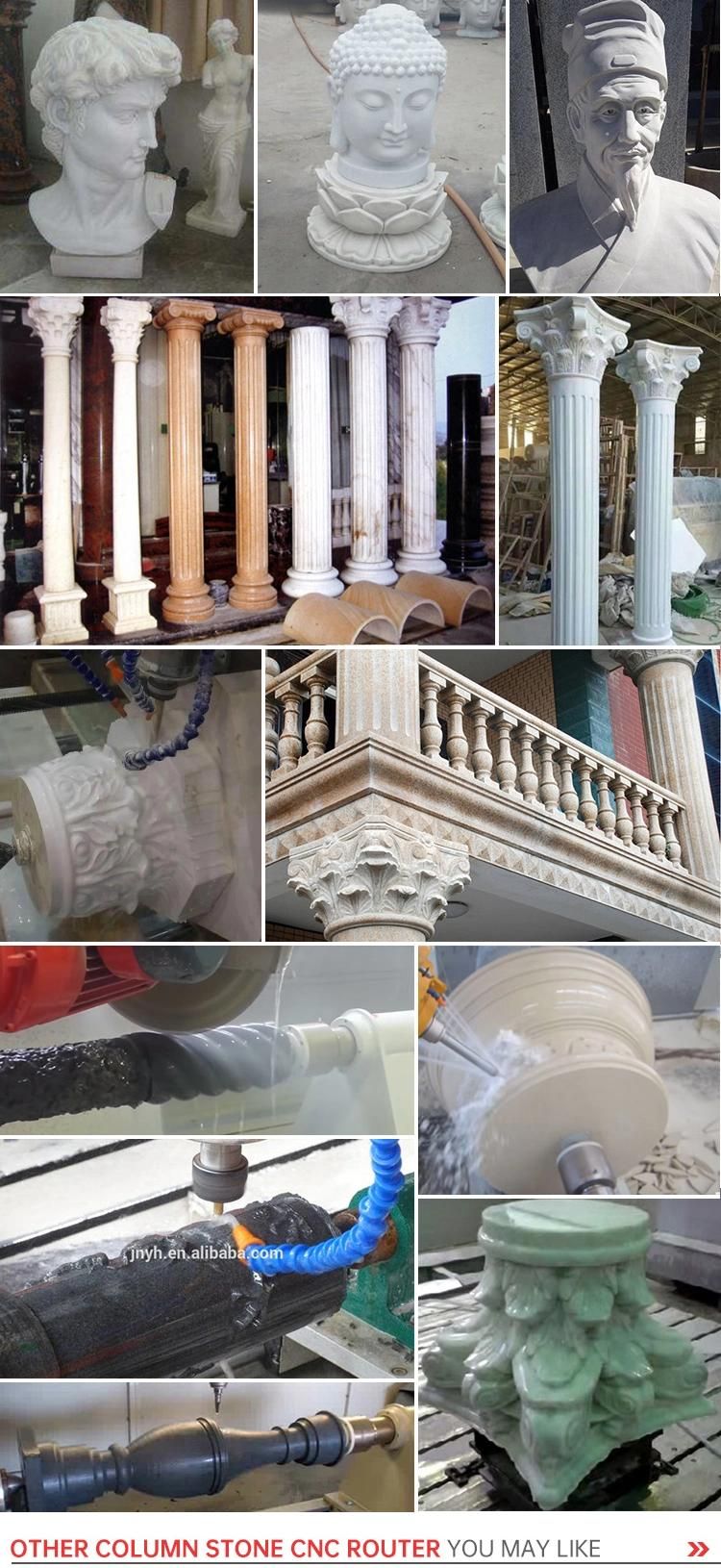

- The big rotary device can process different kinds of 3d statue sculptures roman columns corbel pilasters cylinders pillars.
- The working size can be customized according to customers' specific requirements.

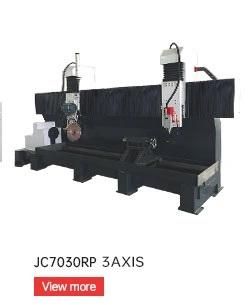

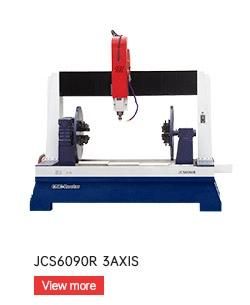

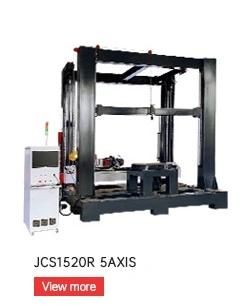

- There are 3 axis/5 axis same machines for choosing.
| Model No. | JCS9012R |
| Lathe bed | heavy duty steel structure |
| Working size | 900mm diameter, 1200mm length |
| Spindle power | 5.5 /7.5KW |
| Spindle rotating | 18000 /24000rpm |
| Max.travelling speed | 30m/min |
| Max.working speed | 15m/min |
| Control system | DSP/Nsctudio |
| Motor | Stepper /Servo |
| Saw blade unit | Option |
| Polishing pad unit | Option |
| Auto oil system | yes |
| Voltage | AC380v,3 phase,50Hz |
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,Travertine, Quartzite,
Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
