Stone Processing Machinery

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite

Jinan Unistar Machinery Co., Ltd.
  • Type:CNC Cutting Machine
  • Usage:Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Granite, Marble
  • Application:Art & Craft, Mineral Industry, Stone Industry
  • Source Voltage:380V
  • Automation:Automatic
  • Cutting Ability:High Speed

Base Info

  • Model NO.:USM1325
  • Control:CNC
  • Certification:ISO, CE
  • Model:Us-1325
  • Working Area:1300mm*2500mm
  • Type of Cooling:Water Cooling
  • Spendle Power:5.5kw
  • Engrave Speed:0-24000r,Min
  • Inverter:5.5kw Fuling Inverter
  • Driver System:Stepper Motor and Driver
  • Command Code:G Code
  • Control System:Nc Studio Control System
  • Oiling System:Manual
  • Transport Package:Wooden Case
  • Specification:1300mm*2500mm
  • Trademark:UNISTAR
  • Origin:China
  • HS Code:8465990000
  • Production Capacity:1000pieces,Year

Description

Model

US-1325

Working Size

1300mm*2500mm

Working Table

Stainless Steel Water Tank

Orbit

Import from Taiwan HIWIN or PMI Square Rail Guide

Transmission type

X, Y axis by rack and Z axis by ball Screw.

Drive System

Stepper motor and driver

Control System

NC Studio Control System

Working Accuracy

± 0.05mm

Repositioning Accuracy

± 0.05mm

Max Traveling Speed

25000mm/min

Type of cooling

Water cooling

Spindle Power

5.5KW

Engrave Speed

0-24000r/min

Inverter

Fuling Inverter 5.5KW

Command

G code

Oiling System

Manual

Working Voltage

AC380v/3ph/50HZ


Detailed pictures:

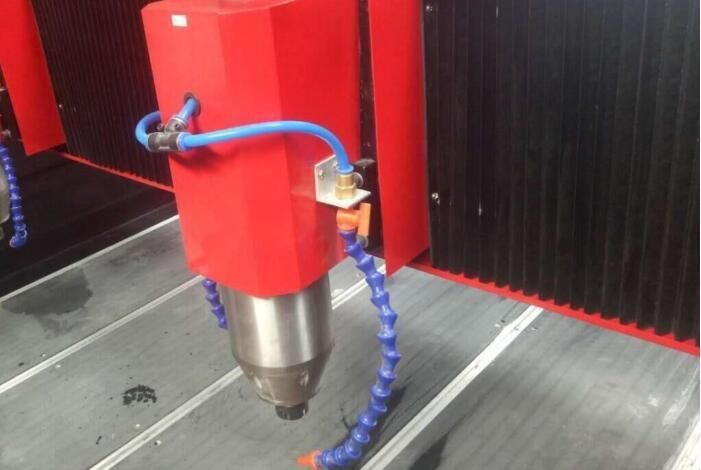

1. 5.5KW Spindle, Water cooling with high power and efficiency.

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite

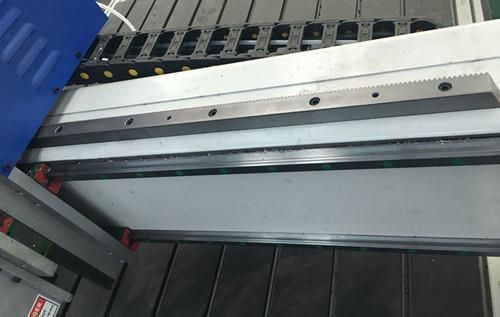

2.Rail guide(high accuracy,high precision)

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite

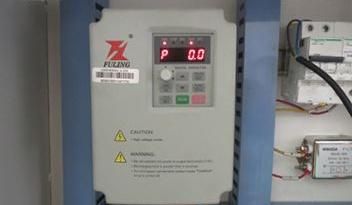

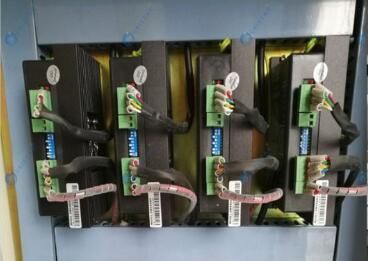

3.5.5Kw ShangHai Fuling Inverter,Stepper motor and driver

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite
1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite

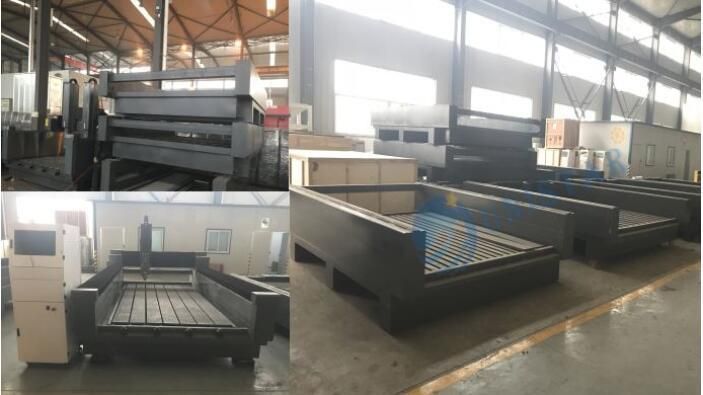

4.Machine Structure is welded by thick steel tube , through special fine processing , whole-structure stable combined
   and good rigid, guarantee the carving accuracy,  make sure no deformation after long time using.

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite


The engraving samples:

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite
1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite


Packing and shipping:

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite
1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite

Customers visit us:
1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite

1325 CNC Stone Engraving /Carving Machine for Stone/Marble/Granite

Our Service:

1: Provide 1 year warranty for the whole CNC engraving machine.

2. Professional technical support, operating video and manuals sent with the machine .

4: Provide 24 hours Engineer online guidance.

    If you have any problems , please feel free to call us.

5: We can support engineer to service machinery overseas .
