• Model NO.：LT-1325
• Certification：CE
• Current：AC
• Application：Ceramics, Decoration, Advertising, Art & Craft, Stone Industry
• Customized：Customized
• Model：Lt-1325 Stone CNC Router
• Working Area：1300X2500mm
• Z Axis：300mm
• Machine Body：Welded Steel Tube, Cast Iron
• Working Table：Aluminum T-Slot Table with PVC
• Guide Rail：Hiwin 25mm Square Guide Rail
• Driving Method：X,Y Axis by Gears Rack, Z Axis by Ball Screw
• Motor：Stepper Motor 86byg-450b
• Driver：Leadshine Driver Ma860h
• Invert：Fuling Invert
• Spindle Power：5.5kw Water Cooling Spindle
• Collet：Er25
• Spindle Speed：0-24000rpm,Min
• Control System：Nc Studio Control System
• Software：Artcam
• Transport Package：Wooden Case
• Specification：3700x2200x1750mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Year

Overview

Product Parameters

ModelLT-1325 Stone CNC RouterWorking area1300x2500mmZ axis height300mmMachine structureWeldsteel tube, cast iron vertical shafts and steel gantry Water tank with water cooling systemWorking tableAluminum T-slot table with PVCGuide railHiwin square guide railDriving methodX,Y axis by gear rack, Z axis by ball screwSpindle power5.5kw Water cooling spindleColletER25Motor and driverStepper motor 86BYG-450B and Leadshine driver MA860HInvertFuling inverterWorking speed0-12000mm/minControl systemNC studio control systemSoftwareArtCAMInstruction formateG code * .u00 * .mmg * .plt

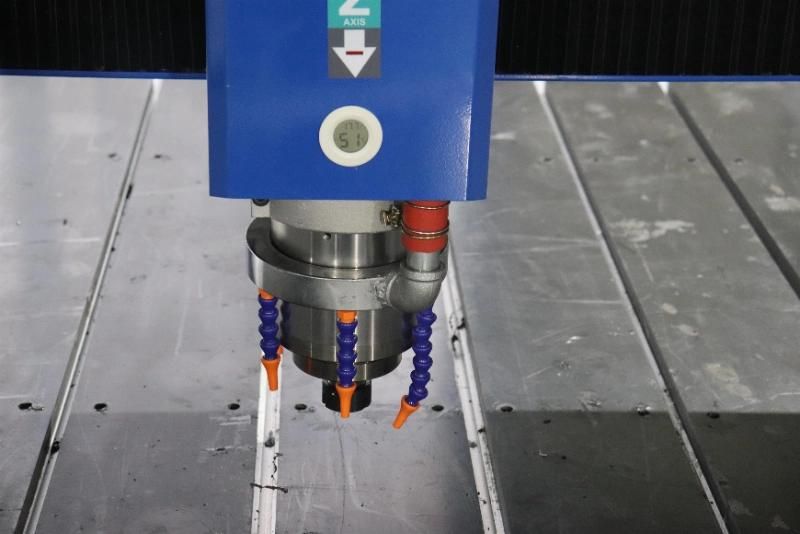

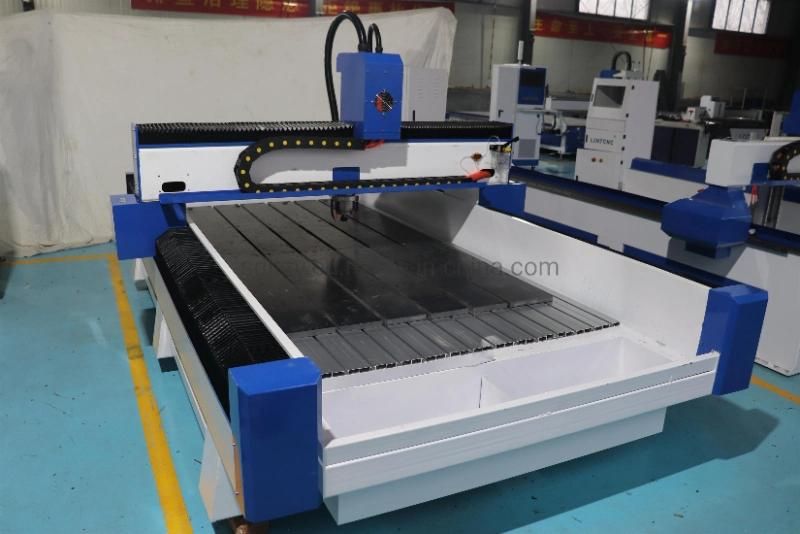

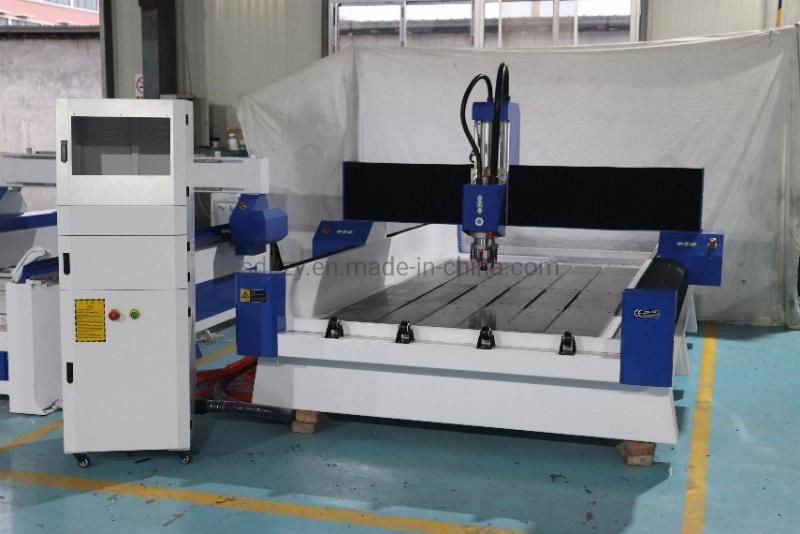

Detailed Photos
