Hualong Stone Machinery Hlqy-32-1700 Heavy Duty Bridge Block Cutter Multi-Blade Stone Cutting Machine for Granite Marble in Egypt

Fujian Province Hualong Machinery Co., Ltd.
  • Type：Hydraulic Cutting Machine
  • Usage：Ceramics, Granite, Marble

Base Info

  • Model NO.：HLQY-32-1700
  • Application：Machinery & Hardware, Art & Craft, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：PLC
  • Certification：ISO, CE
  • Stone Can Cut：Marble and Granite
  • Drive：Lead Screw Drive
  • Guide：Linear Guide Rail
  • Pillars：6

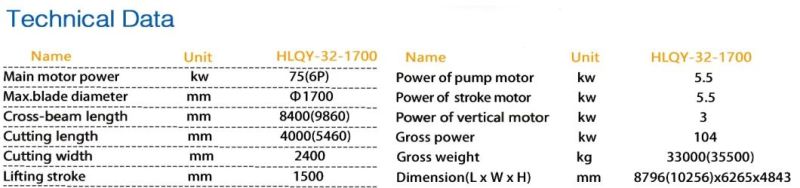

  • Main Motor Power：75(6p)
  • Max. Blade Diameter：1700mm
  • Crossbeam Length：8400(9860)mm
  • Cutting Length：4000(5460)mm
  • Cutting Width：2400mm
  • Lifting Stroke：1500mm
  • Power of Pump Motor：5.5kw
  • Power of Stroke Motor：5.5kw
  • Power of Vertical Motor：3
  • Gross Power：104kw
  • Gross Weight：33000(35000)Kg
  • Transport Package：Plastic Film Packing
  • Specification：8796,10256x6265x4843mm
  • Trademark：Hualong
  • Origin：Putian, Fujian, China
  • HS Code：84641090
  • Production Capacity：50PCS,Month
  • Package size per unit product：879.60cm * 1025.60cm * 484.30cm
  • Gross weight per unit product：33000.000kg

Description

Basic Info.

Model NO. HLQY-32-1700 Application Machinery & Hardware, Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control PLC Certification ISO, CE Stone Can Cut Marble and Granite Drive Lead Screw Drive Guide Linear Guide Rail Pillars 6 Main Motor Power 75(6p) Max. Blade Diameter 1700mm Crossbeam Length 8400(9860)mm Cutting Length 4000(5460)mm Cutting Width 2400mm Lifting Stroke 1500mm Power of Pump Motor 5.5kw Power of Stroke Motor 5.5kw Power of Vertical Motor 3 Gross Power 104kw Gross Weight 33000(35000)Kg Transport Package Plastic Film Packing Specification 8796/10256x6265x4843mm Trademark Hualong Origin Putian, Fujian, China HS Code 84641090 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 879.60cm * 1025.60cm * 484.30cm Gross weight per unit product 33000.000kg

Product Description


Hualong Stone Machinery Hlqy-32-1700 Heavy Duty Bridge Block Cutter Multi-Blade Stone Cutting Machine for Granite Marble in Egypt
Hualong Stone Machinery Hlqy-32-1700 Heavy Duty Bridge Block Cutter Multi-Blade Stone Cutting Machine for Granite Marble in Egypt

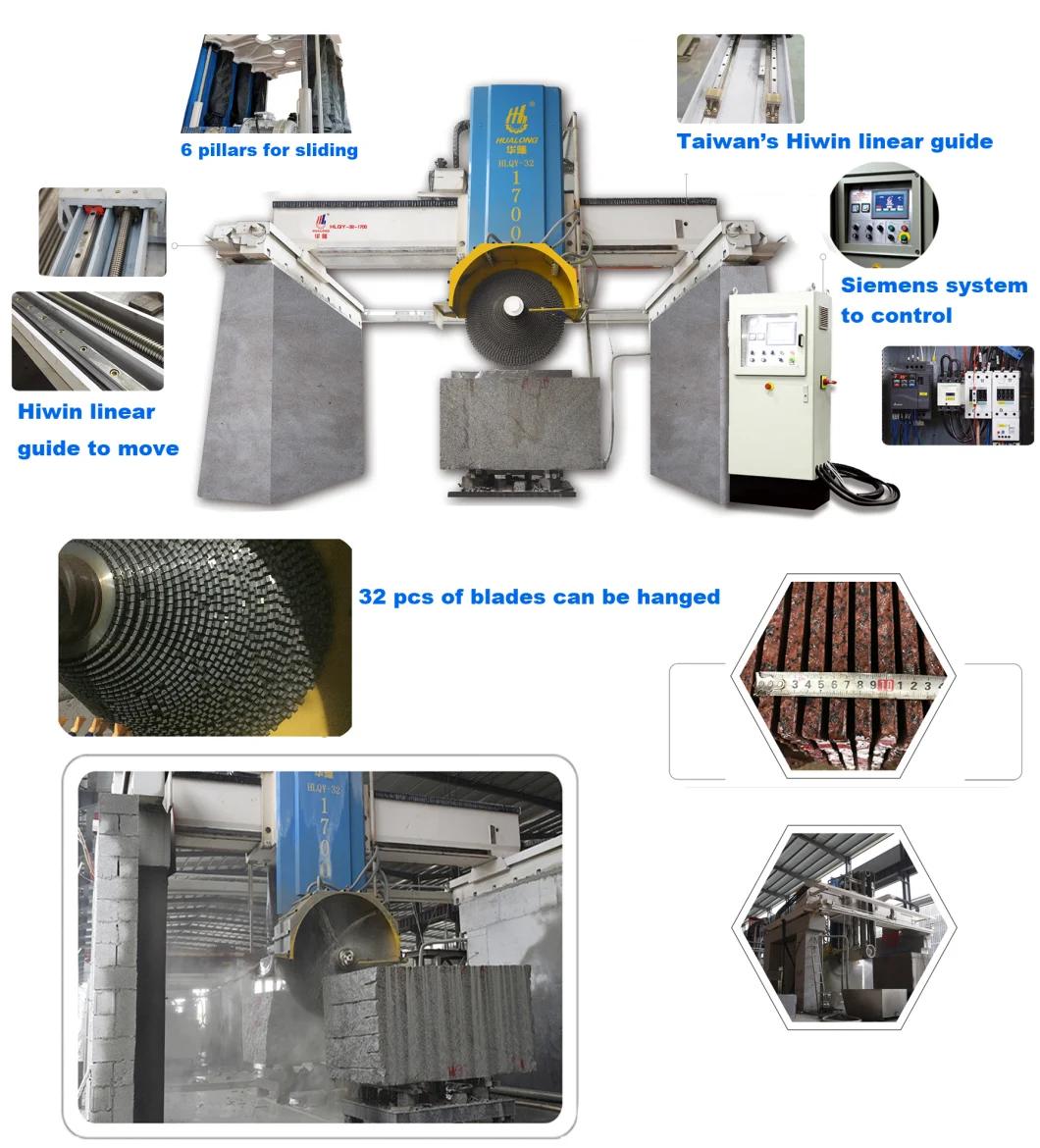

Δ Machine spindle adopts 6 pillars for sliding to ensure that the structure of the machine is stable and lifting
    is stable.

Δ The whole machine adopts super large crossbeam and the weight is more than 14.5t, which ensures the stable
   and the firm operation of the machine.

Δ Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, to ensure high precision of cutting and long life.

Δ The electronic control adopts the configuration of Siemens system so that the machine is equipped with good stability
Quality and high automation performance.
