• Model NO.：YFJ2000
• Control：PLC
• Certification：ISO, CE
• Conditiaon：New
• Container Type：20GP(DC)
• Transport Package：by Film Package
• Trademark：XINDA
• Origin：Yunfu City, China
• HS Code：84641090
• Production Capacity：500

Basic Info.

Model NO. YFJ2000 Control PLC Certification ISO, CE Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 500

Product Description

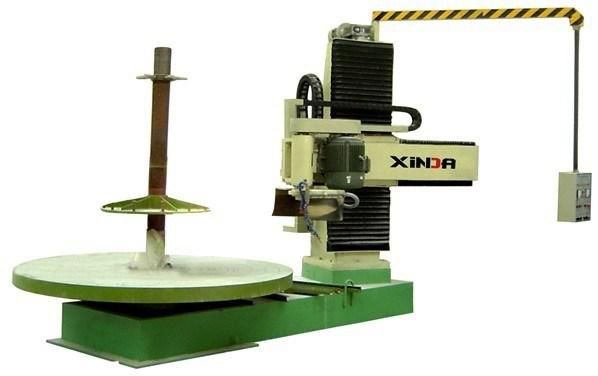

Function: The machine is designed to process column base &cup





 Brief introduction:1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.2,Cutter head moves left and right by screw rod transmission,is controlled by inverter3,Cutter head goes up and down by screw rod transmission,is controlled by inverter4,Platform of rotation is driven by variable frequency motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.
Technical parameters:

Parameters	YFJ2000
Blade diameter	Φ400-Φ600mm
Max cutting diameter	Φ2000mm
Main Motor Power	7.5KW
Water Consumption	4m³/hour
Overall Dimension	3800×2500×3500mm
Total Power	12.75KW
Total Weight	4.3T

 Exhibition:FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
This machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
