Mobile Small Jaw Crusher Machine Gold Ore Crusher
ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.- After-sales Service：Installation and Technical Support, Drawings
- Warranty：1 Year
- Type：Jaw Crusher
- Application：Machinery & Hardware, Chemical, Construction, Mineral Industry, Stone Industry
- Drive：Electric or Diesel
- Crushing Style：Squeezing
Base Info
- Model NO.：PE750*1060mm
- Compressive Strength (For Crushing)：Less Than 320MPa
- Crushing Degree：Coarse Crusher
- Certification：CE, ISO
- Condition：New
- Color：Customized
- Size of Feeding：750*1060mm
- Max Feeding Size：630mm
- Capacity：110-260tph
- Motor Power：110kw
- Discharge Size：80-160mm
- Equip：Control Cabinet
- Transport Package：Container or Wooden Cases
- Specification：100 tons per hour
- Trademark：YUFCHINA
- Origin：China
- HS Code：8474209000
- Production Capacity：50 Sets Per Month
Description
This is a type of crusher that is widely used in the primary and secondary crushing processes.
It is usually preferred for the crushing of large blocks of hard and abrasive materials.

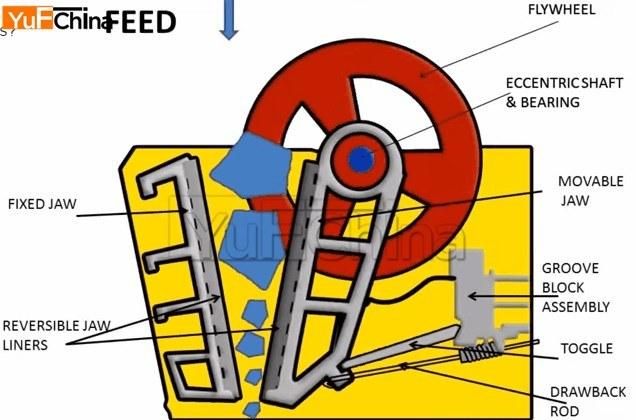

River rock crusher working principleThis style of crusher uses compression to crush rock by squeezing it between two jaws: one stationary and one movable. The movable jaw is attached to an eccentric shaft that causes it to move in a reciprocating motion. Rock enters the crushing chamber from the top and moves through the chamber, which gets narrower as it gets deeper, until it is caught between the two jaws, where it is squeezed until it fractures.
Stone crusher application
Stone Crushing
Concrete Crushing
Asphalt Crushing
Ore Crushing
Jaw crusher and Advantages
1. High efficiency and low operation cost
2. Flexible capacity
3. Simple structure and easy to operate
4. Over loading protection
5. Easy replacement of wearing parts
6. Long service life
7. High reliability
8. Wide ranges of choices
9. Alternative ordinary and hydraulic types

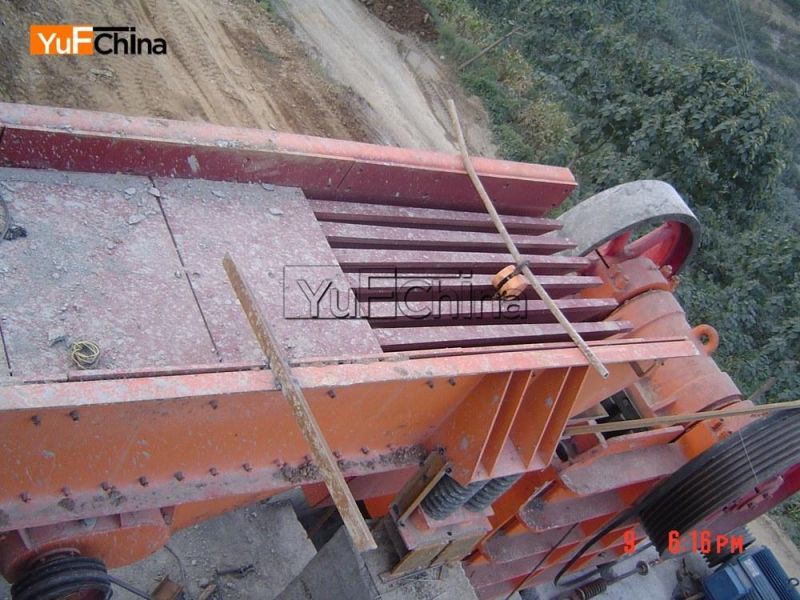

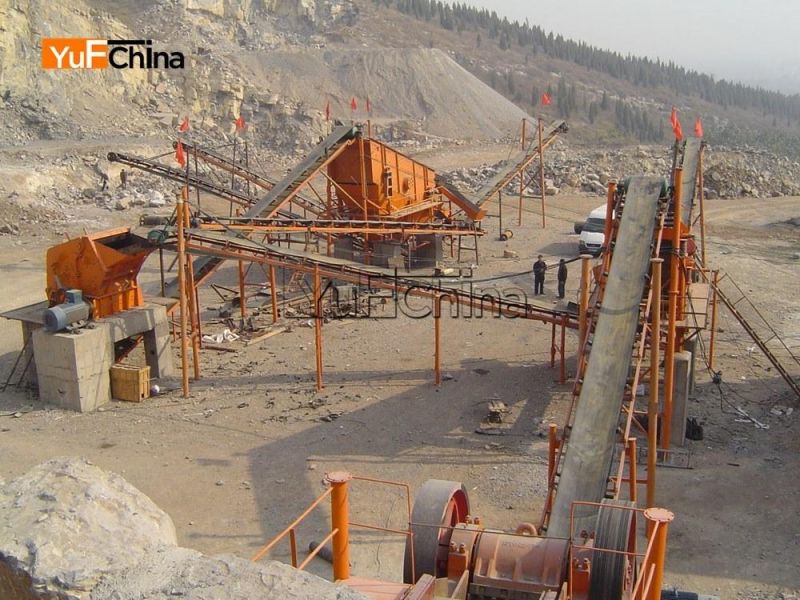

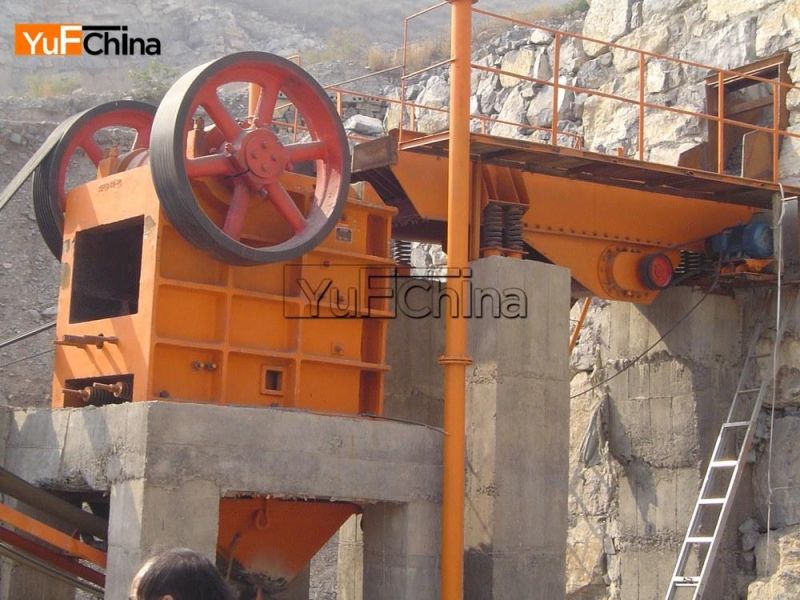

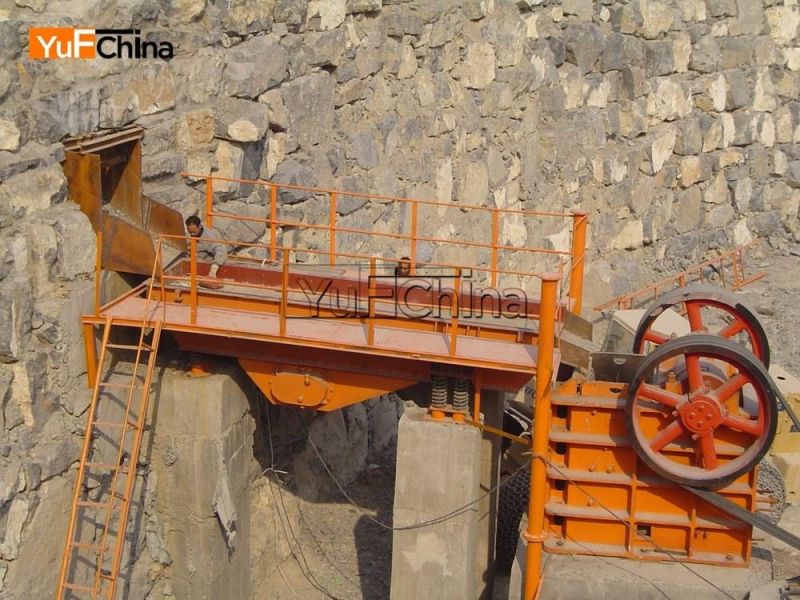

Jaw crusher working site photos

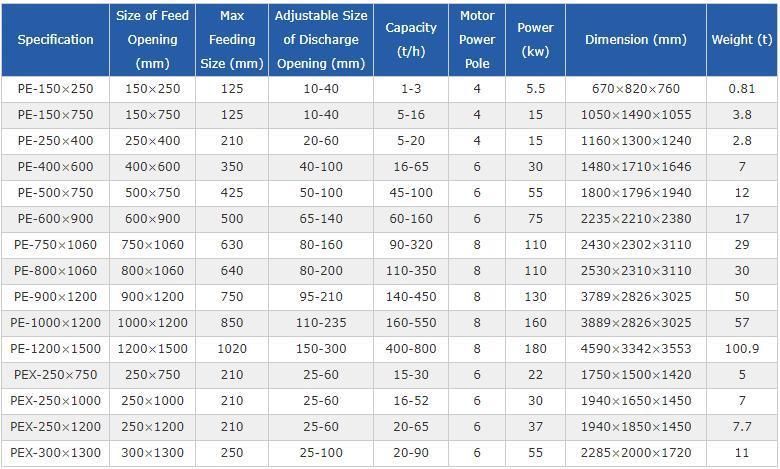

Jaw crusher technical data
Our Services
Pre-sale
1. Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer's special demand.
2. Design the most reasonable project and maximum customers' profit.
3.Provide engineers to scene to plan work site if the customer needed.
4. Provide equipment list, design drawing, construction drawing, equipment install drawing.
After Sale's Service:
a.1 year warranty ,if the machine break is by quality detect not personal reason or natural disaster ;
c. Easy break spare parts not include .Engineer installation abroad and teach you master the skill to produce wood pellet;
c. Supply you the spare parts with favorable price all the machine life time;
d. Caring service, carefully manufacture and desirable price make customers at ease.
