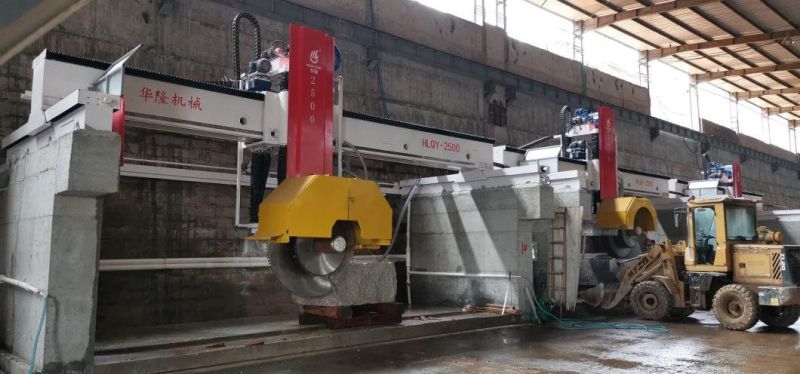

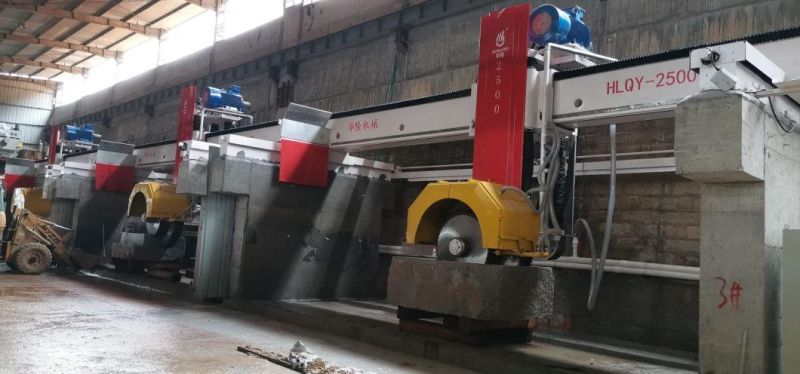

Hualong Hlqy-2300/2500 Bridge-Type Granite Stone Cutting Machinery Automatic Bridge Wet Cut Saw Granite Marble Stone Block Cutter Cutting Equipment

Fujian Province Hualong Machinery Co., Ltd.
  • Warranty：1 Year
  • Type：Hydraulic Cutting Machine

Base Info

  • Model NO.：HLQY-3000
  • Usage：Ceramics, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：PLC
  • Certification：ISO, CE
  • Stone Can Cut：Marble and Granite
  • Drive：Lead Screw Drive
  • Guide：Linear Guide Rail
  • Main Motor Power：55(4p)Kw
  • Gross Power：62.3kw
  • Mx. Blade Diameter：φ2500mm
  • Cutting Length：3500mm
  • Cutting Width：2000mm
  • Slab′s Thickness Can Cut：17,20,30mm,etc.
  • X Axis Maximum Stroke：13m,MIM
  • Transport Package：Plastic Film Packing
  • Specification：7800x5000x4500mm
  • Trademark：Hualong
  • Origin：Putian, Fujian, China
  • HS Code：84641090
  • Production Capacity：50PCS,Month

Description

780x500x450

Hualong Hlqy-2300/2500 Bridge-Type Granite Stone Cutting Machinery Automatic Bridge Wet Cut Saw Granite Marble Stone Block Cutter Cutting EquipmentHualong Hlqy-2300/2500 Bridge-Type Granite Stone Cutting Machinery Automatic Bridge Wet Cut Saw Granite Marble Stone Block Cutter Cutting EquipmentHualong Hlqy-2300/2500 Bridge-Type Granite Stone Cutting Machinery Automatic Bridge Wet Cut Saw Granite Marble Stone Block Cutter Cutting Equipment
Hualong Hlqy-2300/2500 Bridge-Type Granite Stone Cutting Machinery Automatic Bridge Wet Cut Saw Granite Marble Stone Block Cutter Cutting EquipmentHualong Hlqy-2300/2500 Bridge-Type Granite Stone Cutting Machinery Automatic Bridge Wet Cut Saw Granite Marble Stone Block Cutter Cutting EquipmentHualong Hlqy-2300/2500 Bridge-Type Granite Stone Cutting Machinery Automatic Bridge Wet Cut Saw Granite Marble Stone Block Cutter Cutting Equipment

Main Features

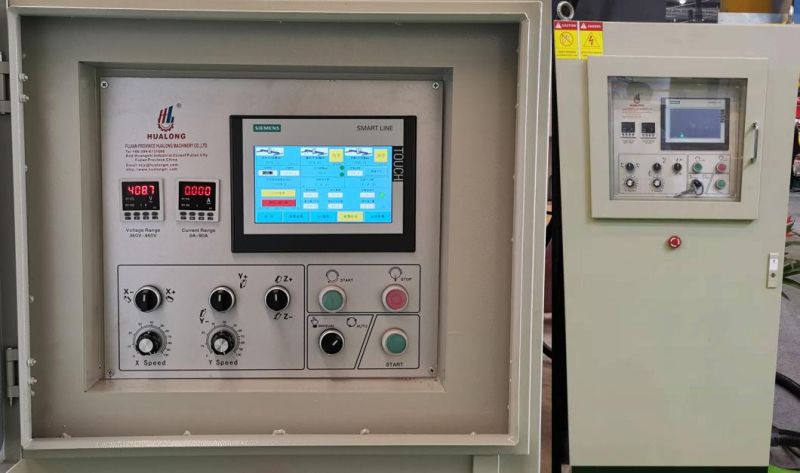

1) Siemens smart PLC control system makeshigh automation performance and easy.
2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.
4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
