• Model NO.：PF-1007
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：as Clients Required
• Model No.：PF-1007
• Test and Installation：Engineer Assigned
• Delivery Detail：in 30 Days After The Payment
• After-Sale Service：for The Whole Using Life
• Spare Parts Supply：Will Supply Any Time
• Model of Motor：Y250m-6
• Motor Power(Kw)：37
• Weight(T)：9.5
• Specification(mm)：1000*700
• Capacity(T/H)：35-50
• Transport Package：Wooden Packing or as Clients Required
• Specification：Reference as the Form
• Trademark：Hongke
• Origin：Zhengzhou, Henan
• HS Code：84742090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. PF-1007 Finished Surface Hole Process Certification CE, ISO Condition New Color as Clients Required Model No. PF-1007 Test and Installation Engineer Assigned Delivery Detail in 30 Days After The Payment After-Sale Service for The Whole Using Life Spare Parts Supply Will Supply Any Time Model of Motor Y250m-6 Motor Power(Kw) 37 Weight(T) 9.5 Specification(mm) 1000*700 Capacity(T/H) 35-50 Transport Package Wooden Packing or as Clients Required Specification Reference as the Form Trademark Hongke Origin Zhengzhou, Henan HS Code 84742090 Production Capacity 150 Sets/Month

Product Description

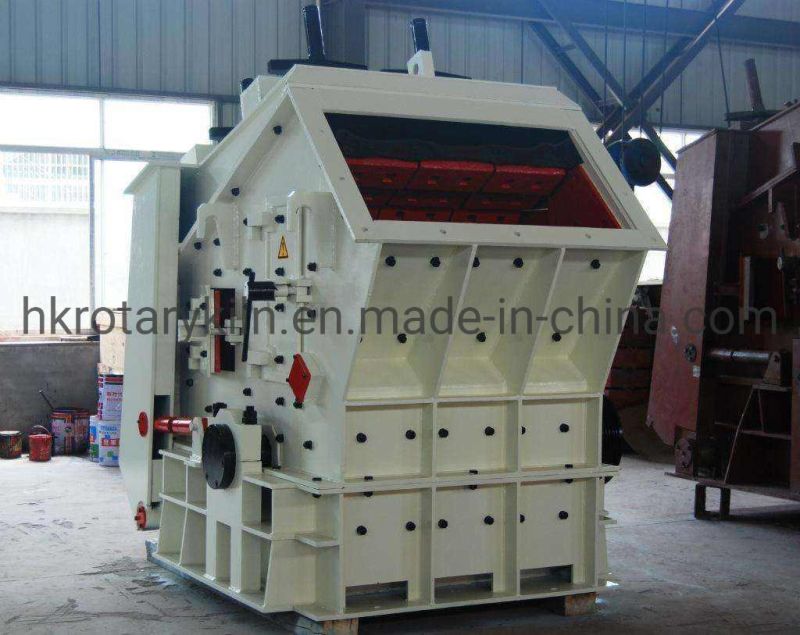

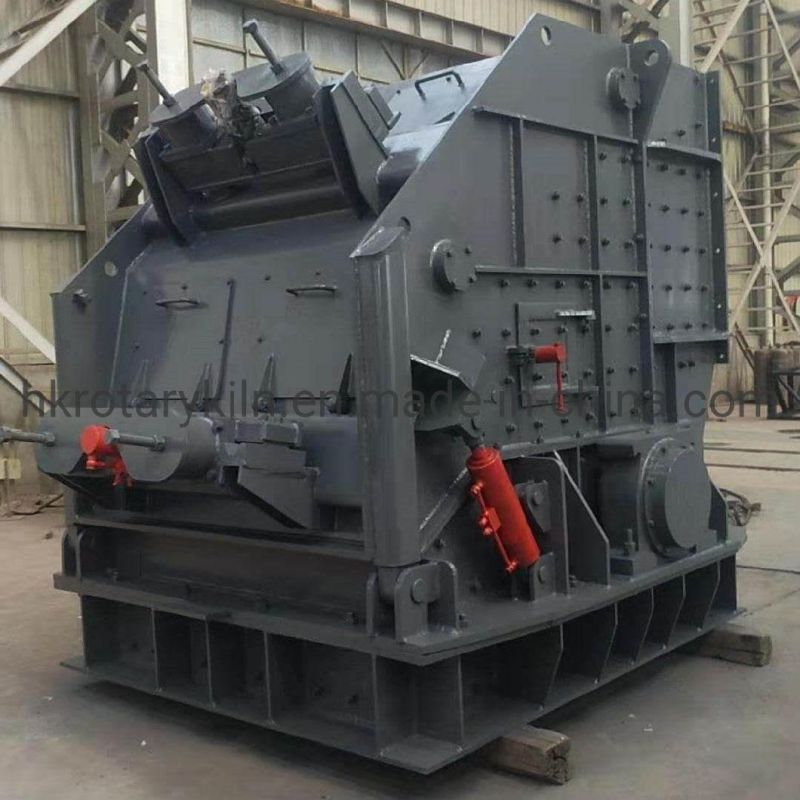

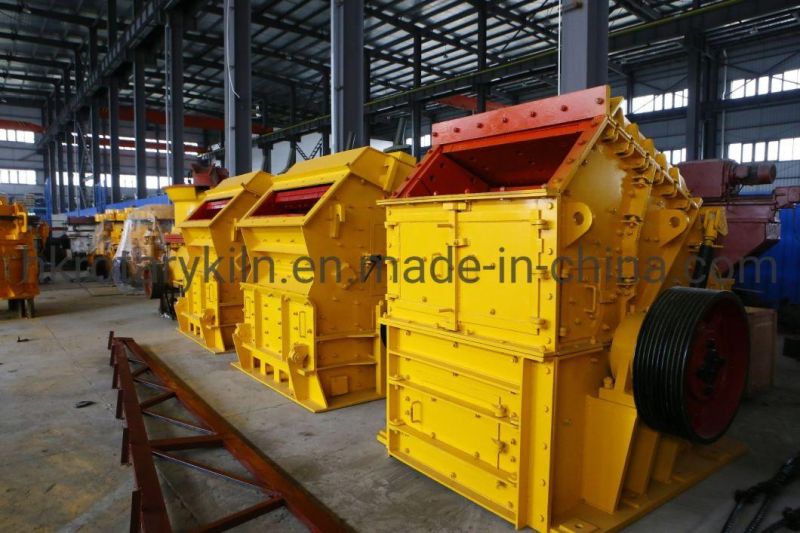

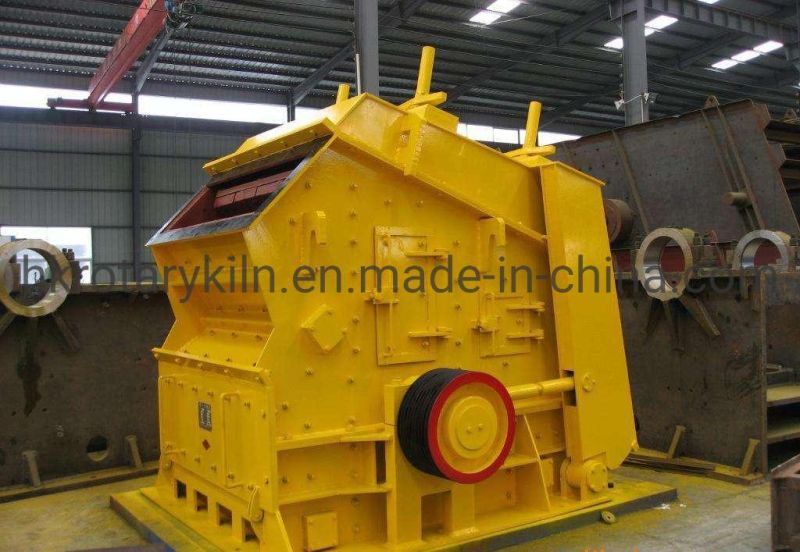

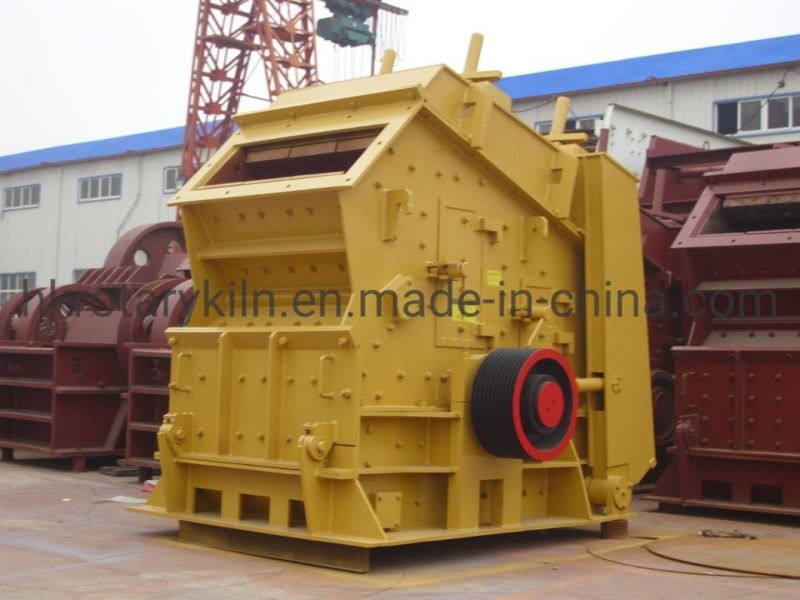

Product Description of Impact Crusher
Impact Crusher is a new product that absorbs advanced technologies at home and abroad.Impact crusher is suitable for materials whose compressive strength is under 360Mpa, and particle size is under 500mm.The company impact crusher features easy maintenance, high crushing ratio and crushing efficiency etc. With end products in cubic shape, impact crushers.are the ideal crusher for aggregates processing in high-type highway building, water conservancy and power construction.
 With excellent capacity and performance, the impact crusher is preferred to crush granite, limestone, rival gravel, etc. The impact is suitable for materials whose compressive strength is under 360Mpa and side length is under 500mm.
This series impact crusher is divided into: two champers and three chambers two series, can handle a variety of side length of not more than 500mm, not more than 250Mpa compressive strength of coares, medium and fine materials(granite, limestone, concrete, etc.) When working in the motor driven, high-speed rotation of the rotor, the rotor material into the sheet after the impact hammer crusher, and then back onto the liner broken again, and finally through the discharge port. Unique aircraft structure, seamless connectivity, high chrome hammer sheet, a unique back liner: simplified crushing process, energy efficient; finished cuboid; nestinf particle size can be adjusted. Its widely used in electricity, water, highway, artificial aggregates, ore crushing industry.
Main Features and Benefits
1. The impact crusher is with unique simple structure, keyless connection.
2. Impact Crushing is with high-chromium plating hammer and special impact liner plate.
3. The impact crusher is capable  of highly efficient hard rock crushing while saving energy.
5. The final product of impact crusher is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.
6. Easy maintenance.
7. Reliable performance.
Impact Crusher Main Parts
Impact Crushing is made up of first stage impact curtain with anvils,impact curtain adjusting rods, second stage impact curtain with anvils, rotor, blow bar ,wedge lock assembly, back-up bar, discharge opening,third stage impact plate and so on.
The impact crusher uses plate hammer on the rapidly rotating rotor to generate high-speed impact to crush the materials in the crushing cavity, and casts the crushed materials along tangential direction to impact plate at the other end of the crushing cavity. The materials are crushed again, and then, they return to the plate hammer to undergo the process above repeatedly.

The materials are bumping with each other when being sent between the plate hammer and the impact plate. The materials become cracked, loose and then comminuted by knocking by the plate hammer, impact with impact plate and bump between materials. The materials with grain size smaller than the gap between impact plate and plate hammer will be discharged.

Model	Spec.	Feeding Opening (mm)	Feeding Size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PF-1007	Φ 1000× 700	400× 730	≤ 250	15-60	37-55	9.5
PF-1010	Φ 1000x1050	400x1080	300	50-90	55-75	14
PF-1210	Φ 1250x1050	400x1080	300	70-130	110-132	17
PF-1214	Φ 1250x1400	400x1430	300	90-180	132-160	22
PF-1315	Φ 1320x1500	860x1520	350	120-250	180-260	26
PF-1320	Φ 1320× 2000	860× 2030	500	160-350	300-375	30
