Stone Processing Machinery

Home > Product > Stone Cutting Machine

Automatic Large Marble Slab Griding Polishing Machine Mabrle Slab Grider and Polisher Polishing Machines Granite Stone Polishing Machine

Guangzhou Perfect Machinery Technology Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：One Year
  • Type：CNC Cutting Machine
  • Usage：Ceramics, Glass, Granite, Marble
  • Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：2200-16
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
  • Transport Package：1*40fr
  • Specification：PLC2000
  • Trademark：PMT
  • Origin：China
  • HS Code：84601090
  • Production Capacity：200set

Description

Overview Product Description



 Model ZDMJ-12CZDMJ-16CZDMJ-18CZDMJ-20CPlishing  Head QTY.pc12161820Useful  Working Widthmm600-2100600-2100600-2100600-2100Useful  Working Thicknessmm12-5012-5012-5012-50Belt  Speedmm/min0-25000-25000-28000-3200Spindle  Motor Powerkw7.5/9 / 11 / 157.5/9 / 11 / 157.5/9 / 11 / 157.5/9 / 11 / 15Total  Powerkw121 / 145 / 193158 / 190 / 254176 / 212 / 284194 /234 / 314Water  Consumptionm3/h22252628Overall  Sizemm

8400/9600*3200*2600

10000/11600*3200*260010800/12800*3200*260011600/13600*3200*2600

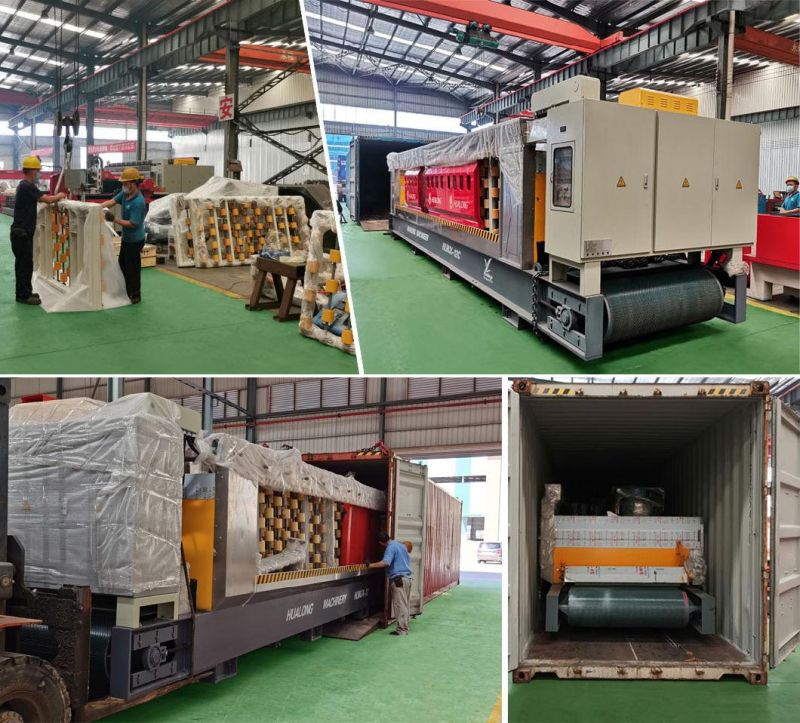

 Packaging & Shipping

marble and granite slab polishing machine we have width 600mm-2200mm, the width 600-1250mm ,the slab polishing Machine Loading by normal container,heads motor user 7.5 or 9 kw.
 width 1200-2200mm, the slabe polishing machines loading by 1x40FR container, heads motor used 11 or 15kw.


Automatic Large Marble Slab Griding Polishing Machine Mabrle Slab Grider and Polisher Polishing Machines Granite Stone Polishing MachineAutomatic Large Marble Slab Griding Polishing Machine Mabrle Slab Grider and Polisher Polishing Machines Granite Stone Polishing MachineOur factory not only have all kinds of size of bridge saw cutting machine of stone machine and stone machine spare parts ,but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, slab polishing machine , edge grinding machines, row pitch machines and rope machines and laser machine and water jet machines and so on !!!
