• Model NO.：HY290
• Type for Grinding Machine：Vibration Grinding Machine
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Wet Grind
• Certification：ISO
• Condition：New
• Number of Grinding Block：6 Pieces
• Grinding Block Length：165mm
• Material：Aluminum Alloy Casting Body
• Surface Color：Yellow, Customized Is Available
• Max. Rotary Diameter：520mm
• Max. Head Revolving Speed：500-5500rpm,Min.
• Overall Height：286mm
• Diameter of Main Shaft：170mm
• Diameter for Main Shaft Hole：85mm
• Net Weight：98kg
• Transport Package：as Requirement by Customers
• Specification：Customized
• Trademark：OEM and ODM is available.
• Origin：Guangdong, China
• HS Code：8466910000
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. HY290 Type for Grinding Machine Vibration Grinding Machine Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification ISO Condition New Number of Grinding Block 6 Pieces Grinding Block Length 165mm Material Aluminum Alloy Casting Body Surface Color Yellow, Customized Is Available Max. Rotary Diameter 520mm Max. Head Revolving Speed 500-5500rpm/Min. Overall Height 286mm Diameter of Main Shaft 170mm Diameter for Main Shaft Hole 85mm Net Weight 98kg Transport Package as Requirement by Customers Specification Customized Trademark OEM and ODM is available. Origin Guangdong, China HS Code 8466910000 Production Capacity 500 Pieces/Month

Product Description

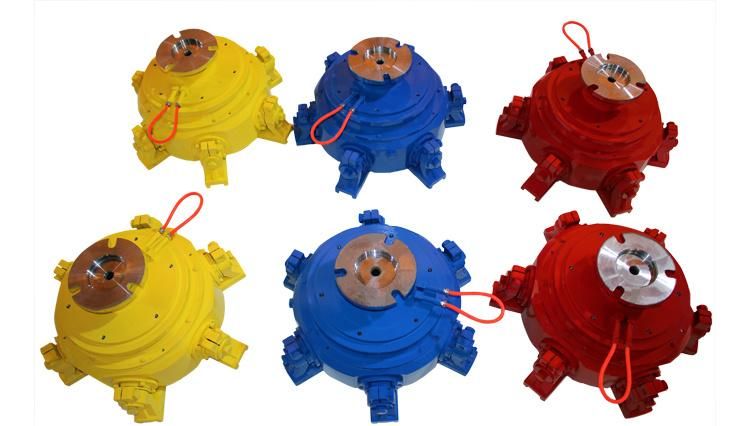

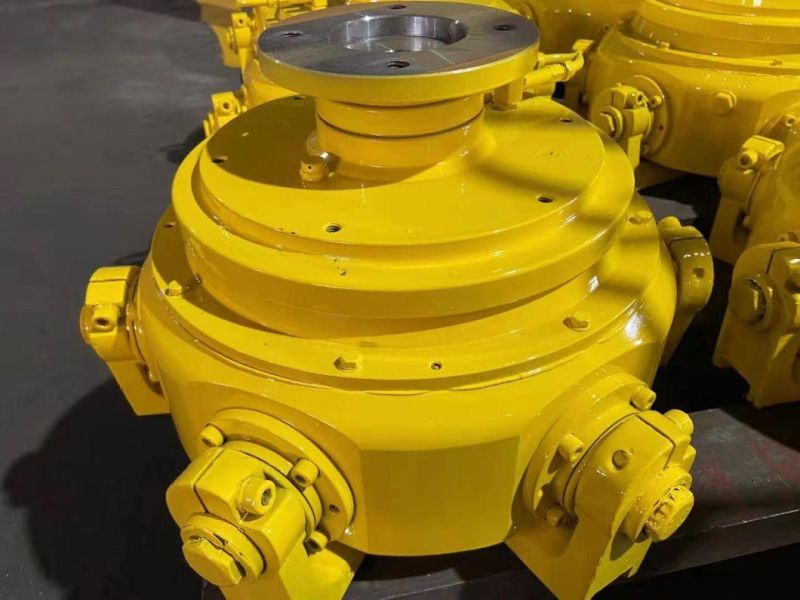

Ceramic Machinery Stone Machinery Polishing Machine Grinding Head

Being one of a professional precision grinding head manufacturer in China, with simple structure and innovative compound sealing design to ensure excellent cyclic performance of internal lubrication and extend the service life of each part. Cam Type Granite Grinding Polishing Head was highly praised for its high quality and efficiency fast speed and low maintenance.


1. Technical specifications of cam type granite grinding polishing head

Item No.:	HY290
Number of Grinding Block	6 Pieces
Body Material	Aluminum alloy casting, or cast iron customized is available
Surface Color	Yellow, customized is available
Max. Rotary Diameter	ø490mm
Max. Head Revolving Speed	500-550rpm/min.
Overall Height	286mm
Grinding Block Length	130mm
Diameter of Main Shaft	ø170mm
Diameter for Mounting Spigot of Main Shaft	ø85mm
Connecting Hole for Main Shaft	3 x ø18
Center Distance	6-M10-ø240
Net Weight	98Kg
Lead Time	15-20 work days
Guarantee	1 year
Supply Ability	500 pieces/month
Minimum Order Quantity	1 Piece
Payment Terms	T/T, L/C, Western Union
Shipping Terms	EXW, FOB, CIF
Place of Origin	Foshan, China(Mainland)
Port	Guangzhou, Shenzhen
Unit Price	$800

Remark: flange for main shaft is available upon customer's requirement.


2. Features of cam type granite grinding polishing head
Precisely design
Stably running with very little noise
Excellent fine grinding with high efficiency
Long life low maintenance cost
High quality competitive price


FAQ
Q1: Are you a trader or manufacturer?
A1: We are manufacturer.

Q2: Can you accept OEM or ODM?
A2: Of course.

Q3: What is the delivery time?
A3: Approximately 15-20 working days after get deposit down payment.

Q4: How is the cam type granite grinding polishing head packed?
A4: Standard exported wooden box packing for sea transport or air transport and needn't to be fumigated.

Q5: Which port can we load and deliver the cam type granite grinding polishing head?
A5: There are lot of shipping agent in every main port of China, cam type granite grinding polishing head can deliver from every port of China to most sea port in the world after we have your detailed address information.

Our Advantages


Hot tags: we are engaged in manufacturing and supplying with a variety of polishing head for single-head and multi-head automatic polishing lines, polishing head manufacturer, supplier, factory.
