• Model NO.：FM1325
• Certification：CE, ISO
• Current：AC
• Application：Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Spindle Power：Water Cooling 4.5kw
• Spindle Rotation：6000--24000rpm
• Motor Driver：Stepper Motor Driver(Chinese Servo Motor and Japan
• Tool Diameter：3.175, 4, 6, 12.7mm
• Transport Package：Standard Box
• Specification：CE
• Trademark：FIRM
• Origin：Jinan, China
• HS Code：84649012
• Production Capacity：200,Month

Basic Info.

Model NO. FM1325 Certification CE, ISO Current AC Application Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Spindle Power Water Cooling 4.5kw Spindle Rotation 6000--24000rpm Motor Driver Stepper Motor Driver(Chinese Servo Motor and Japan Tool Diameter 3.175, 4, 6, 12.7mm Transport Package Standard Box Specification CE Trademark FIRM Origin Jinan, China HS Code 84649012 Production Capacity 200/Month

Product Description

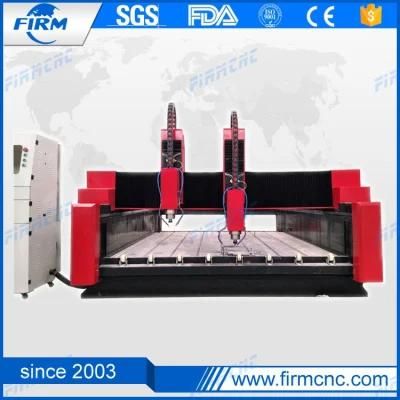

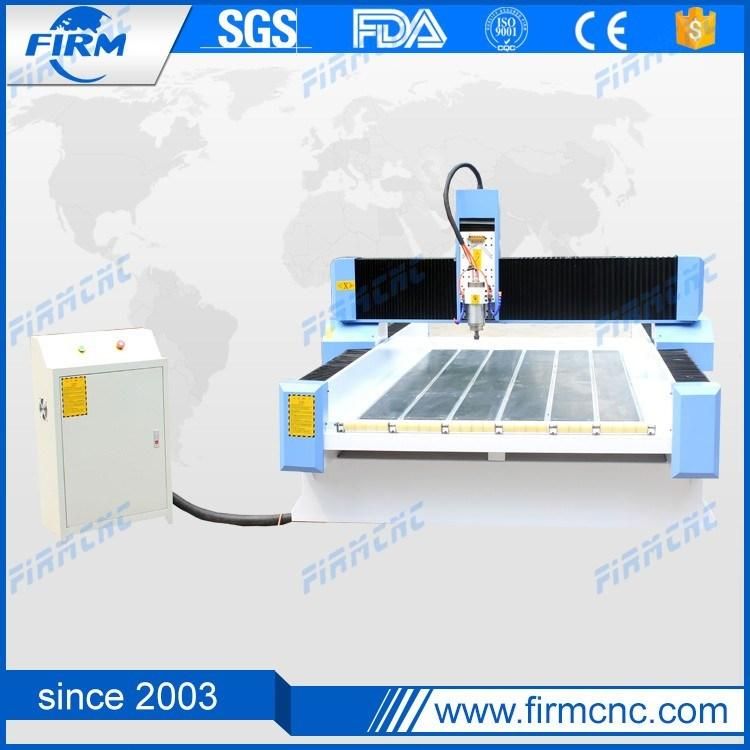

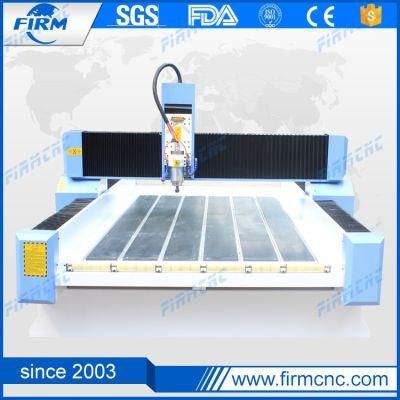

New Style Stone CNC Engraving Carving machine/machinery

JiNan Firm CNC Equipment Co., ltd is one of the most famous professional manufacturer of all kinds of CNC Routers in China, because of the good service and the high quality products we have obtained the good raputation overseas.


This Stone CNC Router FM-1325 is a very popular products for sales, it widdly used in the stone processing industry, art industry, ceramics reliefs industry and so on, it can engrave/cutting/carving marble, granite, glass, PVC and so on, because of the good quality and the most compitive price we have recept many order from all over the world.

The Performance Characteristics
1. Machine body is industrial production model, heavy all steel welded structure, tempering aging treatment, strong Non-deformation. Durable in use
2. Triaxial exclusive dust protection, waterproof technology used to ensure that the guide rail, gear and rack from the cutting dust and scraps, prolong the service life of parts.
3. Machine is equipped with a sink and automatic water supply system, which can be fully to the cutting tool and machining of stone, metal cooling
4. Main configuration chooses import, joint venture brand components, stable and reliable performance<
5. Dust oiling structure, effectively guarantee the mechanical aspects of the long run
6. Have breakpoints, power failure continued carving function
7. T-slot mesa, lathe bed is more stable

Parameter Data

Working size	1200×2400×300mm
Spindle power	Water cooling 4.5KW
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver(Chinese servo motor and Japan servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	High accuracy gear rack
XYZ rails	square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	0.03/300mm
Engraving speed	12000mm/min
Data transmission	PC connect directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	1200kg

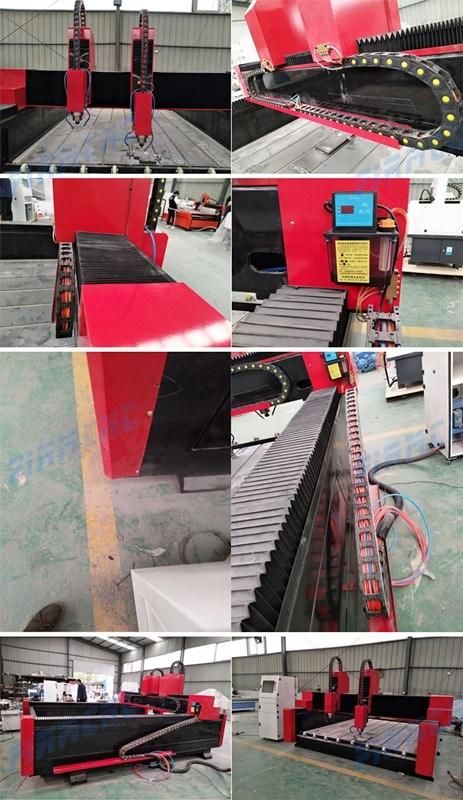

Main parts

Samples

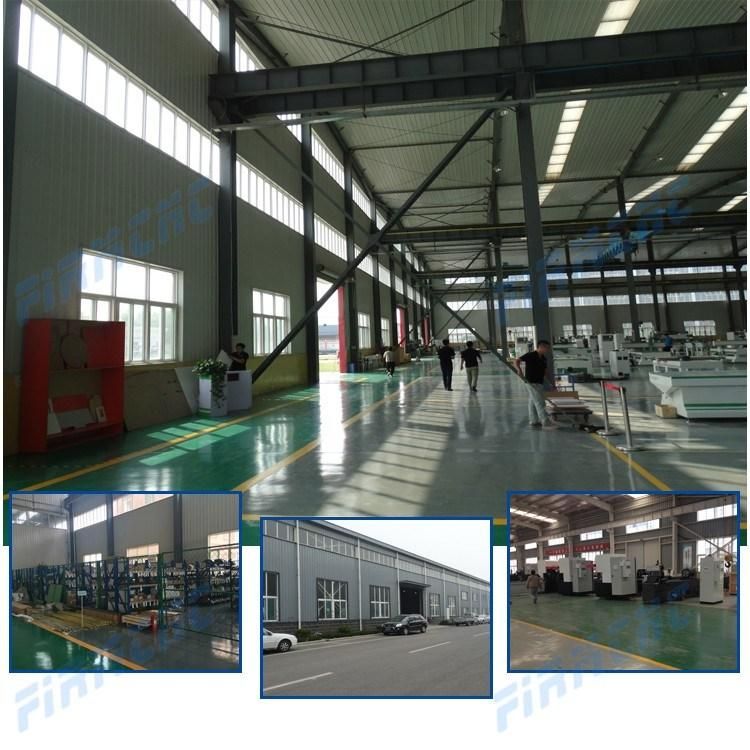

Factory

Service:
# One year warranty for the machine
# Replacing all parts for free during warranty
# If necessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer technical service within 24 hours.
