Stone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin Sink

Linyi Chaoda International CNC Technology Co., Ltd.
  • Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
  • Application Material：Granite
  • Automation：Automatic
  • Control：CNC
  • Motor Power：High Power
  • Engraving Head Speed Adjustability：Wide Adjustable Range

Base Info

  • Certification：CE, ISO
  • Current：AC
  • Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
  • Customized：Customized
  • Applicable Material：Wood, Stone, Glass, Ice, Softmetal, Plastic, Foam
  • X,Y, Z Working Size：1300*2500*200mm(Customized)
  • Table Surface：T-Slot with Clamps
  • Pindle Power：4.5kw Water Cooling Spindle
  • Operating System：4 Axis Weihong Control System
  • Transport Package：Wooden Case Packages
  • Specification：working size diameter 1000mm, length 2500mm
  • Trademark：CHAODA
  • Origin：China
  • HS Code：8464909000
  • Production Capacity：800sets,Year

Description

SpecifiationsModel number JCS1325 X, Y, Z , Bworking area 1300*2500*500mm*180degreeLathe bed structure Heavy duty Steel T-extrusion Table surface   T-slot with clamps,with water tank X structure   Rack and pinion, Taiwan linear square rail Y structure Rack and pinion, Taiwan linear square railZ structure Ball screw, Taiwan linear square rail Max.operating speed 0-55000mm/minMax.working speed0-25000mm/min Spindle  5.5 kw water cooling spindle with ATC function (optional 7.5kw/ 11kw/12kw) Spindle speed     0-24000 RPM  Collet   BT30  Working modeJapan Yaskawa Servo motor and driver ( option: servo motor Inverter Taiwan DeltaOperating system  4 axis Ncstudio NK300 controller/ optional 3 Axis Command code G code(*uoo,*nc,*mmg, *plt)Oil systemyesRunning circumstanceTemperature: 0ºC~45ºC; relative humidity: 30%~75%Weight 3850kgAccessories education CD,Tools,spanners,clamps,collets,water pumps

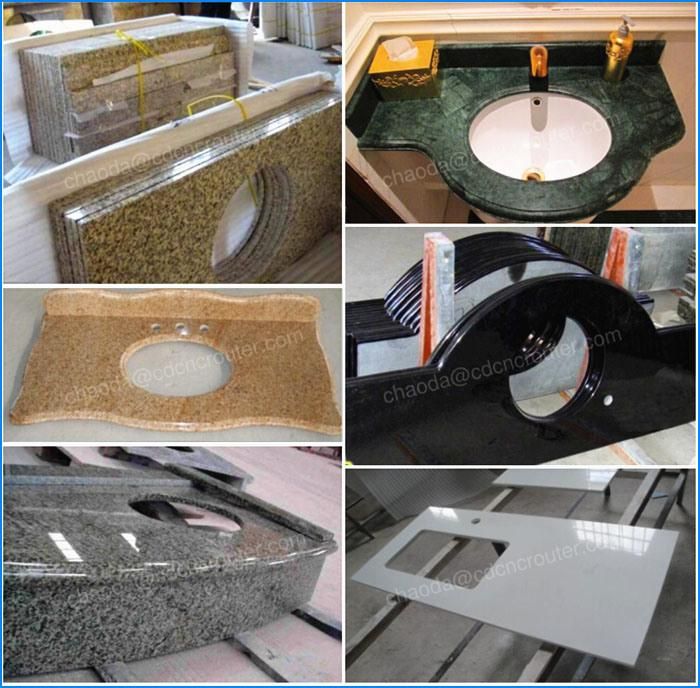

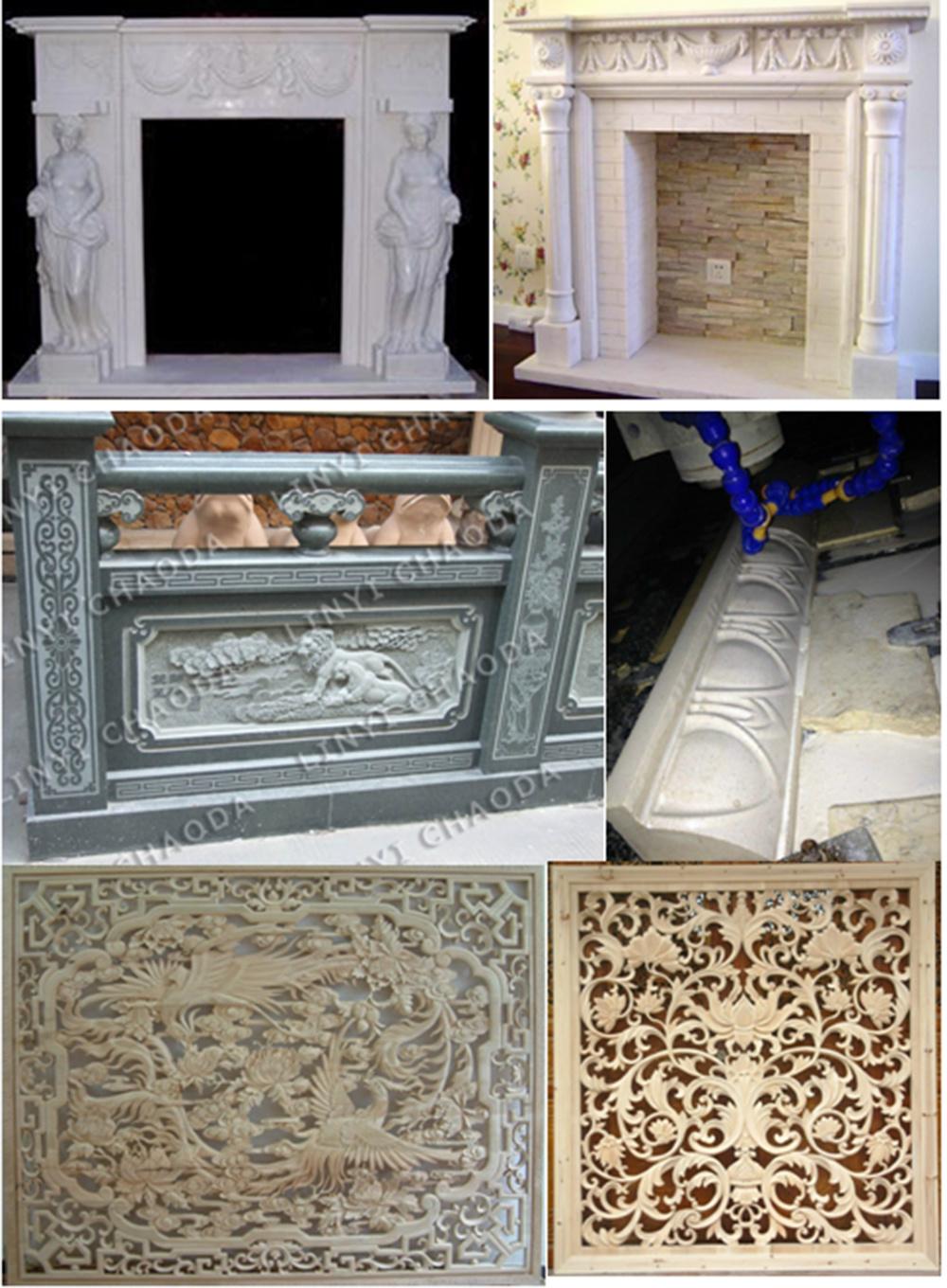

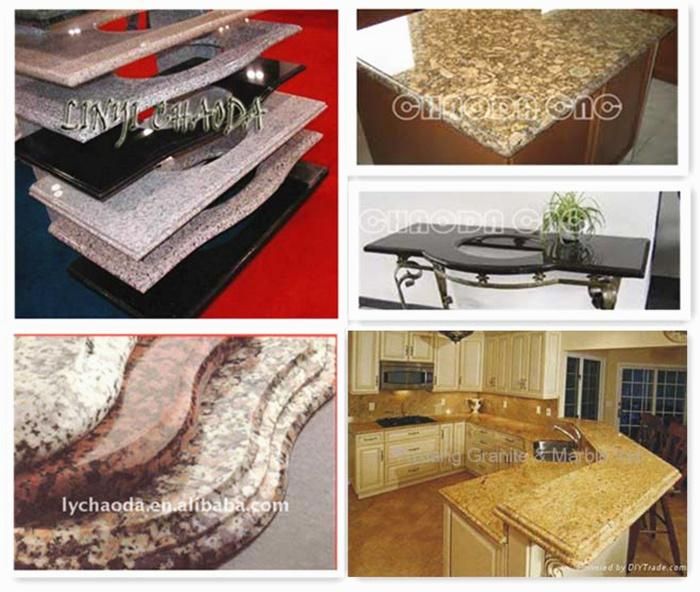

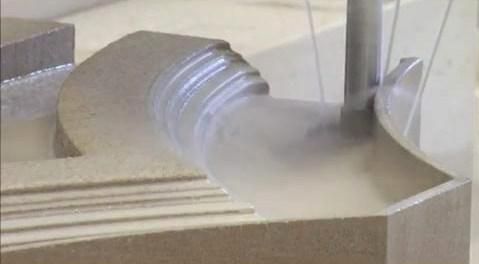

Samples Can Be Made by This Machine:
Stone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin SinkStone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin Sink
Stone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin Sink
Stone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin Sink
Stone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin Sink


Stone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin Sink

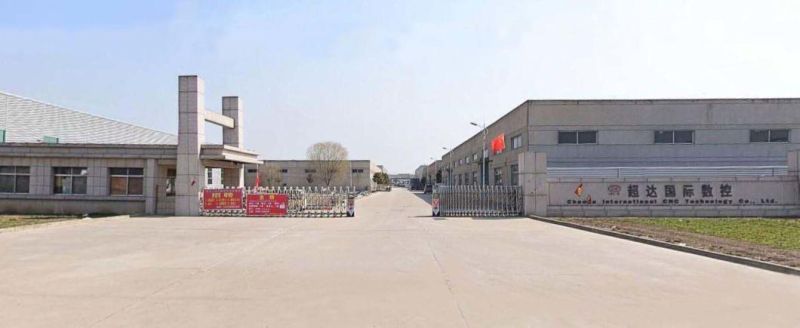

Factory and Product Introduction:

Stone Atc CNC Cutting and Milling Machine for Kitchen and Washroom Marble Countertop/ Basin Sink


We are factory professional produce 3 axis,4 axis,5 axis cnc machines,cnc laser,3D scanner etc.
Including all kinds of 2d,3d flat decoration products and rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,plastic,PVC,composite boards,acrylic,glass,aluminum etc.
Welcome for your inquiry and visit our factory!
