Cutting Equipment Concrete Saw Concrete Cutting Machine
Henan Yugong Machinery Co., Ltd.- Warranty：2years
- Type：Hydraulic Cutting Machine
- Usage：Fire Brick, Red Brick, Cement Brick, Concrete Curb
- Application：Construction
- Source Voltage：380V
- Automation：Automatic
Base Info
- Model NO.：YG-600S
- Cutting Ability：High Speed
- Control：Artificial
- Certification：ISO, CE
- Diameter of Blade：800-1400mm
- Cutting Depth：620mm
- Max.Working Pressure：180bar,18MPa
- Max.Oil Flow Rate：100L,Min
- Gearing：Gear
- Rotation Speed：450,950,1300rpm
- Weight：38kg
- Color：as Your Request
- Transport Package：Wooden Case
- Specification：400mm*420mm*400mm
- Trademark：YUGONG
- Origin：Henan
- HS Code：846150009
- Production Capacity：500sets,Week
Description

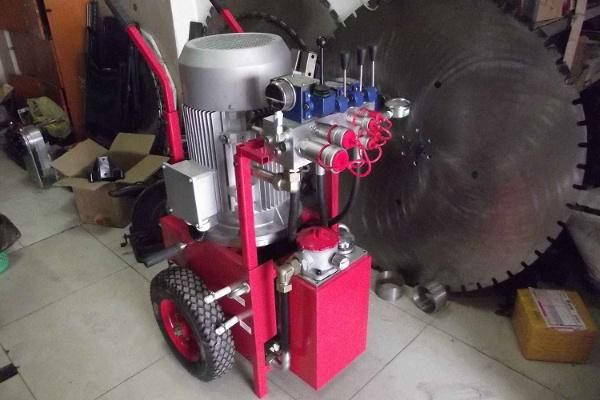

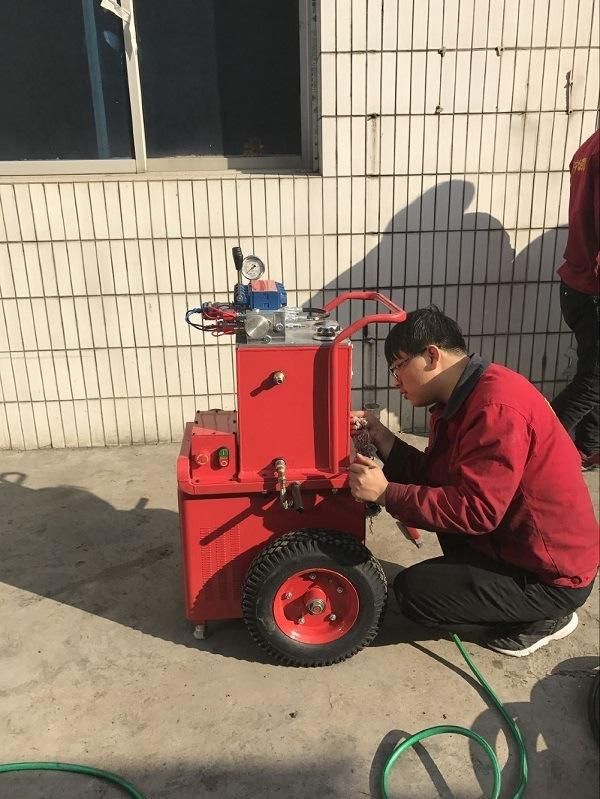

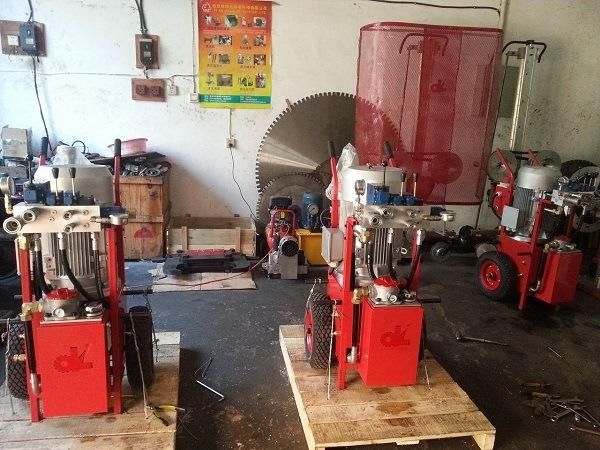

Hydraulic oil pumpModel YG-600p YG-700p Max.power 25KW 30KW Motor cooling method Air cooling water cooling Rated voltage 380V 50HZ 380V-420V 50HZ-60HZ Pressure stages 3 3 Max.operating pressure 200bar/20Mpa 210bar/21Mpa Oil flow rate 30-80L/min 40-100L/min Dimensions 600mm*650mm*1050mm 500mm*520mm*1100mm Weight 220kg 140kg

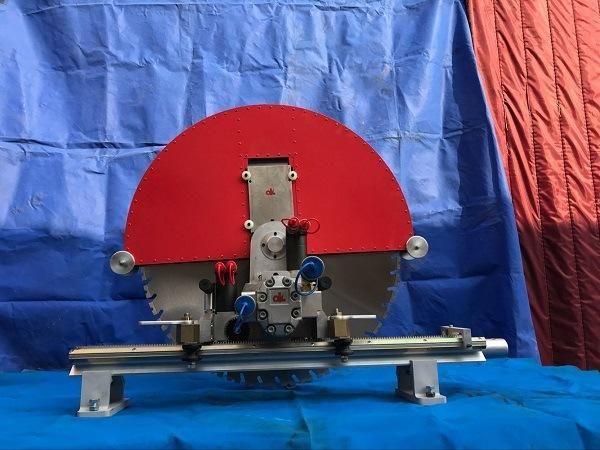

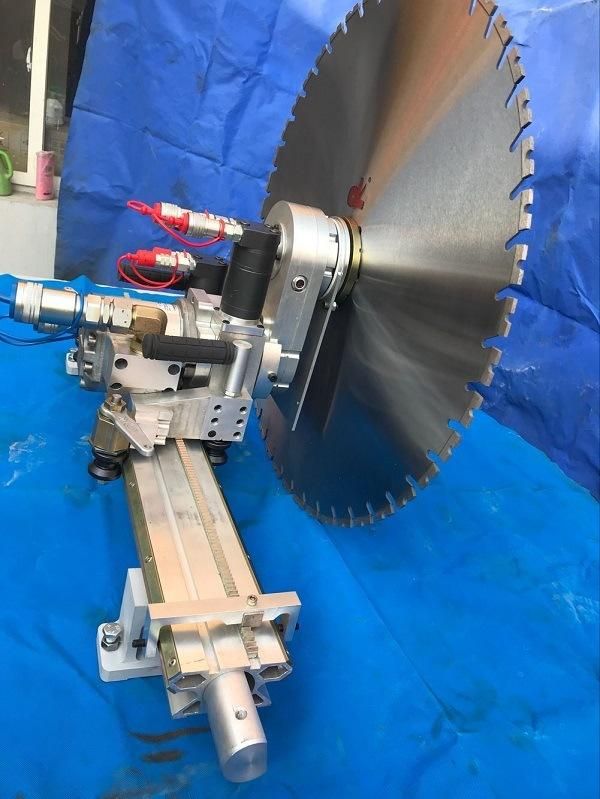

Wall saw: Model YG-600S YG-700S Saw blade diameter range 800-1400mm 800-1600mm Cutting depth 620mm 730mm Max.working pressure 180bar/18Mpa 200bar/20Mpa Max.oil flow rate 100l/min 100l/min Gearing Gear Gear Rotation speed 450/950/1300Rpm 450/850/1200Rpm Dimension 400mm*420mm*400mm 400mm*420mm*400mm Weight 38kg 39kg

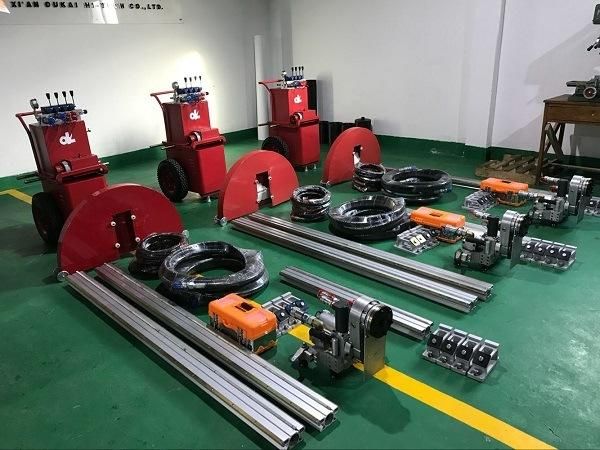

Product Details:
Certifications:
Our Service:Pre-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
Packing & Delivery:
We believe that good product can prove everything, including the quality, the attitude, the newest craftsmanship and the product concept to innovate a good product, every staff is trained and practiced professionally, so we can recommend you the most appropriate equipment. Every machine has to be strictly examined before delivery. Any question about the machine will be replied within 24 hours.We are expecting your arrival and right here waiting for you all the time!
Contat Information:

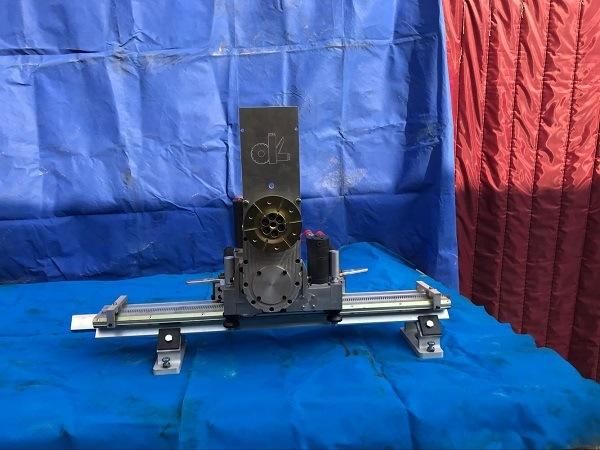

Wall saw:
Product Details:
Certifications:
Our Service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
Packing & Delivery:
Henan Yugong Machinery Co.,Ltd.is a collection of mining equipment, tunnel bridge construction equipment, road surface construction equipment etc. with research and development, production, sales as one of the largest engineering machinery manufacturing enterprises. Main products handled by our company is currently involved in highways, Bridges, tunnels, subway tunnels, high-speed rail, light rail transit mining resources exploitation, coal and non coal mine area.
We believe that good product can prove everything, including the quality, the attitude, the newest craftsmanship and the product concept to innovate a good product, every staff is trained and practiced professionally, so we can recommend you the most appropriate equipment. Every machine has to be strictly examined before delivery. Any question about the machine will be replied within 24 hours.We are expecting your arrival and right here waiting for you all the time!
Contat Information:
