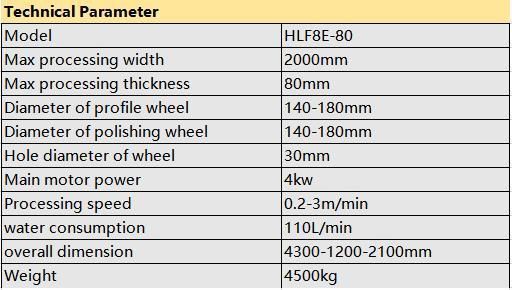

• Model NO.：HL8E-80
• Usage：Ceramics, Granite, Marble
• Application：Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Certification：ISO, CE
• Color：Yellow and Ivory
• Max Processing Width：2000mm
• Max Processing Thickness：80mm
• Diameter of Profile Wheel：140-180mm
• Diameter of Polishing Wheel：140-180mm
• Hole Diameter of Wheel：30mm
• Main Motor Power：4kw
• Processing Speed：0.2-3m,Min
• Water Consumption：110L,Min
• Overall Dimension：4300-1200-2100mm
• Weight：4500kg
• Transport Package：Polypropylene Plastics Packing
• Specification：6300(L)*3600(W)*3100(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month

Basic Info.

Model NO. HL8E-80 Usage Ceramics, Granite, Marble Application Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Certification ISO, CE Color Yellow and Ivory Max Processing Width 2000mm Max Processing Thickness 80mm Diameter of Profile Wheel 140-180mm Diameter of Polishing Wheel 140-180mm Hole Diameter of Wheel 30mm Main Motor Power 4kw Processing Speed 0.2-3m/Min Water Consumption 110L/Min Overall Dimension 4300-1200-2100mm Weight 4500kg Transport Package Polypropylene Plastics Packing Specification 6300(L)*3600(W)*3100(H) Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Product Description

Product Details

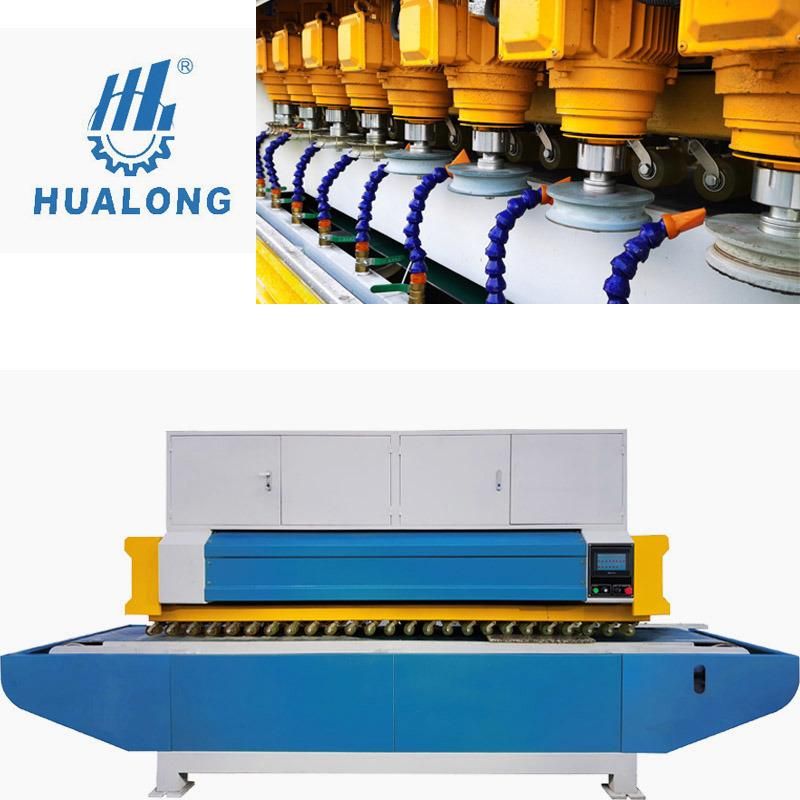

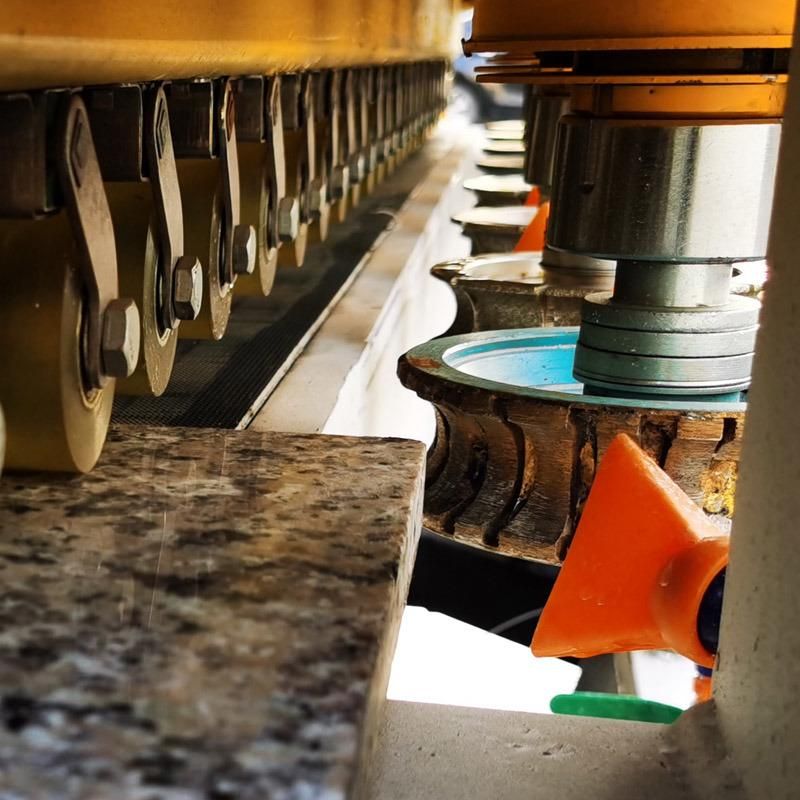

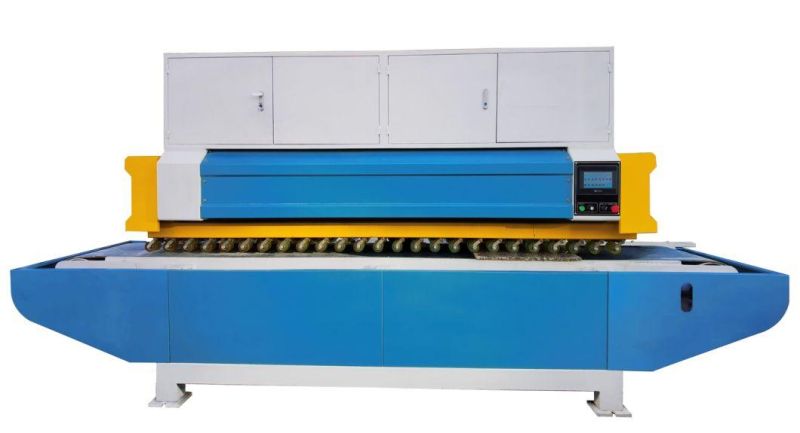

Hualong brand HL8E-80 special-shaped machine fits for edge grinding of marble, granite, artificial stone, ceramics, glass etc., with line processing and full auto. The HL8E-80 with continuous operation reduces the labor cost, improves product quality and ignores the complex clamping  of traditional single head milling machine and replacement of grinding wheel, which is the preferred equipment in  the upgrading of mass grinding stone processing industry.





Functions

1. Tool setting keeps all grinding wheels be consistent.
2.Fast changing wheel saves a lot of time for replacing grinding wheel
3. The automatic compensation of constant pressure replaces the traditional method of compensation to
    maintain the brightness of the surface of the product.

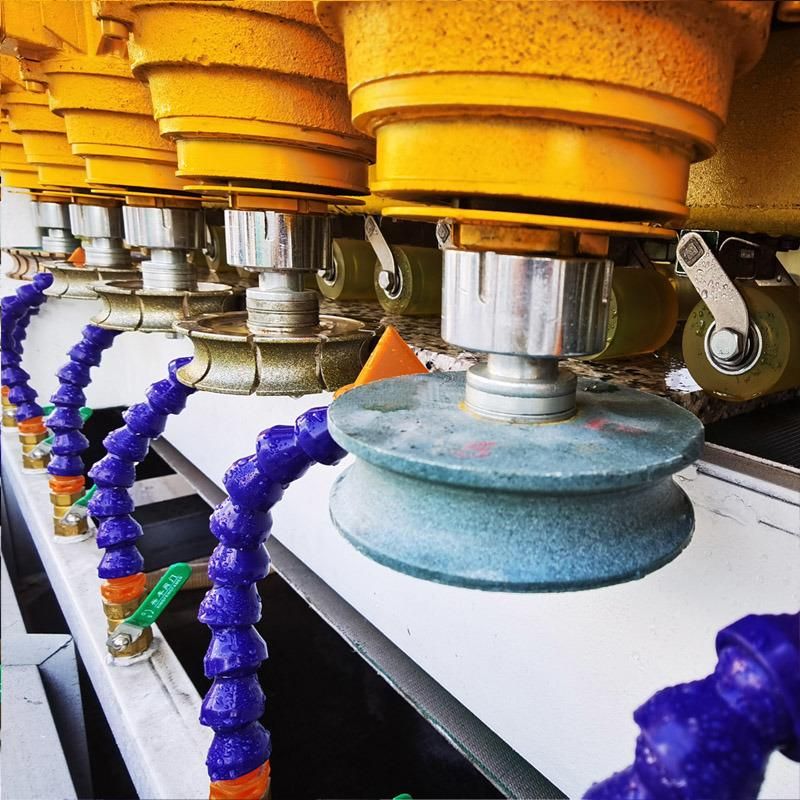

4. The spindle of grinding wheel 30 matches the market grinding wheel, greatly saving the cost of abrasive.
5. Automatic hovering alarm in case of material shortage.
6. Be capable of arbitrary edge shape and the chamfering slotting.

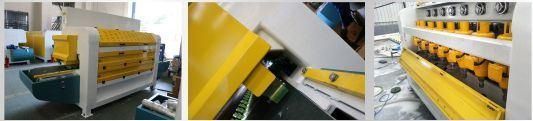

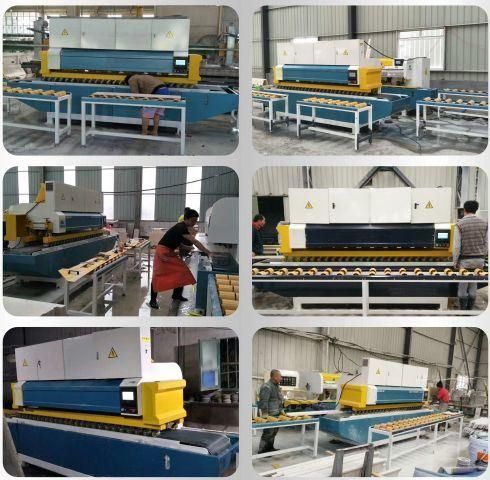

 About machine details

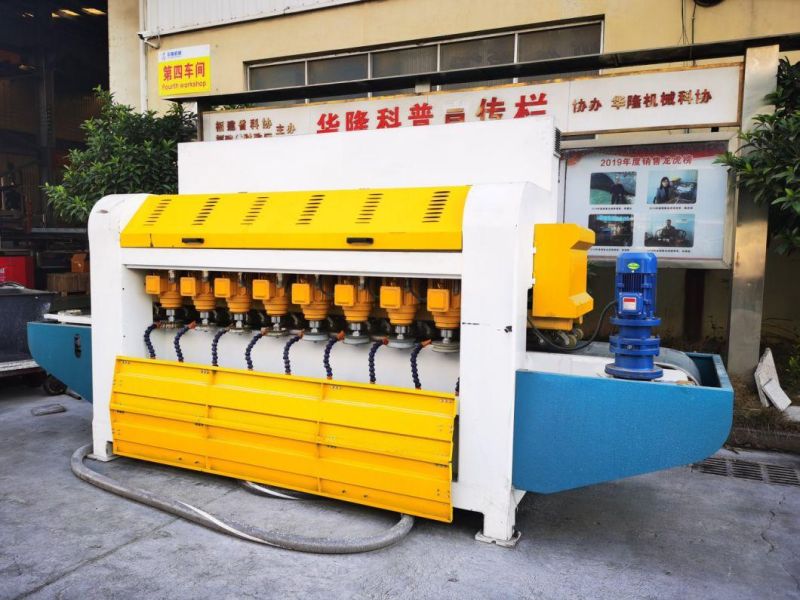

At the back
