Stone Processing Machinery

Home > Product > Stone Polishing & Grinding Machine

XDLS-164 Eleven Head straight-line Edging Machine(1+6+4)

Yunfu City Xinda Machinery Co., Ltd.
  • Type：Stone Polishing Machine
  • Control：PLC
  • Automation：Automatic
  • Precision：High Precision
  • Application：Marble
  • Type for Grinding Machine：Disc Grinding Machine

Base Info

  • Model NO.：XDLS-164
  • Grinding Machine Type：Vibration Polishing Machine
  • Grinding Method：Wet Grind
  • Certification：CE
  • Condition：New
  • Conditiaon：New
  • Container Type：20GP(DC)
  • Transport Package：by Film Package
  • Trademark：XINDA
  • Origin：Yunfu City, China
  • HS Code：84642090
  • Production Capacity：800

Description

Basic Info.

Model NO. XDLS-164 Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification CE Condition New Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84642090 Production Capacity 800

Product Description

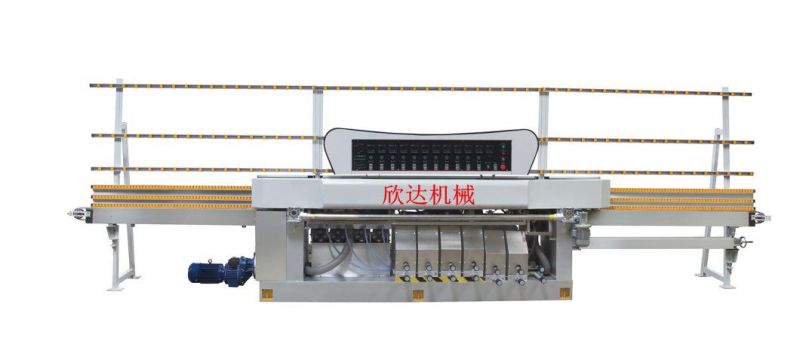

XDLS-164 Eleven Head straight-line Edging Machine(1+6+4)



 Description:
The machine is suitable for grinding all kinds of stone,slotting,chamfer and bevel,processing rough grinding , grinding and polishing by one pass.


Technical parameters:
ParametersXDLS-164
Packing size(L×W×H)4m×1.2m×1.7m
Machine size(L×W×H)7m×1.2m×2m
Timing belt length in/out side2m
Height of timing belt0.8m
Max workpiece weight of frame3000KG
Body weight4000KG
Voltage380V-50HZ
Installed power28KW
Processing speed0.5-4m/min
Min size of stone60mm
Stone Thickness range3-60mm
Motor380V 50-60HZ 2.2-4KW
Base and beamCast iron

Exhibition:XDLS-164 Eleven Head straight-line Edging Machine(1+6+4)FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
