PLC Gantry Type Stone Cutting Machine for Marble Granite Profiling Line

Xiamen Kingrhino Import&Export Co., Ltd.
  • Type：PLC Cutting Machine
  • Usage：Concrete Curb, Granite, Marble
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：DNFX-1800
  • Control：PLC
  • Certification：ISO, CE
  • Gross Weight：5000kgs
  • Warranty：12 Months for Parts
  • Materials：Strong Cast Iron
  • Transport Package：Solid Packaging with Plastic
  • Specification：6000x3600x2500mm
  • Trademark：Kingrhino
  • Origin：Jinjiang, China
  • HS Code：8464109000
  • Production Capacity：100 Set,Month

Description

Basic Info.

Model NO. DNFX-1800 Control PLC Certification ISO, CE Gross Weight 5000kgs Warranty 12 Months for Parts Materials Strong Cast Iron Transport Package Solid Packaging with Plastic Specification 6000x3600x2500mm Trademark Kingrhino Origin Jinjiang, China HS Code 8464109000 Production Capacity 100 Set/Month

Product Description

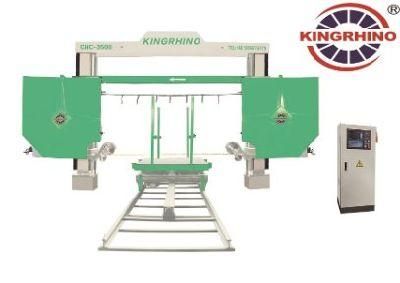

PLC Gantry Type Stone Cutting Machine for Marble Granite Profiling Line


Equipment Features:

This profiling machine can both adopt PLC/CNC system. It can automatically do profiling through diamond circular saws to cut stone with program, uses inverter to control up-down rising and left-right feeding, adjusts the speed according to the stone material. If controlled by CNC system, the machine can achieve higher degree of automation and higher precision cutting.
By using double-blades, it works in higher cutting efficiency and higher stability.
Easy-operation to suit for lines, arc-shaped lines, Roman columns etc.
Besides, the arc-shaped lines can be done if choosing rotating worktable.
