Granite Saw Machine for Cutting Irregular Shape and Various Dimensions Stone

Xiamen Bestlink Factory Co., Ltd.
  • Usage：Ceramics, Granite, Marble
  • Application：Stone Industry

Base Info

  • Model NO.：VS-60
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：Low Speed
  • Control：Control Panel
  • Certification：CE
  • Blade Diameter：750mm-1200mm
  • Condition：New
  • Warranty：1 Year
  • Power：22 , 45 Kw
  • Blade Number：Single
  • Cutting Depth：280-450 mm
  • Color：Customized
  • Transport Package：Nude Packing
  • Specification：3100mm*1600mm*1730mm
  • Trademark：BESTLINK
  • Origin：China
  • HS Code：84791090
  • Production Capacity：100 Sets,Month

Description

Model60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min

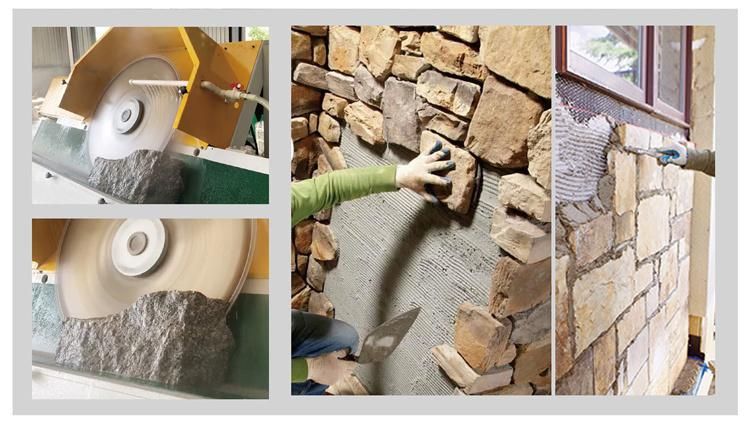

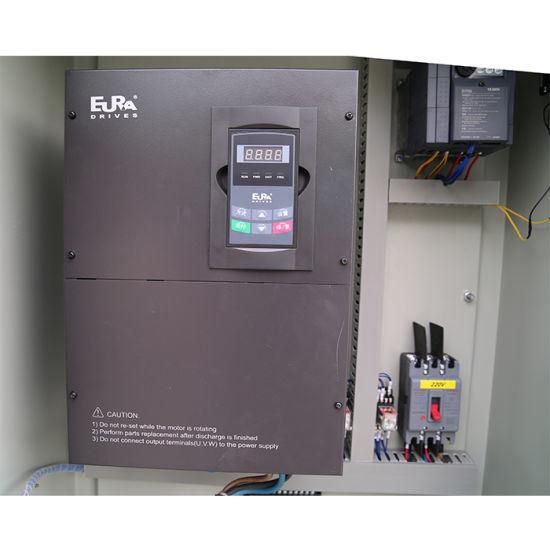

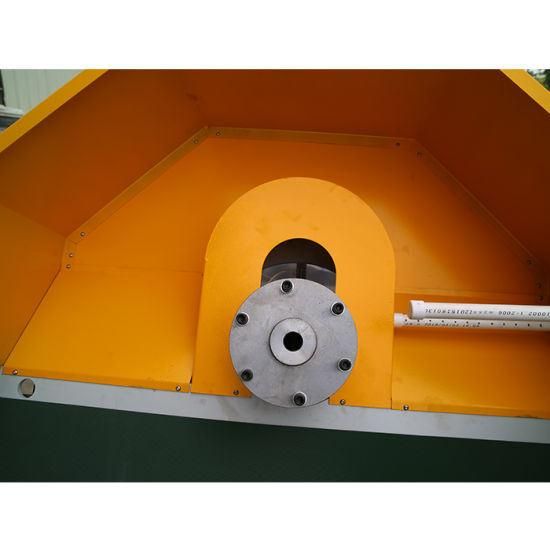

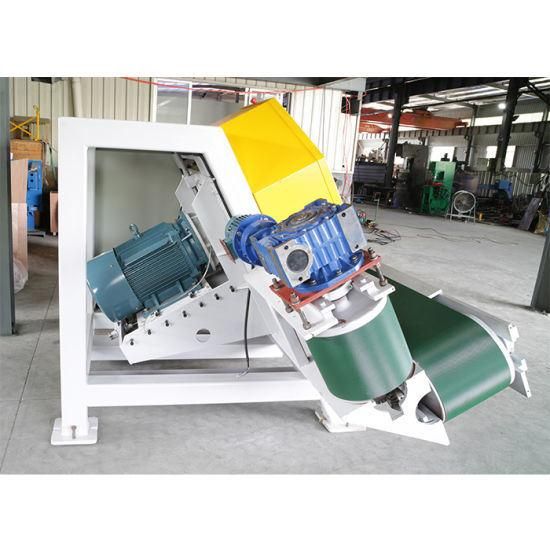

Pictures for the Thin Veneer Saw Machine Detailes:
Granite Saw Machine for Cutting Irregular Shape and Various Dimensions Stone


Granite Saw Machine for Cutting Irregular Shape and Various Dimensions Stone
Granite Saw Machine for Cutting Irregular Shape and Various Dimensions Stone
Granite Saw Machine for Cutting Irregular Shape and Various Dimensions Stone
