• Model NO.：MY-1600
• Application：Ceramics, Glass, Jadestone, Granite, Marble, Acrylic
• Type for Grinding Machine：Disc Grinding Machine
• Certification：ISO, CE
• Condition：New
• Operation：Touch Screen or Button Panel
• Polishing Length：1600mm

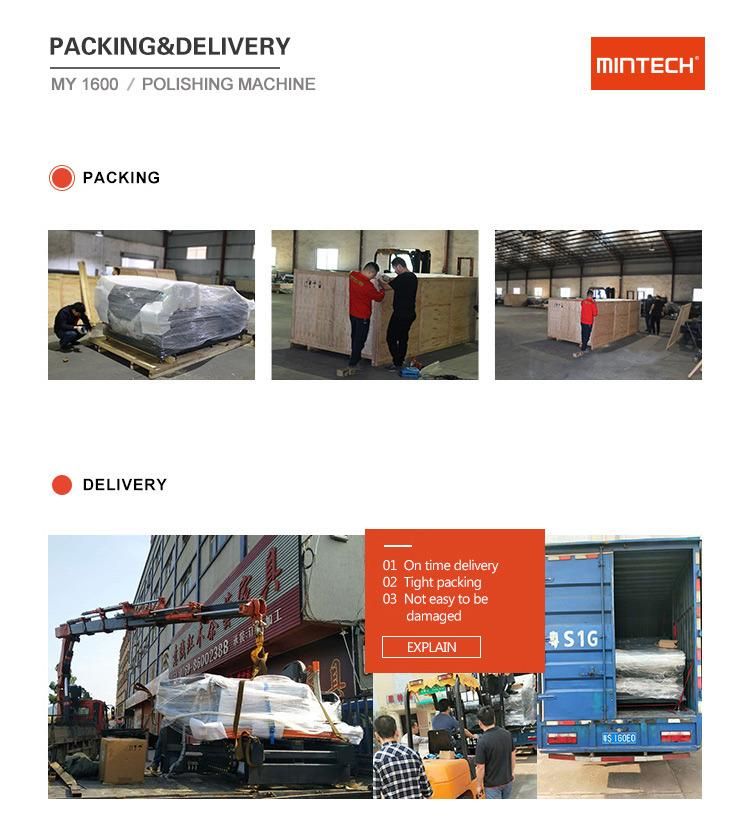

• Transport Package：Safety Package
• Specification：2540*1000*1520mm
• Trademark：Mintech
• Origin：China Guangdong Province
• HS Code：8465930000
• Production Capacity：200unit , Month

Basic Info.

Model NO. MY-1600 Application Ceramics, Glass, Jadestone, Granite, Marble, Acrylic Type for Grinding Machine Disc Grinding Machine Certification ISO, CE Condition New Operation Touch Screen or Button Panel Polishing Length 1600mm Transport Package Safety Package Specification 2540*1000*1520mm Trademark Mintech Origin China Guangdong Province HS Code 8465930000 Production Capacity 200unit / Month

Product Description

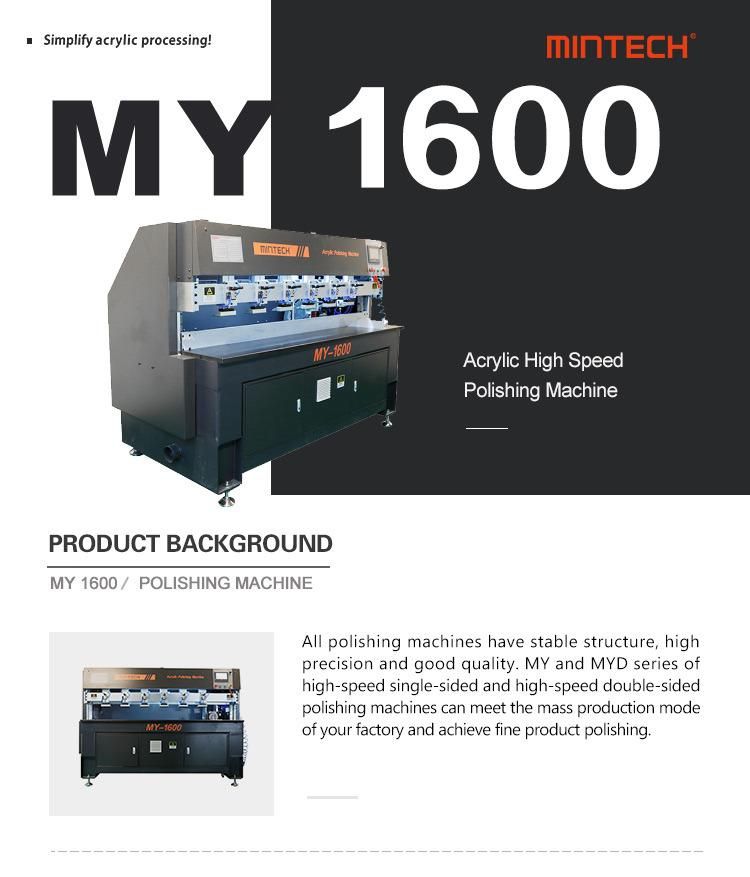

High Speed 2540X1000X1520Mm Ball Screw Diamond Edge Polishers For Acrylic

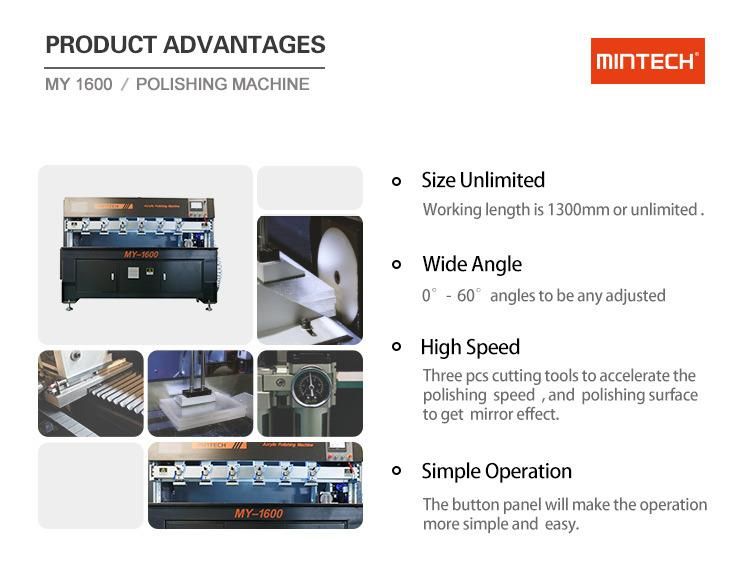

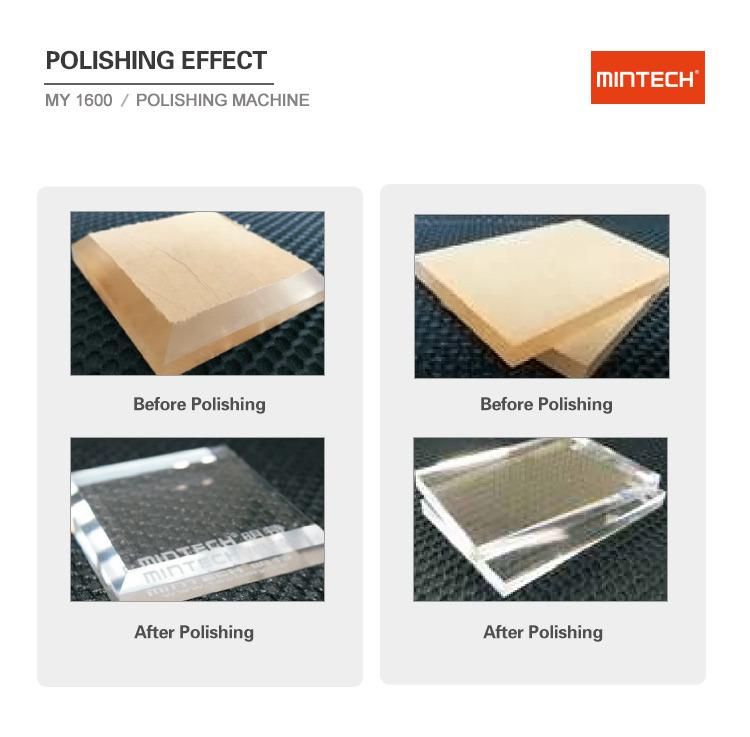

The machine is mainly used to polish acrylic,plexiglass, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to process material finely and get mirror finish cutting surface. After polished, the products are high transparent, non-discoloring, especially perfect as light guide plate.

Model	MY-1600	Remarks
Machine size	2540*1000*1520mm
Main structure	Steel structure	heat treatment
Work area	T110mm,L1600mm
Working thickness	0~110mm
Working depth	0-2mm	adjustable
Spindle speed	7000~9000RPM	adjustable
Work speed	0~1000mm/min	adjustable
Bevel polishing	0°~60°	adjustable
Cutter feed method	Cylinder propulsion
parameter adjustment	Manual adjustment
Machining model	Cutter feed
Speed regulation	Frequency conversion
Program control	PLC
Machine power	2KW AC 50~60hz,3ph 380V
Compressed air	0.6~0.8Mpa
Machine weight	1300KG
Cutter	Three blade

FAQ
Q:I knew nothing about this machine, what kindof machine i should choose?
A:Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.

Q:What technical services can you provide?
A:We will send video and English manual with the machine. And 24-hour professional technicians online training and problem solving. It provide detailed installation courses.

Q:If some problems happen to this machineduring warranty period, what should I do?
A:We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long after-sales service. So any doubts, just let usknow, we will give you solutions.

If you have any other question,just feel free to contact us.Welcome your inquiry.
