• Model NO.：HLSQ-650
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：Siemens PLC
• Certification：ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*2000
• Touch Screen：Siemens
• Gearing：Rack Gear
• Head Rotation：0,90,180,270 Degree
• Head Tilting：0,45 Degree
• Table Rotation：0-360 Degree
• Table Tilting：0-85 Degree
• Max. Cutting Thickness and Length：100mm,3300mm
• Transport Package：Polypropylene Plastics Packing
• Specification：5750(L)*3600(W)*3400(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month
• Package size per unit product：575.00cm * 360.00cm * 340.00cm
• Gross weight per unit product：5800.000kg

Basic Info.

Model NO. HLSQ-650 Source Voltage 380V Automation Automatic Cutting Ability High Speed Control Siemens PLC Certification ISO, CE Color Red and Ivory Guide Rail Linear Guide Dimensions of Working Table 3300*2000 Touch Screen Siemens Gearing Rack Gear Head Rotation 0/90/180/270 Degree Head Tilting 0/45 Degree Table Rotation 0-360 Degree Table Tilting 0-85 Degree Max. Cutting Thickness and Length 100mm/3300mm Transport Package Polypropylene Plastics Packing Specification 5750(L)*3600(W)*3400(H) Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Packaging & Delivery

Package size per unit product 575.00cm * 360.00cm * 340.00cm Gross weight per unit product 5800.000kg

Product Description

Full Automatic Bridge Stone Cutting Machine HLSQ-650 with function of 0°-90°-180°-270° full automatic positioning, chamfering and cutting,  is suitable for  processing stone slab cut to size, tombstone, skirtboard etc.



Main Features

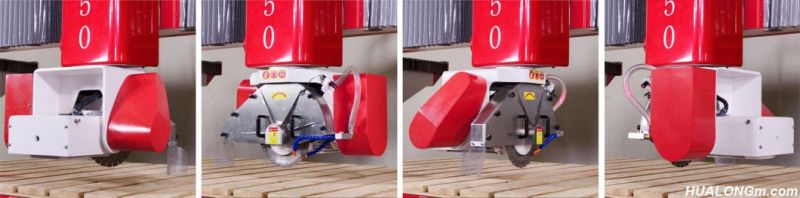

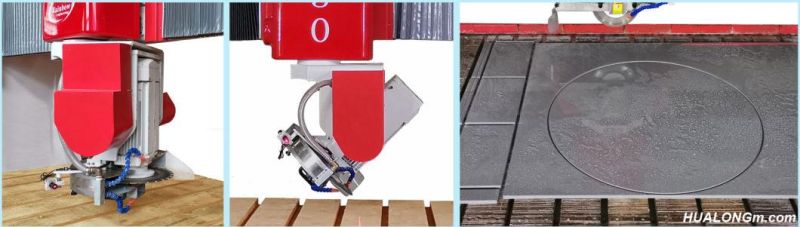

1.Blade can tilt 0-90° ,full automatic vertical and horizontal switch cutting repeatedly by one-button, 0°-90°-180°-270° automatic positioning chamfering cutting.

2.Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.

3. Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.

4. Using Siemens PLC control system with and touch-sensitive screen offer friendly and inteligent control.

5. Electric components adopts Siemens or Schneider brand

6. Laser checking and calibration instrument to aid in lining up the cut.



Technical Data

Name	Unit	HLSQ-650
Diameter of saw blade	mm	Ø400-Ø650
Dimension of working table	mm	3300x2000
Max. Length of horidontal cutting	mm	3300
Max. Cutting thickness	mm	200
Max. Lifting stroke	mm	300
Power of main motor	kw	15
Power of cutter frame reciprocationg motor	kw	1.1
Power of crossbeam shifting motor	kw	1.5
Power of hydraulic station motor	kw	2.2
Power of lifting motor	kw	1.5
Gross power	kw	21.3
Water consumption	M3/h	2
Dimensions (L x W x H)	cm	575x360x340
Gross Weight	kg	5800

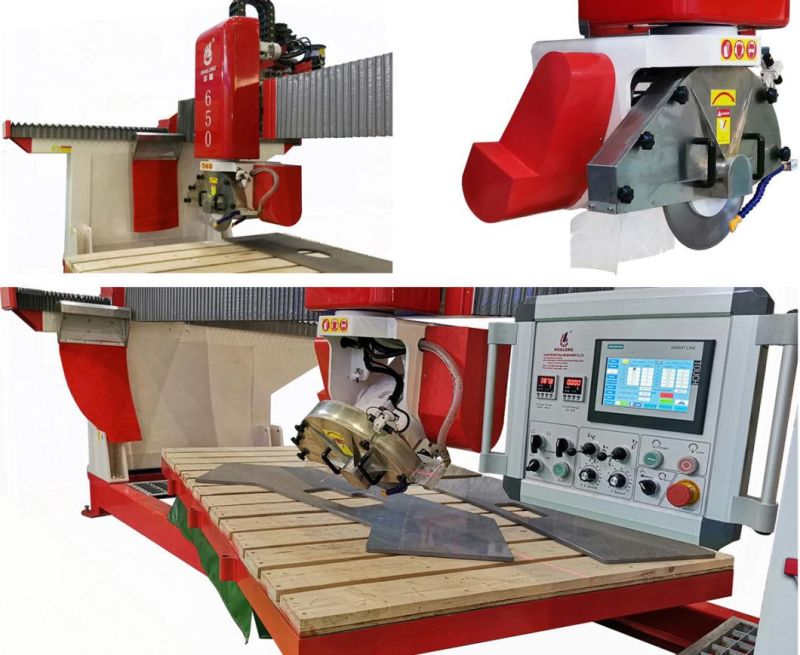

Detailed Images

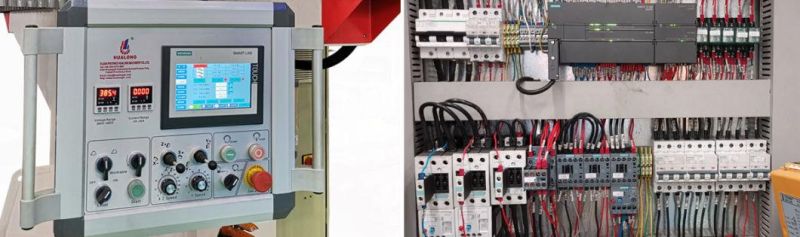

Control system

Brand: Siemens

Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions.

Electric components in international standards, such as Siemens, Schneider and Sanch,  to be easily sourced.

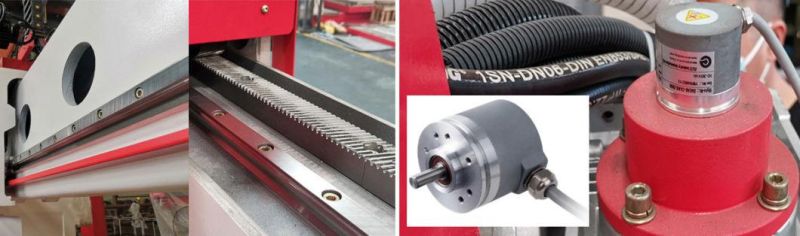

Linear Guide

Brand: Hiwin                Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance and long lifespan.Incremental Encoder

Incremental Encoder

Brand: ELCO from Germany
For the determination of head movement in  X, Y, Z direction and worktable rotation to ensure position precision without the slightest deviation.

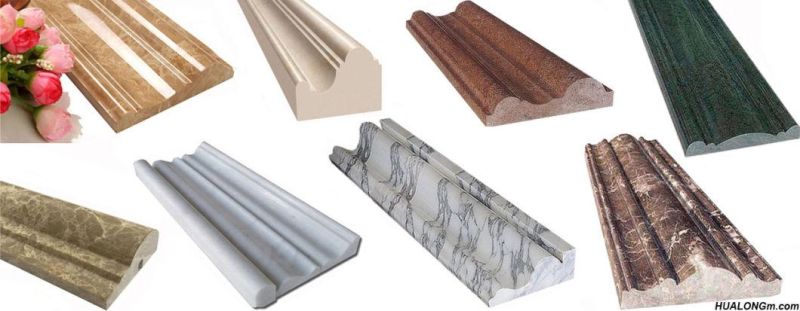

Processed Products

If required, add a (optional) profiling module to the stone machine, special-shaped stone lines can also be made for decorating door frames, windows, columns and walls, etc.

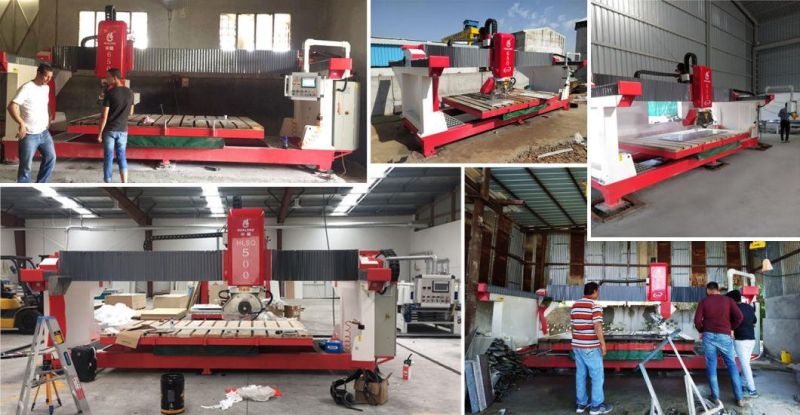

Custmers' Spot

Quality Fabrication Equipment

*  Made with 20 years+ expertise and patents.
*  Many machines available to order
*  Experienced techs for all your questions
*  Customization available

Parts & Accessories

*  Quick supply for needs
*  Troubleshooting by phone, e-mail, or WhatsApp/Skype
*  Machine maitenace and field tranining

Experienced Service & Training

*  Service available for all our machines
*  Installation and operation training for any machine
*  Qualified and experienced technicians avialble to overseas
*  Dedicated to serving your needs

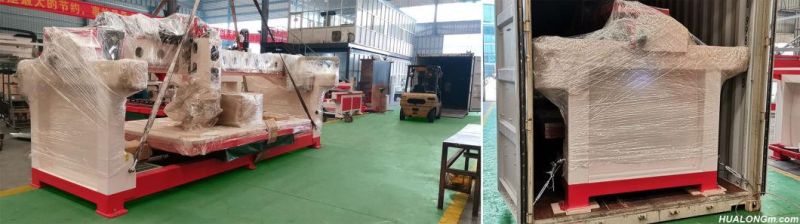

Packaging & Shipment

1. All parts wrapped by waterproof PE film and/or air bubbles.
2. Spare and accessary parts of small size packed in plywood cartons.
3. With steel ropes to fix in container, anti-skid suitable for long distance shipment.

FAQ
Q: Are you a manufacturer or trading company?
A: We are manufacturer, one of the leading stone machinery manufacturer in China. And we can provide one-stop shopping service.
Q: When will you ship my order ?
A: Normally 25-30 days after deposit received, If urgent, it can be negotiated further.
Q: What's the warranty time ?
A: One year.
Q: Does this machine pass CE certificate?
A: Yes, this machine passed European CE certificate and meet safety standard.
Q: How to get the most suitable model with competitive price?
A: Please let me know: 1) what material you want to process? , what's the max size?

                                     2) the mainly functions or processed effect you need?                                     3) If possible, show us your sample pictures for reference.

With your idea, we will recommend you the proper model with right functions and capability.
