Power Saving High Horsepower Wire Saw Machine

Fujian Ningde Aqt Imp. & Exp. Co. Ltd
  • After-sales Service：7 Days 24 Hours
  • Warranty：3 Years
  • Type：Wire Saw Machine
  • Usage：Jadestone, Concrete Curb, Granite, Marble
  • Application：Stone Industry, Stone Quarry
  • Source Voltage：380V

Base Info

  • Model NO.：ZY70YG
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：PLC
  • Certification：ISO, CE
  • After-Sales Team：20 Professional Teams
  • Customer Service：Provide 24 Hours Service
  • Transport Package：by Polywood
  • Specification：2500*1600*1530mm
  • Trademark：Stonewine
  • Origin：China
  • HS Code：84641020
  • Production Capacity：5000

Description

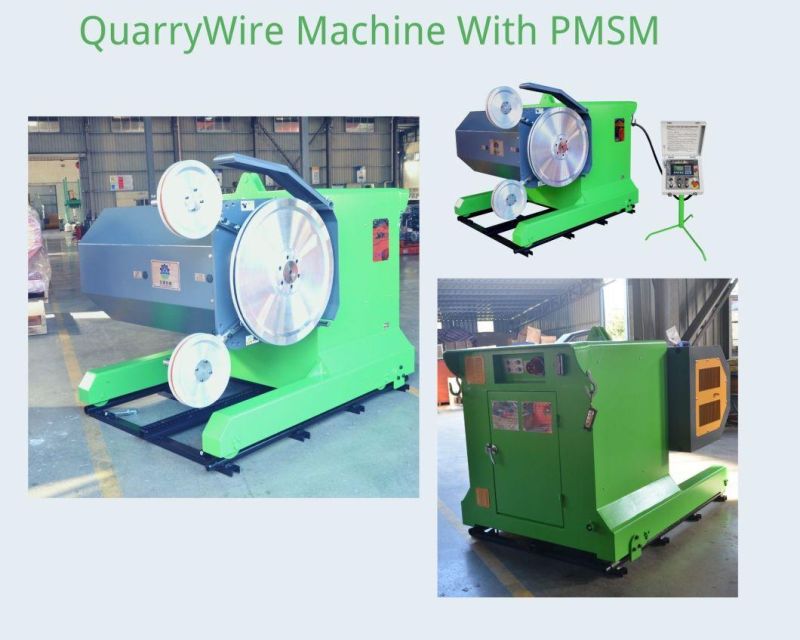

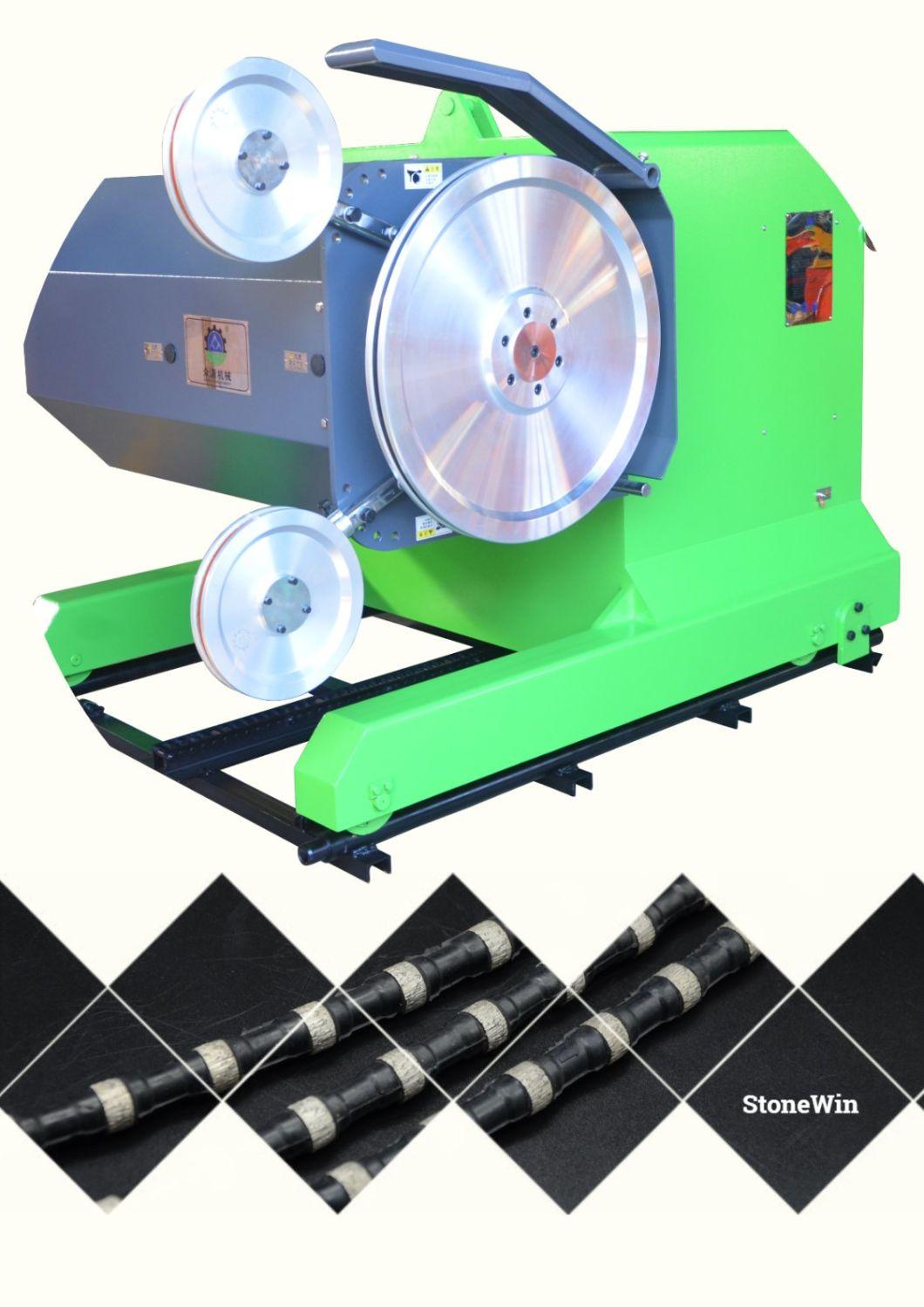

ZY-Y SERIES QUARRYING WIRE SAW MACHINE WITH PMSM PARAMETERMODELZY-70YG-12PCUTTING MATERIALGRANITEMAIN MOTOR POWER70KWFLYWHEEL DIAMETERΦ800mmWIRE SAW SPEED0-33m/sMAX.WIRE SAW LENGTH20-150 metersWALKING MOTOR POWER1.5kw(2HP)LATERAL MOVING DISTANCE500mmMAX.LATERAL CUTTING DISTANCE1900mmROTATION ANGLE360°MACHINE WALKING SPEED0-90m/hRAIL LENGTH2m*3+1m(7m)ALLOWED WORKING TEMPERATURE-15ºC~+40ºCDIMENSION2500*1600*1530mmNET WEIGHT3.5T
