Porcelain Bridge Saw 45 Degree Chamfer Stone Edge Cutting Machine

Zhejiang Haigong Machinery Co., Ltd.
  • Type：Stone Polishing Machine
  • Control：CNC
  • Automation：Automatic
  • Precision：High Precision
  • Application：Granite, Marble, Porcelane
  • Type for Grinding Machine：Special Grinding Machine

Base Info

  • Model NO.：ZD-TM3200Y
  • Grinding Machine Type：Vibration Polishing Machine
  • Grinding Method：Wet Grind
  • Certification：ISO, CE
  • Condition：New
  • Working Width：35-3200mm
  • Transport Package：Suitable Packaging for Ship by Sea
  • Specification：ZD-TM3200Y
  • Trademark：ZHENGDA, HAKON
  • Origin：China
  • HS Code：8464909000
  • Production Capacity：500 Sets ,Month

Description

Basic Info.

Model NO. ZD-TM3200Y Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification ISO, CE Condition New Working Width 35-3200mm Transport Package Suitable Packaging for Ship by Sea Specification ZD-TM3200Y Trademark ZHENGDA/ HAKON Origin China HS Code 8464909000 Production Capacity 500 Sets /Month

Product Description

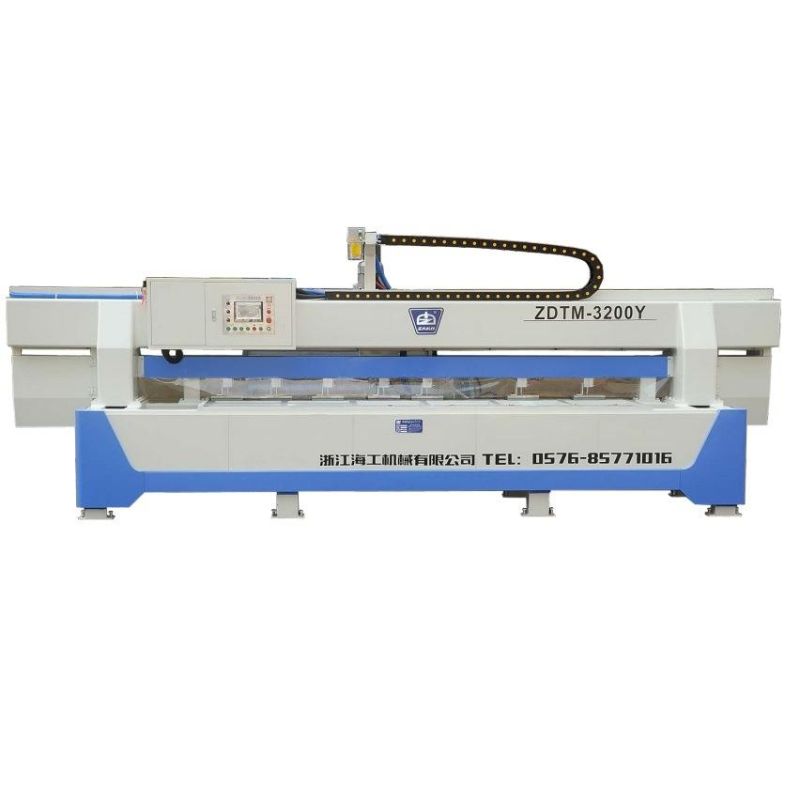

Porcelain Bridge Saw 45 Degree Chamfer Stone Edge Cutting Machine

Stone Edge Cutting Machine Marble Bridge Saw 45 Degree Chamfer for Countertop

  • STRUCTURE AND FEATURES:
  1. Bridge structure design, excellent waterproof effect, and the overall body is strengthened to reduce vibration during processing.
  2. The linear guide rail is adopted and the plate cylinder is compressed and fixed, so that the machine head travels more accurately during processing and avoids the size of the head.

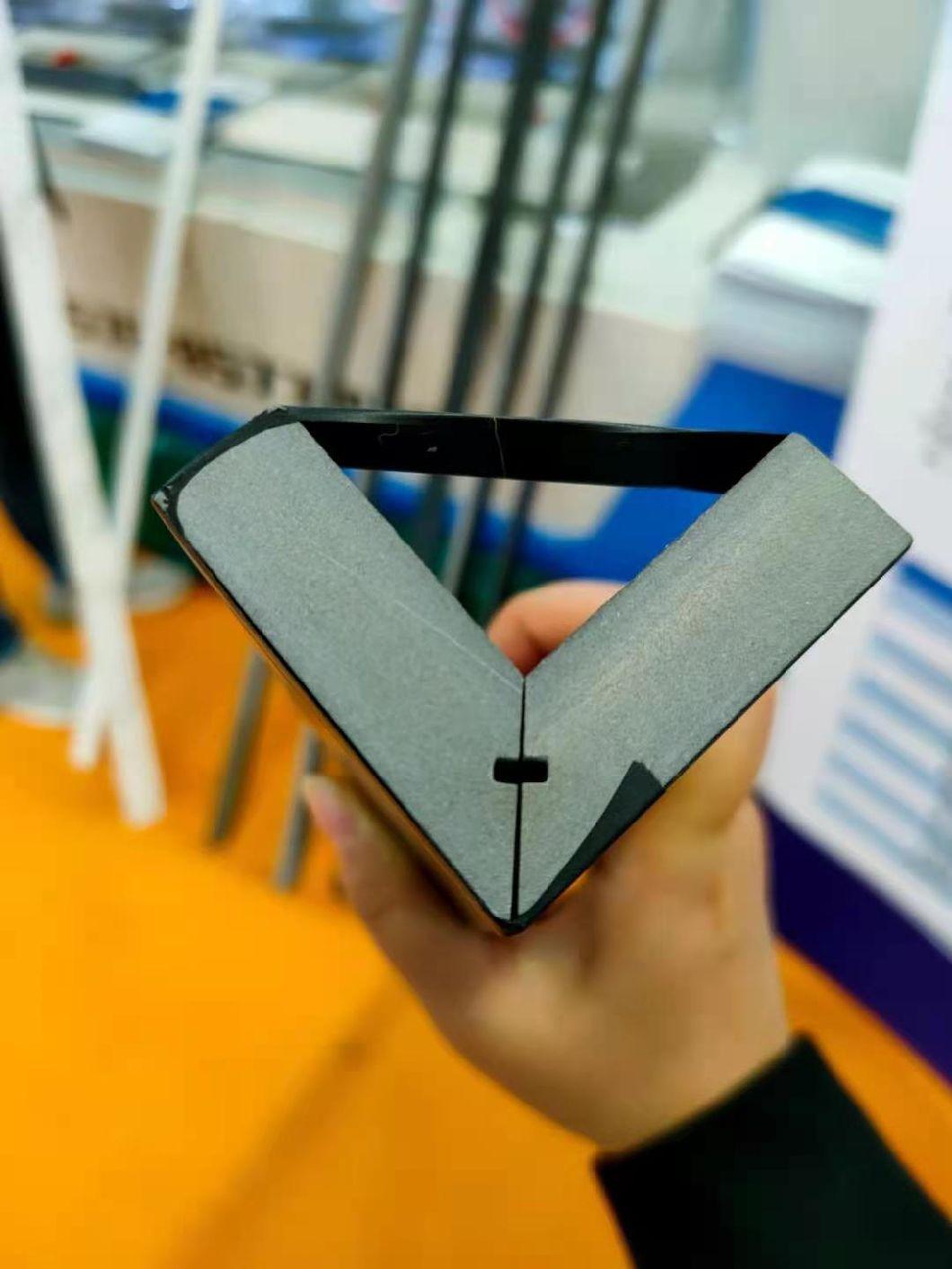

  3. Quartz, marble, and granite can be cut directly with a blade at 45 degrees; porcelain slabs (ceramic tiles) are cut by a blade first and then grinding. After processing, there is no chipping or corner loss.
  4. According to the tabletop processing technology, to realize the left and right L-shaped and U-shaped splicing, a connection port is required.
  • MAJOR TECHNICAL PARAMETERS:
  •
  • Processing size 25 x 3200mm
    Max. Processing thickness≤20mm for porcelane, ≤30mm for quartz and artificial stone
    Total power12.75 kw
    Outline dimension5950*1450*1300mm
    weight3000kgs

Porcelain Bridge Saw 45 Degree Chamfer Stone Edge Cutting Machine



Porcelain Bridge Saw 45 Degree Chamfer Stone Edge Cutting MachinePorcelain Bridge Saw 45 Degree Chamfer Stone Edge Cutting Machine
