• Model NO.：PE400*600
• Compressive Strength (For Crushing)：Less Than 320MPa
• Crushing Degree：Coarse Crusher
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Size of Feeding：400*600mm
• Max Feeding Size：350mm
• Adjustable Size of Discharge：40-100mm
• Capacity：16-65tph
• Transport Package：Container or Wooden Cases
• Specification：1700*1800*1650mm
• Trademark：YUFCHINA
• Origin：China
• Production Capacity：50 Sets Per Month

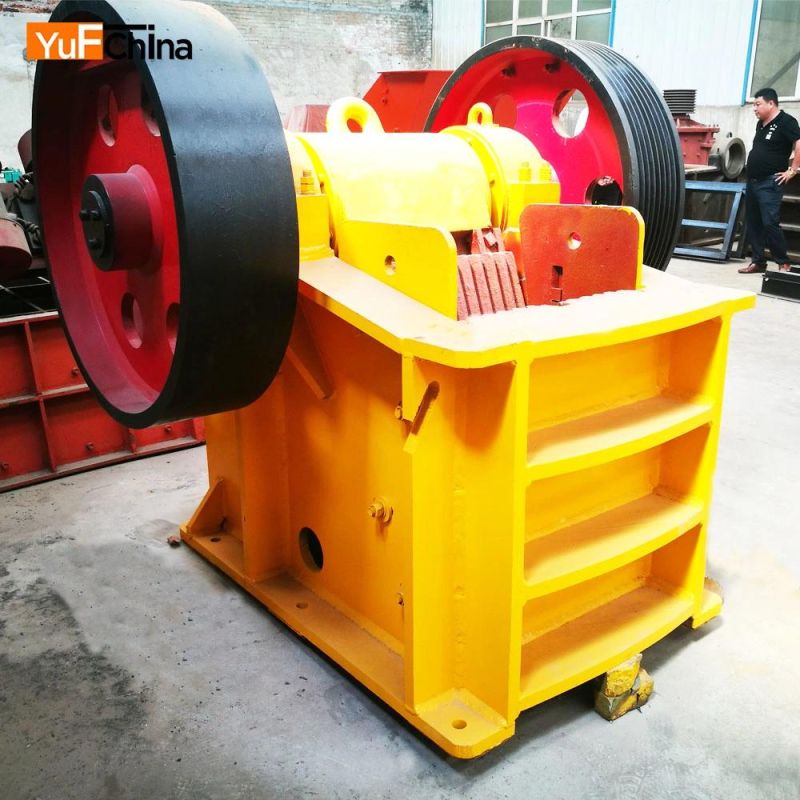

A Jaw Crusher uses compressive force for breaking material.


Jaw Crushers are used extensively throughout the world by the aggregate, mining and recycle industries. Their large physical size and rectangular feed opening enable them to receive a larger feed size than most other types of crushers. Rugged construction, simplicity of design and the ability to crush most types of material, including hard abrasive stone, make them ideally suited for use as the primary crusher within a crushing circuit.


Jaw Crushers are sized by the top opening of the crushing chamber. For example, a 32 x 54 Jaw Crusher measures 32" from jaw die to jaw die at the top opening or gape opening and 54" across the width of the two jaw dies. The narrower bottom opening of the crushing chamber is used to size the discharge material.

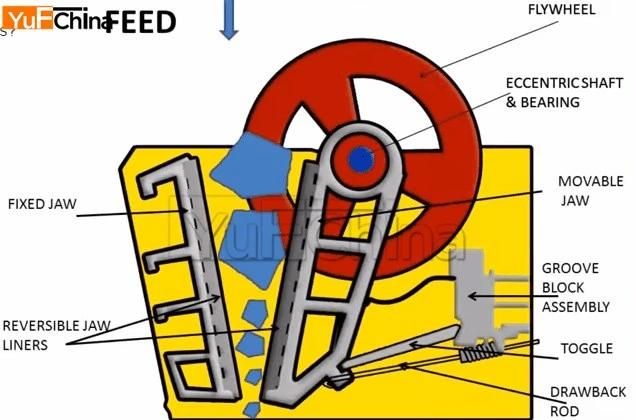

Rock crusher working principleThe Jaw crusher gets its name from the type of crushing surface used. This surface is literally two jaws.
the working principle and application of this machine are similar: the movable jaw has its maximum movement at the top of the crushing chamber, and minimum movement at the discharge point. The motion is, however, a more complex one than the Dodge motion, being the resultant of the circular motion of the eccentric shaft at the top of the swing jaw. combined with the rocking action of the inclined toggle plate at the bottom of this jaw. The motion at the receiving opening is elliptical; at the discharge opening, it is a thin crescent, whose chord is inclined upwardly toward the stationary jaw. Thus, at all points in the crushing chamber, the motion has both, vertical and horizontal, components.
It will be noted that the motion is a "rocking" one. When the swing jaw is rising, it is opening, at the top, during the first half of the stroke, and closing during the second half, whereas the bottom of the jaw is closing during the entire up-stroke. A reversal of this motion occurs during the downstroke of the eccentric.

Stone jaw crusher application

Stone Crushing
Concrete Crushing
Asphalt Crushing
Ore Crushing




Jaw crusher and Advantages

1. High efficiency and low operation cost
2. Flexible capacity
3. Simple structure and easy to operate
4. Over loading protection
5. Easy replacement of wearing parts
6. Long service life
7. High reliability
8. Wide ranges of choices
9. Alternative ordinary and hydraulic types

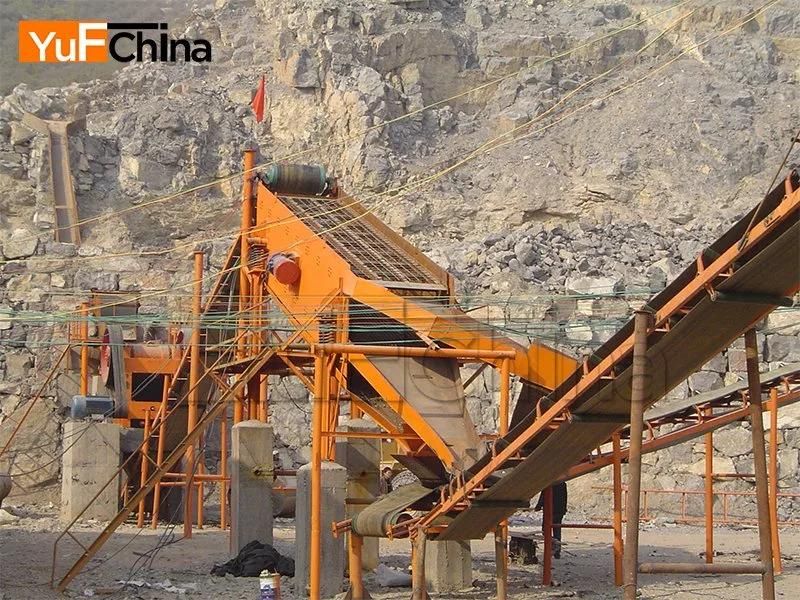

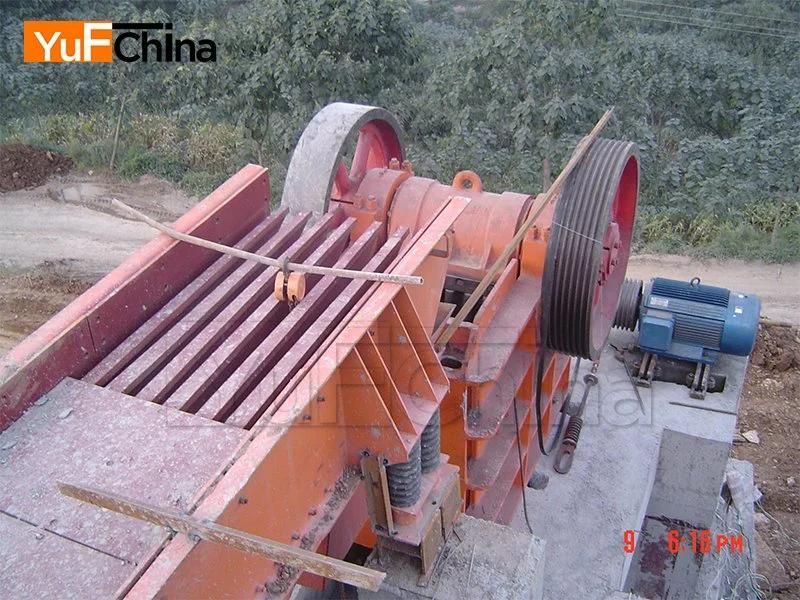

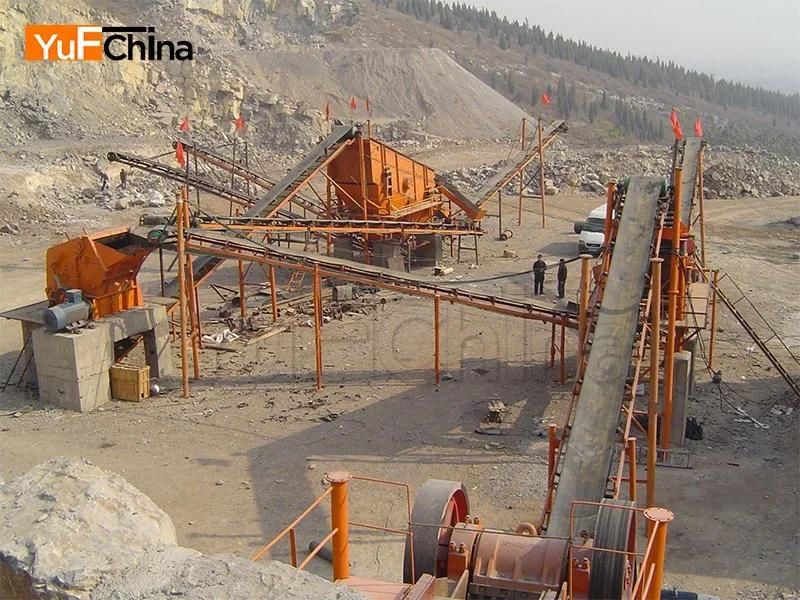

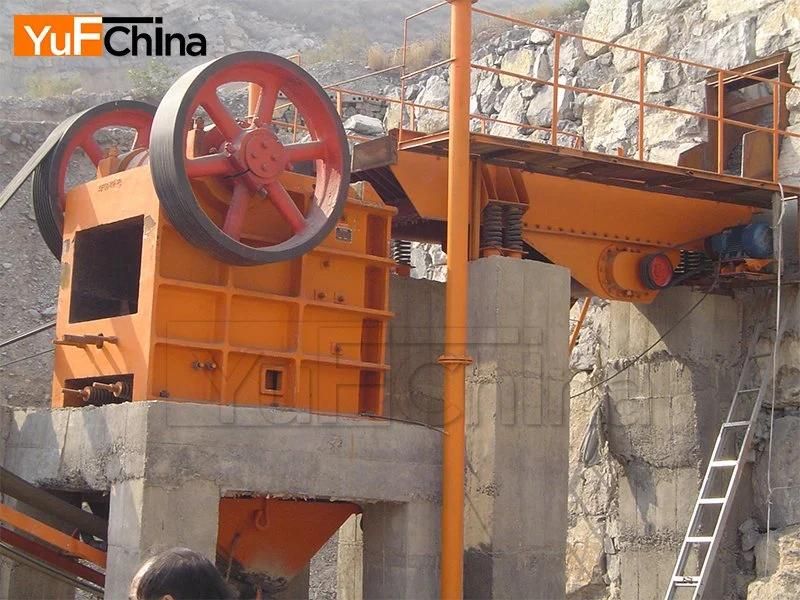

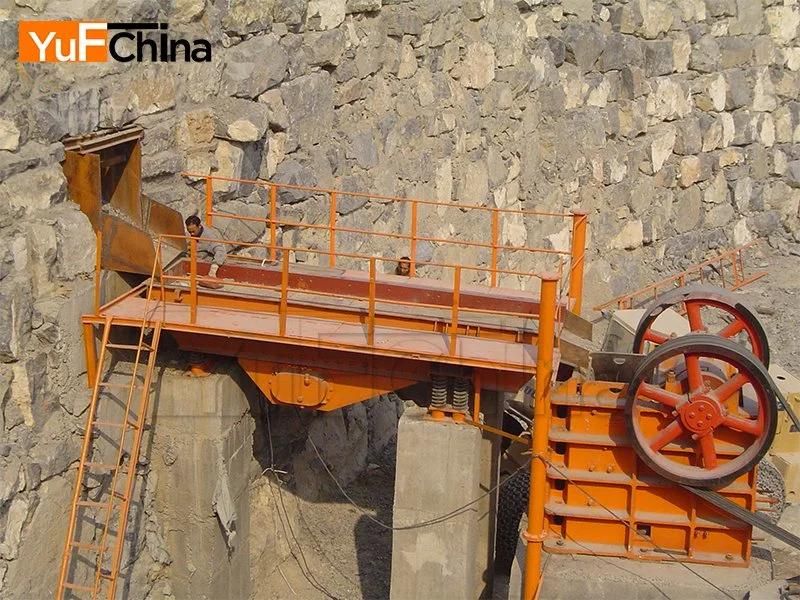

Jaw crusher working site photos

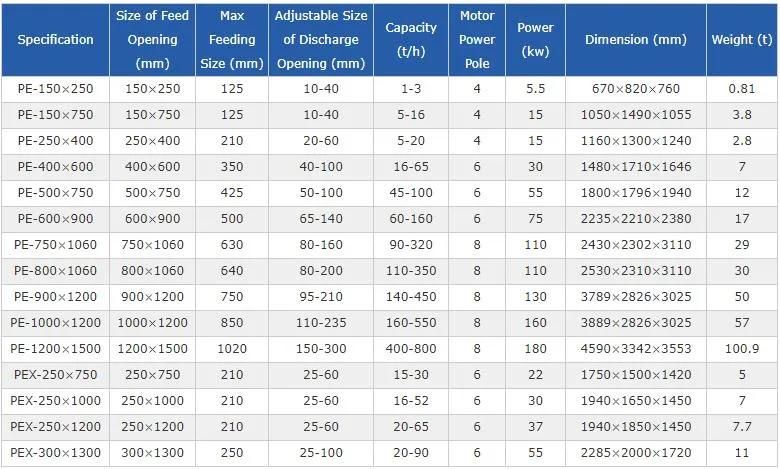

Jaw crusher technical data





Our Services

Pre-sale
1. Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer's special demand.
2. Design the most reasonable project and maximum customers' profit.
3.Provide engineers to scene to plan work site if the customer needed.
4. Provide equipment list, design drawing, construction drawing, equipment install drawing.

After Sale's Service:
a.1 year warranty ,if the machine break is by quality detect not personal reason or natural disaster ;
c. Easy break spare parts not include .Engineer installation abroad and teach you master the skill to produce wood pellet;
c. Supply you the spare parts with favorable price all the machine life time;
d. Caring service, carefully manufacture and desirable price make customers at ease.
