• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：170mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stop at Any Position
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Motor：15 Kw 20HP
• Transport Package：Plastic Packing
• Specification：Dimention (L*W*H): 6*5*3.05m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Cut Length 3200mm Cut Width 2000mm Cut Thick 170mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stop at Any Position Blade Tilting 0-45 Degree for Miter Cut Spindle Motor 15 Kw 20HP Transport Package Plastic Packing Specification Dimention (L*W*H): 6*5*3.05m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

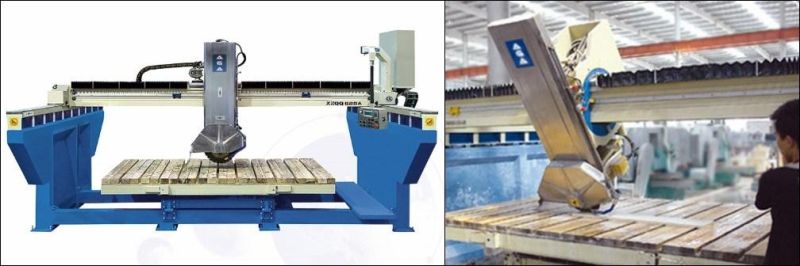

Monoblock Granite Bridge Saw with 45 Degrees Miter Cut Cutting Countertops Automatically
Product No.XZQQ625A

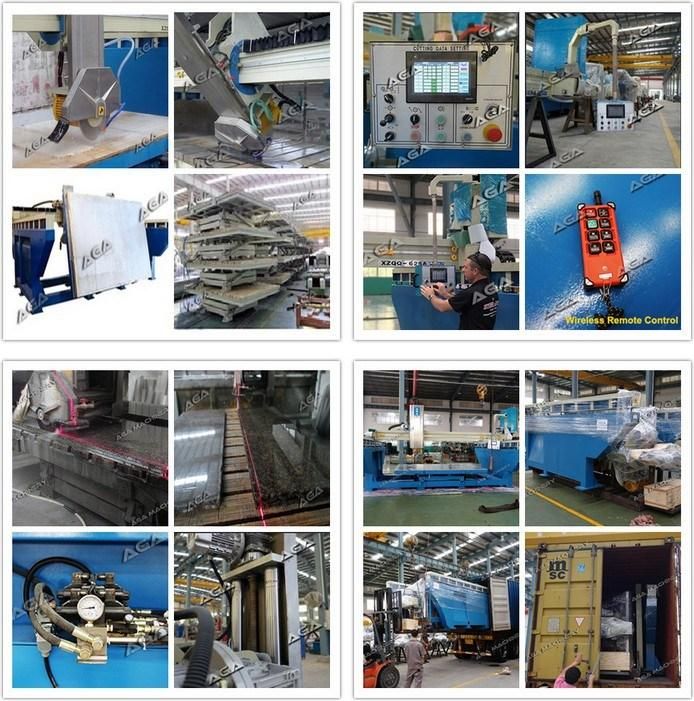

CNC bridge saw XZQQ625A is made with a power motor 20HP, full of options including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.
1) Miter Cut Range:0°-45°(Powered by Z hydraulic piston)
2) Powered table rotating: 0°-360°, stopping automatically at 45°,90°, and any angle
3) Table tilting: 0°-85° hydraulic
4) Cutting size: 3200mm×2000mm×170mm 126'"×78.7"×6.7"
5) Color display control panel: all functions are operated on the color touch screen
6) Wireless remote: provides easy control of the saw
7) Laser pointer: laser guide gives precision cutting every time.


Stone bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Granite bridge saw shipped out to the world market: an advanced machine will return you much more in the business.


FAQ:1) Payment:
T/T in advance, we accept 30% deposit and 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, stone saw, granite saw, bridge saw, slab cutting machine, granite cutting machine, marble cutting machine, stone cutting machine, tiles cutter, cnc machine, cnc cutting machine, china cutting machine, china bridge saw,  etc.
