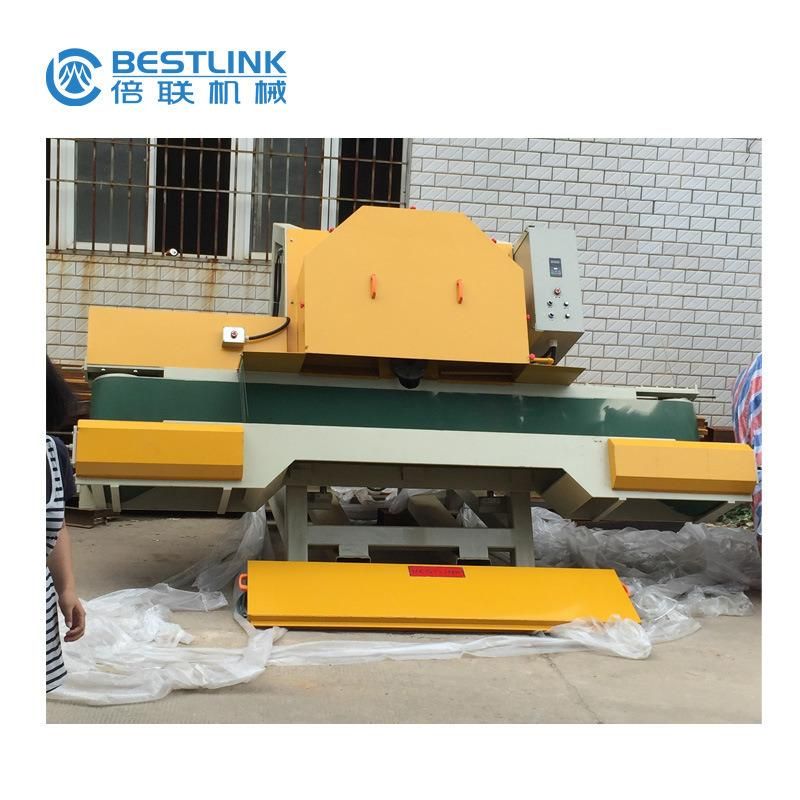

30HP Granite Stone Thin Veneer Saw Cutting Machine

Xiamen Bestlink Factory Co., Ltd.

After-sales Service：Online Support
Warranty：1 Year
Type：Hydraulic Cutting Machine
Usage：Granite, Marble
Application：Stone Industry
Source Voltage：380V

Base Info

Model NO.：30HP
Automation：Automatic
Cutting Ability：Medium Speed
Control：Artificial
Certification：CE
Style：Saw Cutting
Suitable Material：All Kind of Stone
Power：Electric Driven
System：Hydraulic
Transport Package：Exported Standard Wooden Case
Specification：CE
Trademark：BESTLINK
Origin：Xiamen, China
HS Code：84791090
Production Capacity：5000 PCS , Month

Description

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min 30HP Granite Stone Thin Veneer Saw Cutting Machine

30HP Granite Stone Thin Veneer Saw Cutting Machine

30HP Granite Stone Thin Veneer Saw Cutting Machine
