• Model NO.：DW1325
• Certification：CE, ISO, CCC
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• X,Y Working Area：1300mmx2500mm
• Z Working Area：>120mm
• Resolution Ratio：0.005mm
• Drive Motor：Stepper
• Tramsmission：Xy Gear Rack, Z Ball Screw
• Machine Warranty：2 Years for Machine Body
• Spindle Speed：0-24000 Rpm,Min
• Engraving Depth：10mm
• Command Language：G Code
• Linear Guide：Hiwin Linear Guide From Taiwan
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW1325 Certification CE, ISO, CCC Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized X,Y Working Area 1300mmx2500mm Z Working Area >120mm Resolution Ratio 0.005mm Drive Motor Stepper Tramsmission Xy Gear Rack, Z Ball Screw Machine Warranty 2 Years for Machine Body Spindle Speed 0-24000 Rpm/Min Engraving Depth 10mm Command Language G Code Linear Guide Hiwin Linear Guide From Taiwan Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China Production Capacity 500 Sets Every Year

Product Description

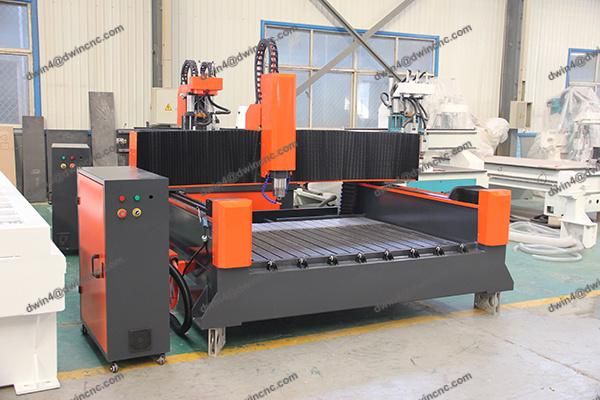

   Heavy Duty 3D Stone Granite CNC Router Engraving Carving Machine



Machine Feature
1.Multi-factions: engraving and cutting
MORN stone cnc machine  applied to 3d carving and cutting on heavy stone materials, marble, tombstone, headstone
2. Strong machine body
Adopted square steel welding, prolong the lifetime of the cnc machine.
3. High precision
High accuracy stepper motors, Taiwan square orbit and oblique gear racks ensure the stability and precision during working.
4. Spare parts standardization
The same number of parts can be current used for different machine.
5. Compact packaging
Smaller package will help lower your freight charges.
6. Easy assembly, timely delivery, simple maintenance.



Machine parameter

Performance parameter	DW-S1325  stone cnc carving machine
X,Y Working area	1300mmx2500mm
Z Working area	250mm
Table size	1800mmx2900mm
Processing precision	0.05mm
Reposition precision	0.05mm

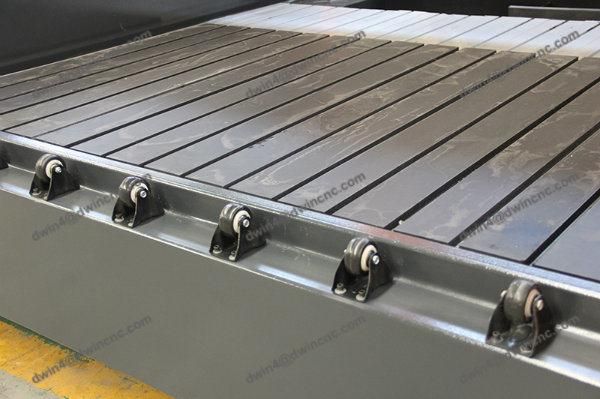

Table structure	Whole iron
X,Y,Z structure	X,Y,Z square orbit
Command	G CODE
Machine power	2KW
Max processing speed	6000mm/min
Max speed	8000mm/min
Working voltage	AC380V/50Hz
Spindle power	5.5KW china water cooling
Spindle rotating speed	0-24000rpm/min
Drive motor	Stepper motor
Operation system	NC Studio

Machine application
1.Carpentry industry:MDF,3D wave plate processing, cupboard door, wooden craft door, paintfree door, screen, craft window, etc. furnitures processing, milling and engraving.
2.Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, etc. variousadvertising materials making.
3.Mold industry:can engrave copper, aluminum, iron and other metal moulds, as well as marble,plastic plate, wood plate and other nonmetal moulds.
4.Other industry: a variety of shadow carving, relief carving and other crafts and gifts industry.

Stone cnc machine packing:
1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm steel frame,convenient to Handling and transport.



FAQ:
1, How to pay to you ?
We accept paying by T/T ( bank transfer), Western Union and paying on Alibaba. We can accept 50% as deposit , and balance paid to us before delivery.
2, How long is the delivery time?
For standard machines, it would be 7-15 days production time; For non-standard machines and customized machines according to clients Specific requirements, it would be 20-30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. You also can arrange shipping by yourself if you have your own shipping company. We can ship the machine to you both by sea and by air. Air freight is higher than sea freight, you can choose if you need the machine urgently.
4, How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by you.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Strong Seaworthy veneer wood Package with Steel Belt
Save space as much as possible for container loading.
