High Quality Vertical Cutting Sandstone 4 Axis Rock Stone Cutting Machine for Processing
Jinan Sea Eagle Cnc Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：24months
- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Blue Stone and Marble
- Automation：Semi-automatic
- Control：CNC
Base Info
- Model NO.：8015
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
- Current：AC
- Application：Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Spindle Power：7.5kw
- Motor：AC Servo
- Machine Body：Heavy Duty
- Transport Package：Plywood Box
- Specification：3200*1600*1000mm
- Trademark：sea eagle
- Origin：Jinan China
- HS Code：84649090
- Production Capacity：5000sets,Year
Description
Basic Info.
Model NO. 8015 Motor Power High Power Engraving Head Speed Adjustability Wide Adjustable Range Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Spindle Power 7.5kw Motor AC Servo Machine Body Heavy Duty Transport Package Plywood Box Specification 3200*1600*1000mm Trademark sea eagle Origin Jinan China HS Code 84649090 Production Capacity 5000sets/YearProduct Description

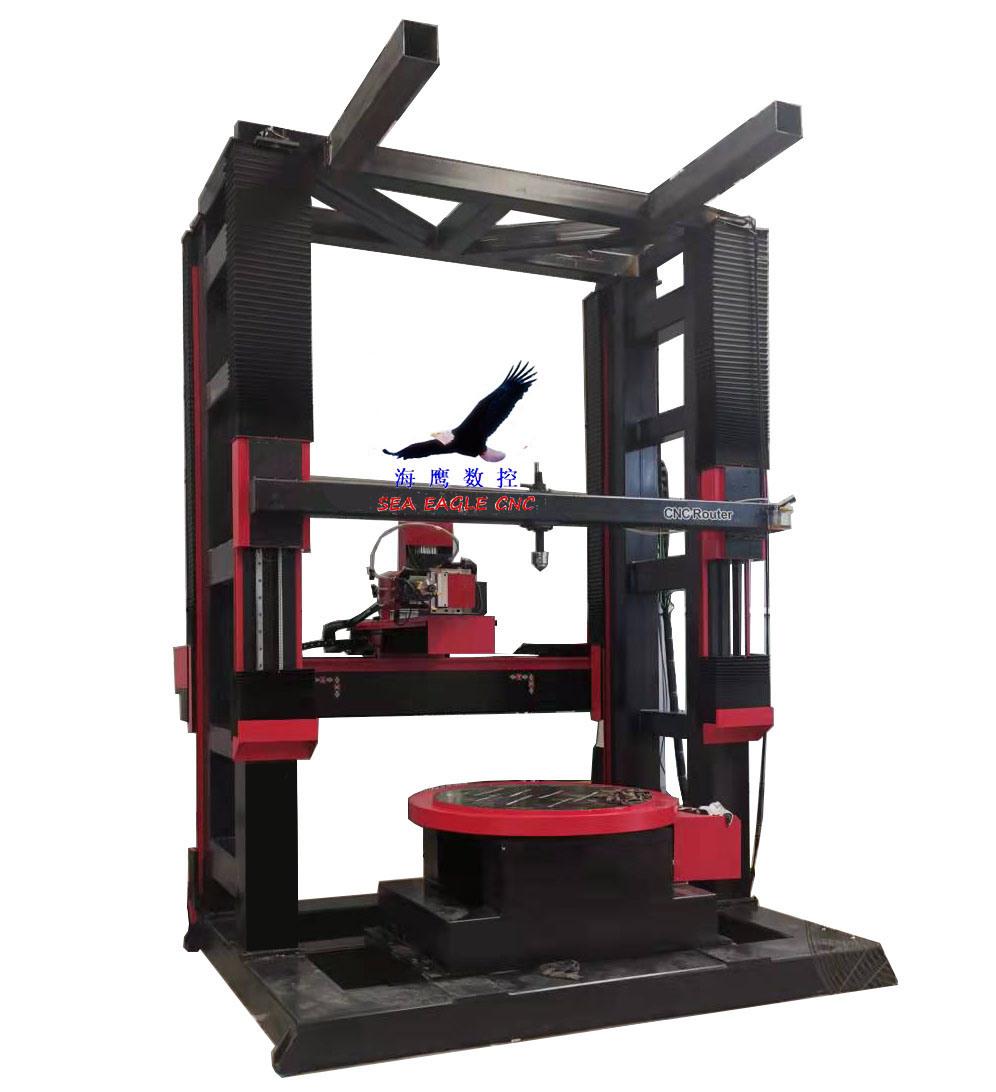

| Model | SE-8015 vertica stone CNC router |
| Spindle power | 7.5kw high-speed water cooling stonespindle |
| Machine travel | Max.diameter is 800~1500mm Max.height is 1500~2400mm |
| Transmission mode | X,Y,Z use 3210 and 4510 ball screw Double rows 4 lines 30mm rail, slide block with flange |
| Work power | AC380V |
| Idling speed | 15m/min |
| Safe system | Mechanical travel limit protection system |
| Lubrication system | Automatic oil filling protection system |
| Machine body | 6~8mm Thickened bed support, machining center milling table face |
| Repositioning Accuracy | 0.02mm |
| Installation type | machine head adopts the form of longitudinal flat hanging and is fixed with steel hanging plate |
| Software | JD paint, PM Customized saw blade roughening software |
| Control system | DSP A18 |
| metal plate | Whole machine plastic spraying |
| Motor and driver | X=750w Y=1.3kw Z=750w rotary =2.3kw AC servo motor and driver |
| inverter | BEST |
| Machine table | The customized rotary platform adopts steel platform, and the reducer adopts 110 cast iron reducer |
| Power Distribution Box | Standard |
| Spindle cable | National standard special high flexible shielded wire |
| dustproof | yes |
| Rough machining | Saw Blade Diameter |
| Machine size | Width=1600mm,length=2700mm,height=3000mm(following order) |
| Machine weight | 3500kgs |
