• Model NO.：30hp 60hp Slab Bridge Saw Stone Cutting Machine
• Usage：Ceramics, Concrete Curb, Granite, Marble
• Application：Machinery & Hardware, Construction, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：Low Speed
• Control：Control Panel

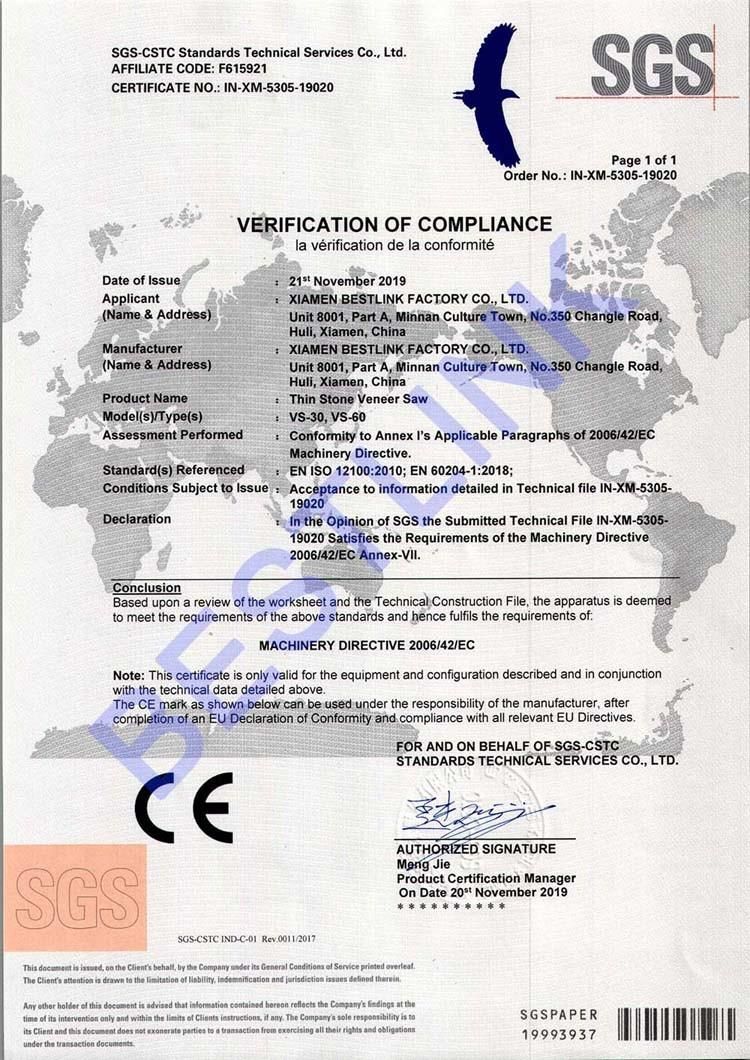

• Certification：CE
• Blade Diameter：750mm-1200mm
• Condition：New
• Power：22 , 45 Kw
• Blade Number：Single
• Cutting Depth：280-450 mm
• Color：Customized
• Loading：Full Container
• Transport Package：Nude Packing
• Specification：3100mm*1600mm*1730mm
• Trademark：BESTLINK
• Origin：China
• HS Code：84791090
• Production Capacity：100 Sets,Month

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min

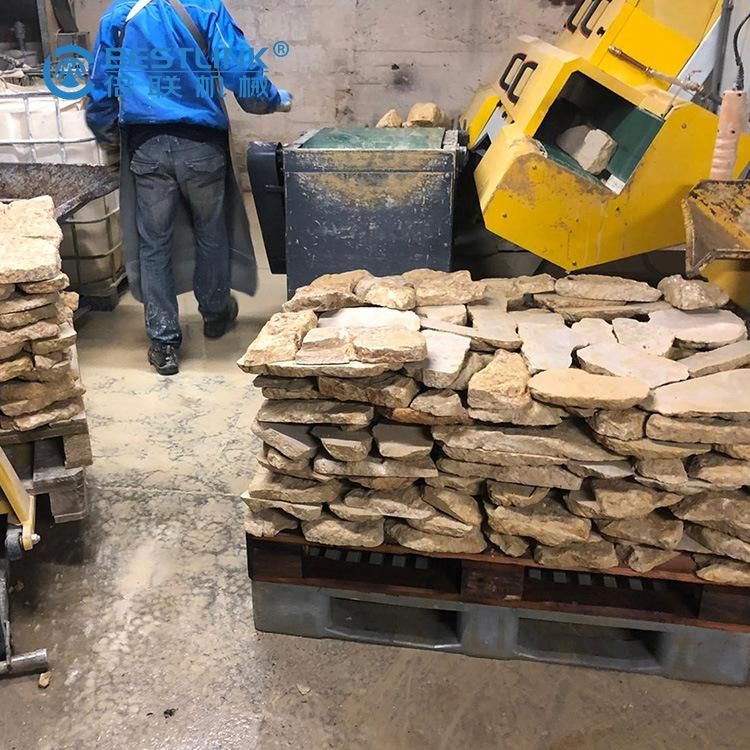

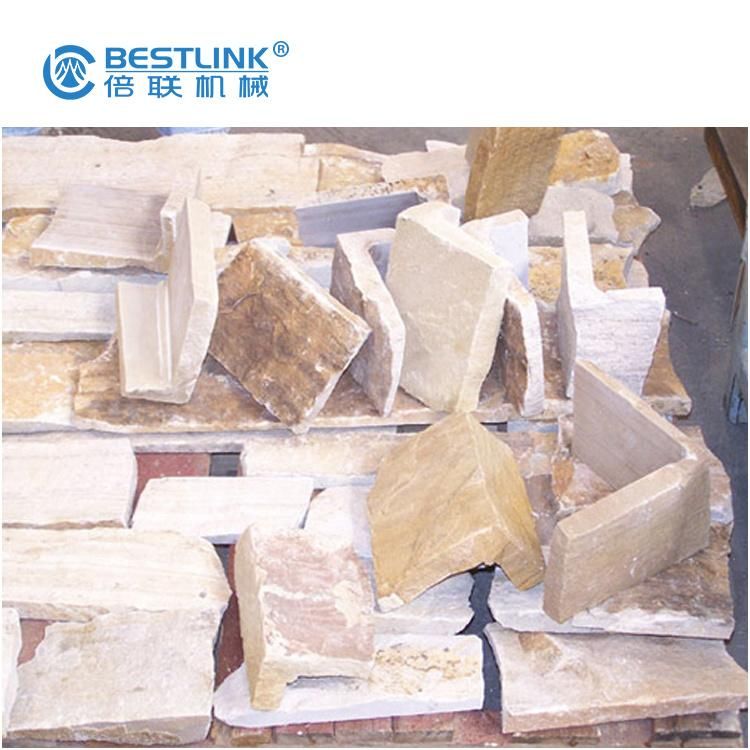

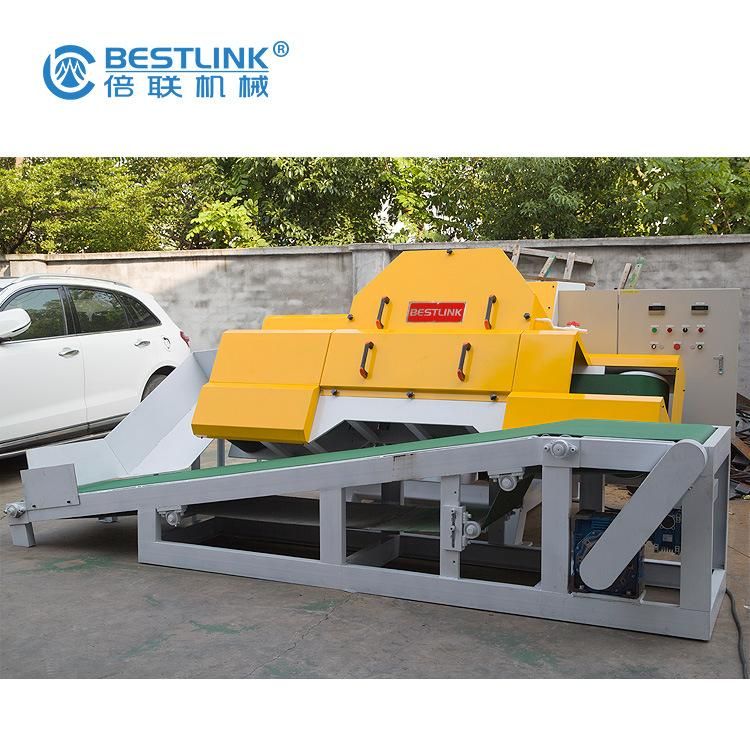

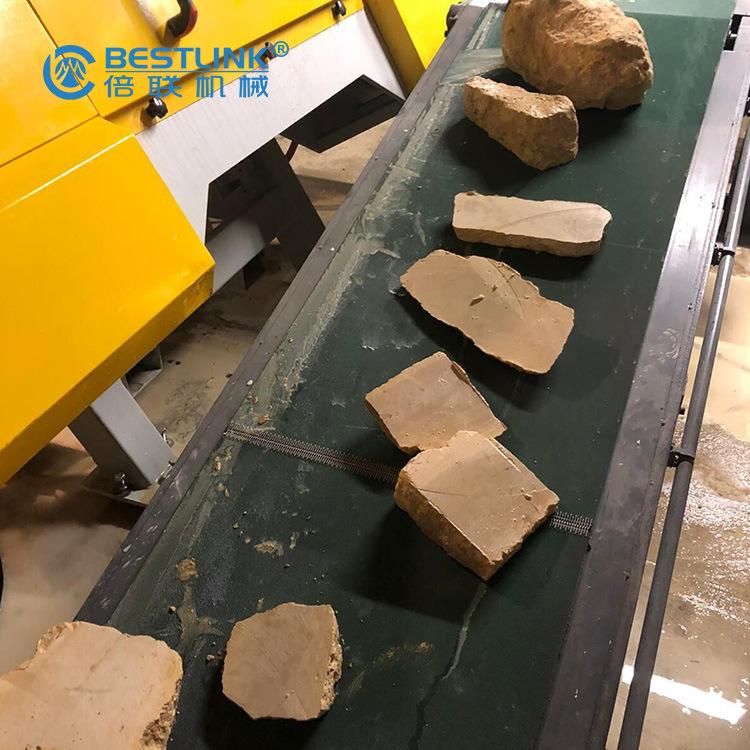

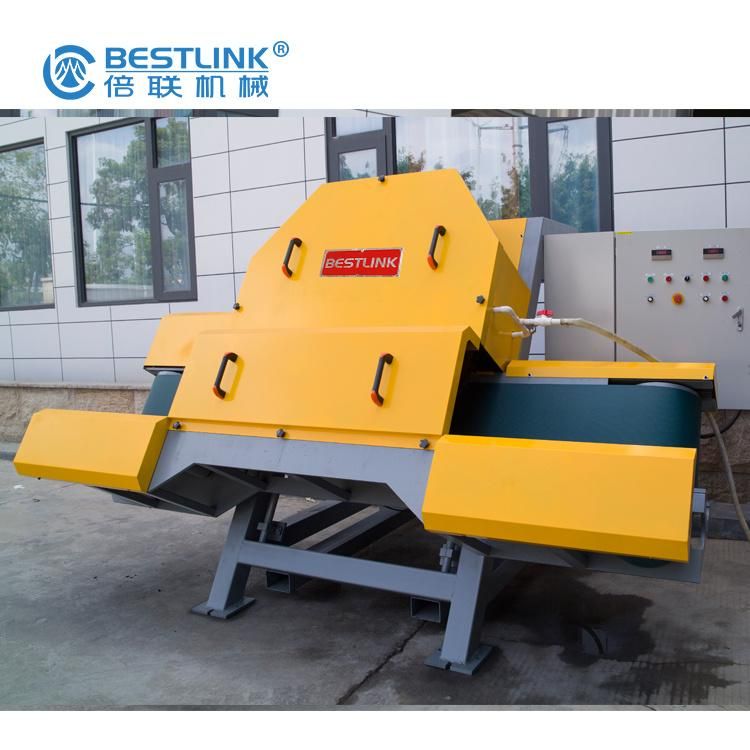

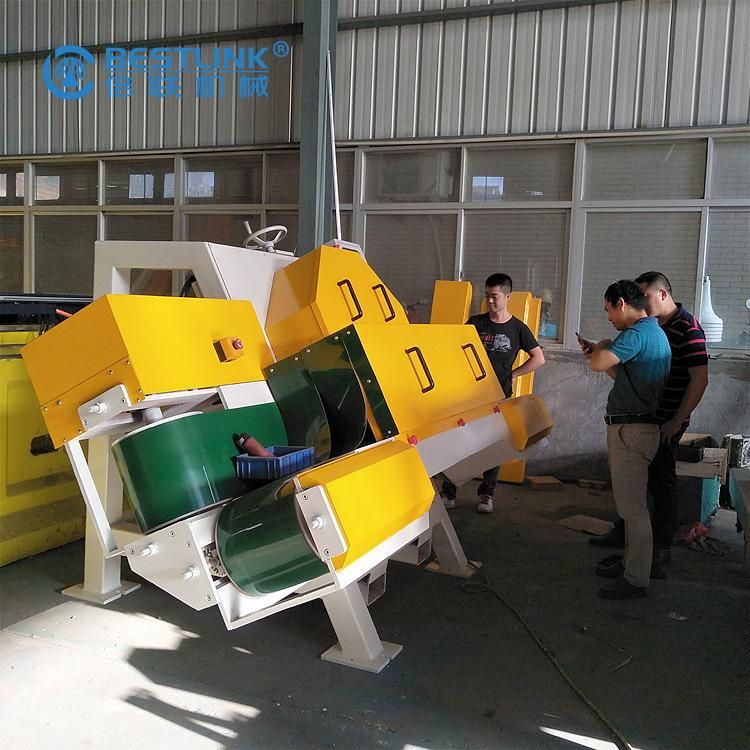

Pictures for the Thin Veneer Saw Machine Detailes:

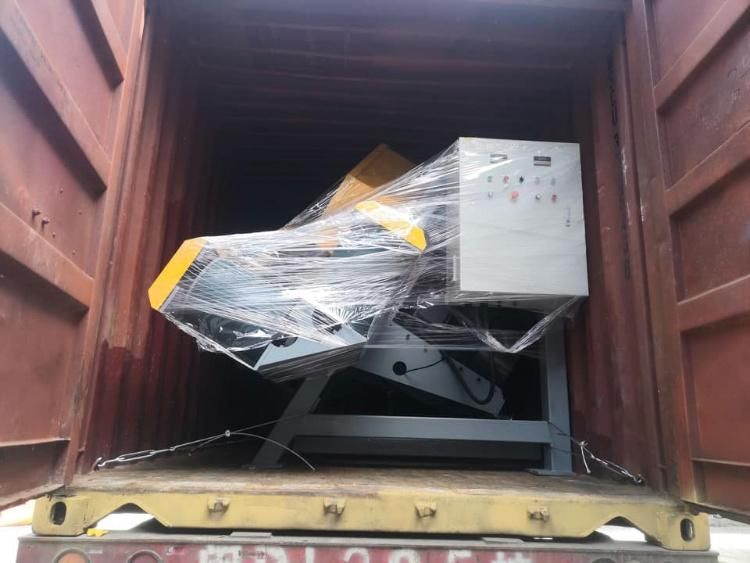

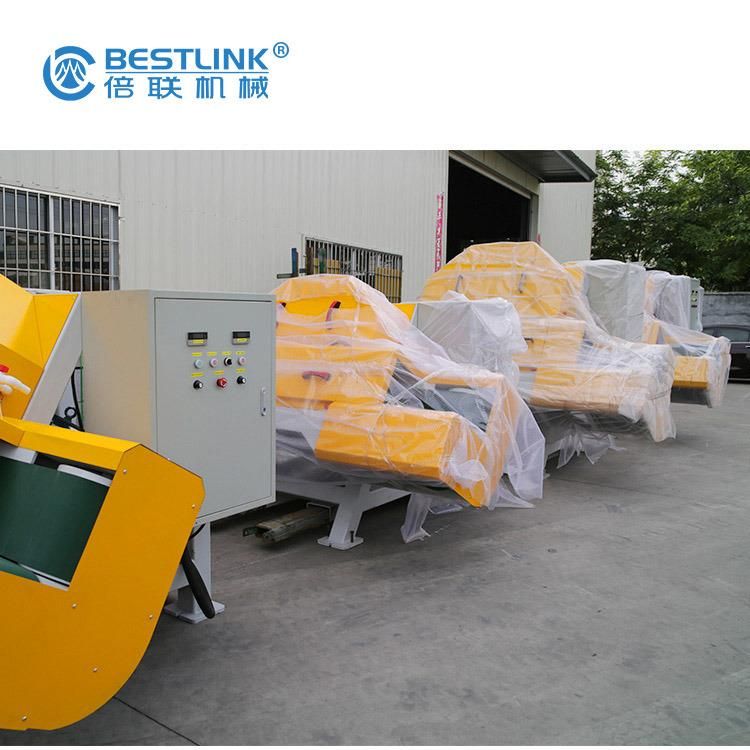

Veneer stone saw is loading and shipping to Norway
