• Model NO.：BRT200T
• Control：Electric
• Certification：CE
• Color：Green or According to Your Request
• Certificate：CE
• Brand：Bestlink
• Loading Port：Xiamen
• Transport Package：Wooden Box
• Specification：CE
• Trademark：BESTLINK
• Origin：Xiamen, China
• HS Code：84791090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. BRT200T Control Electric Certification CE Color Green or According to Your Request Certificate CE Brand Bestlink Loading Port Xiamen Transport Package Wooden Box Specification CE Trademark BESTLINK Origin Xiamen, China HS Code 84791090 Production Capacity 1000sets/Year

Product Description

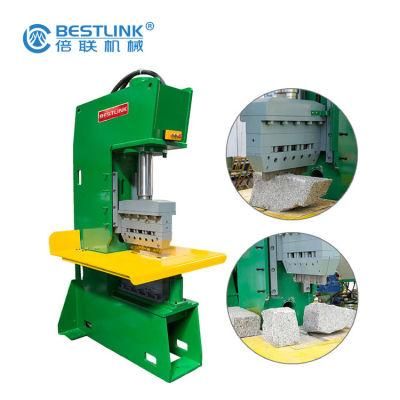

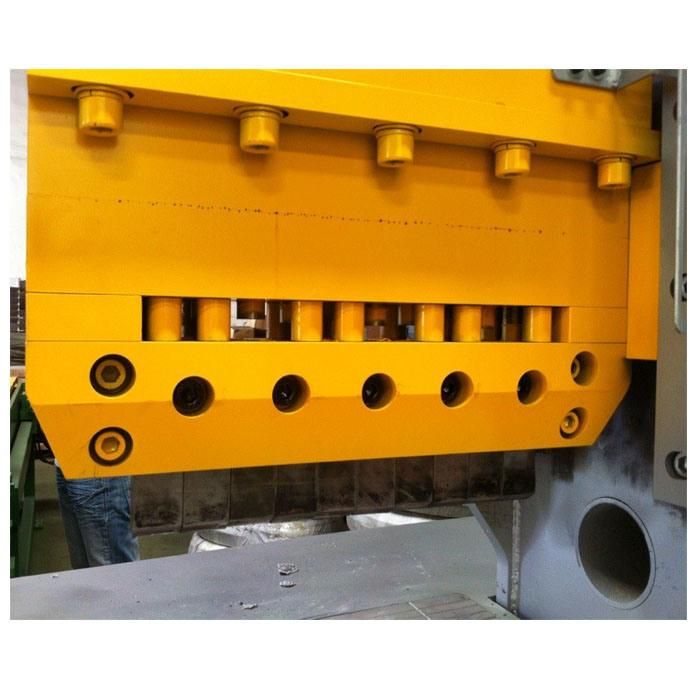

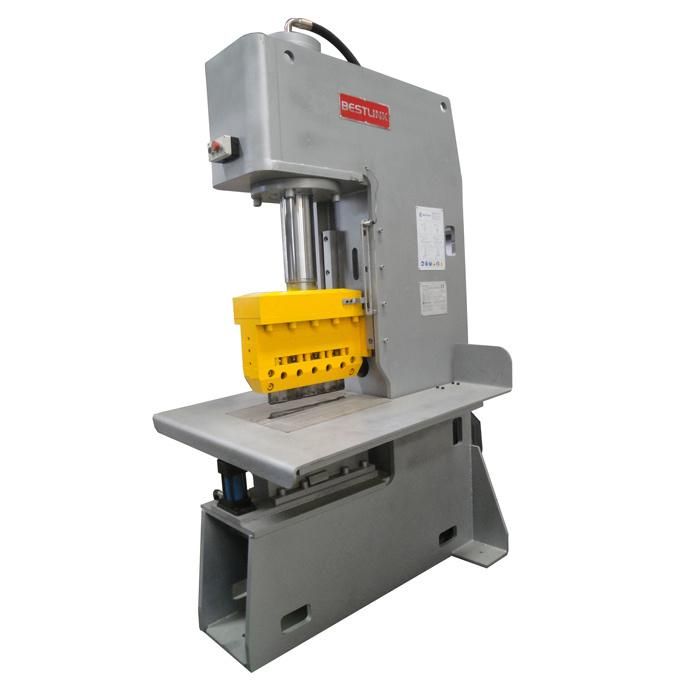

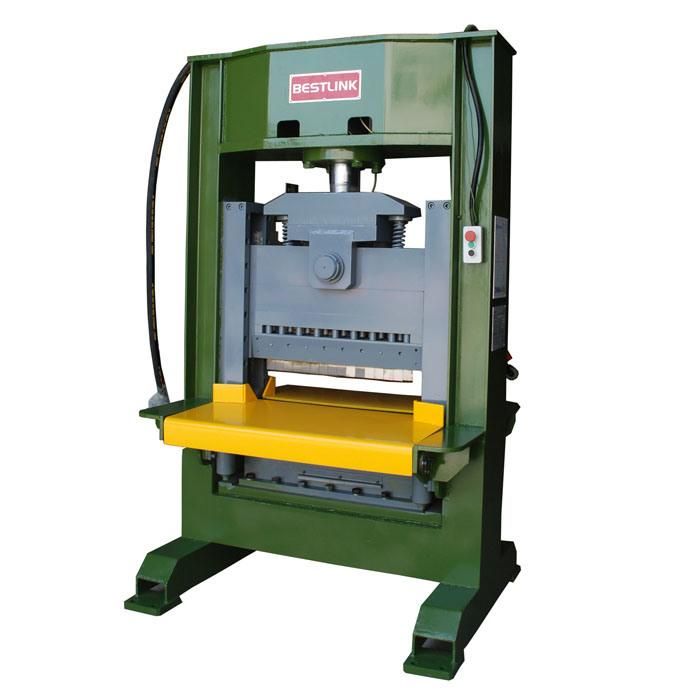

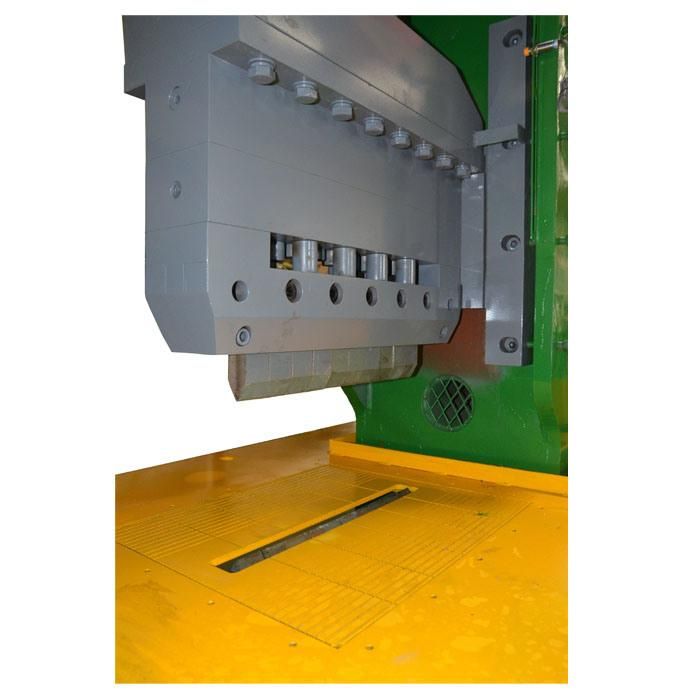

Granite and marble splitting machineHydraulic operated stone splitting machines can be use for every kind of stone. The machinery is primarily designed for the manufacture of tiles, curbstones, and split-faced walling, but can also be adapted to other areas of the stone industry. The crushing power and long blade, Broadway and Winstar models are adequate for large wall stone and curbing production.







The production line of stone machinery be supplied in many sizes and can be adapted to many uses in the stone industry. Paving stone and tile cutters will want to see the Igloo Model. Ease of operation and fast splitting are sure to increase production compared to underpowered splitters.

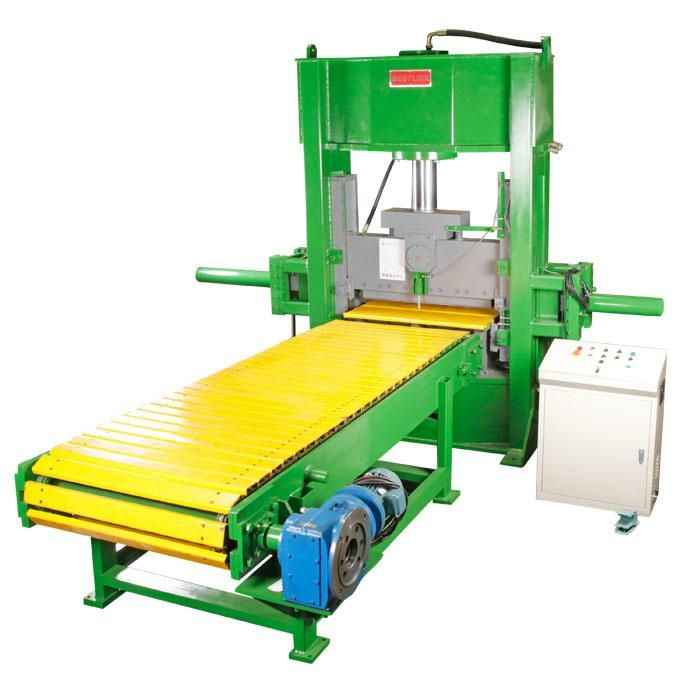

For large block splitting operations encountered in the stone industry, integrated conveyor systems and long blades and crushing power make splitting of large blocks an easy project. The well-know brand breaking technology, along with the absolute silence of the new pumps, completed by the high up/down motion speed of the piston ( up to 260 mm/sec. For PSM 320- 54 ton- type machines).

We provide several models for your various choice, like BRT20T, BRT40T, etc. Of course, we also can design a special model based on your detailed requirement.

Model no.	BRT320-1200*800	BRT160T-500*550	BRT70-400*350	BRT40T-240*320	BRT20T-160*180
splitting pressure	320t	160T	70T	40T	20T
max. splitting width	1200mm	500mm	400mm	240mm	160mm
max. splitting height	800mm	550mm	350mm	320mm	180mm
adaption of upper /lower blade	36*20mm	30*15mm	20*10mm	15*10	10*7mm
rated power	22KW	15KW	11KW	11KW	7.5KW
rated voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
electric current	42.5A	30A	22.6A	22.6A	15A
main oil cylinder data	Φ400/Φ280-850	Φ280/Φ200-600	Φ200/Φ140-360	Φ160/Φ110-340	Φ110/Φ80-200
oil advanced speed	40mm/s	76.6mm/s	108mm/s	167mm/s	96mm/s
overall size (L*W*H)/mm	2370*1500*3840	1970*1200*3300	1500*1200*2520	1260*1000*2300	1145*1000*2030
weight	8000KG	5300KG	3200KG	2900KG	2300KG
