• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size (Lxw)：3200X2000 mm
• Max. Cut Thick：170 mm
• Table Tilting：0-85°
• Table Rotation：0-360°
• Blade Tilting：0-45°
• Max. Blade Size：625mm
• Spindle Motor：15 Kw
• Weight：7200kg
• Transport Package：Plastic Packing
• Specification：Dimention: 6x5x3 m
• Trademark：AGA
• Origin：Xiamen, Fujian, China
• HS Code：84641010
• Production Capacity：100sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size (Lxw) 3200X2000 mm Max. Cut Thick 170 mm Table Tilting 0-85° Table Rotation 0-360° Blade Tilting 0-45° Max. Blade Size 625mm Spindle Motor 15 Kw Weight 7200kg Transport Package Plastic Packing Specification Dimention: 6x5x3 m Trademark AGA Origin Xiamen, Fujian, China HS Code 84641010 Production Capacity 100sets/Month

Product Description

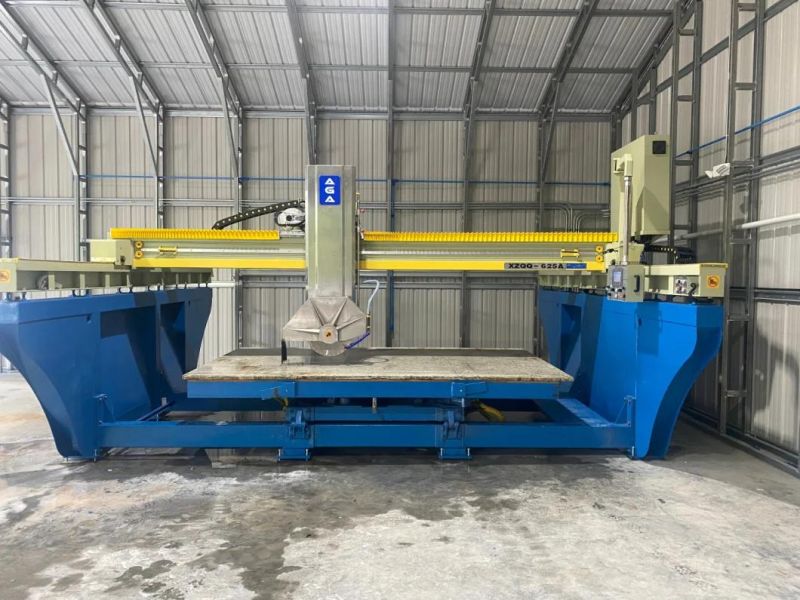

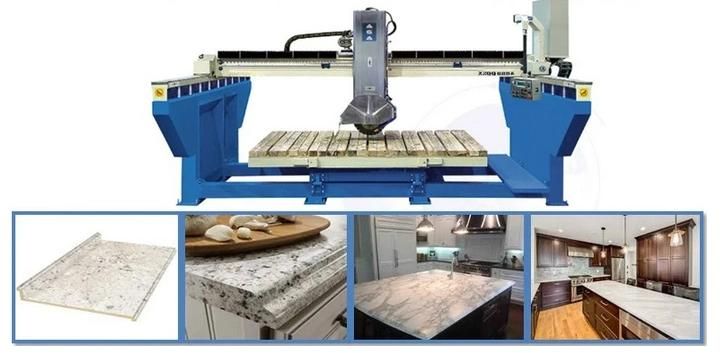

Stone Engraving Tool Tile Saw Machine for Granite Marble
-Model NO. : XZQQ625A
Description:
- Our bridge saw is a monobloc saw machine for granite kitchentop & countertop fabricator, stable electric system.
- It usually uses for cutting granite, marble Quartz of slab,tile, kitchentop,countertop, etc.
- The max cutting size is 3200mmx2000mmx175mm (126"x78"x7").
- The blade motor is 15Kw( 20HP) , providing high power to work.
- XZQQ625A  bridge saw  provides covered oil bath for the movements of bridge rails.
- Also all the functions are operated on the control panel that make it very user friendly.

Faetures:
1) Monoblock frame
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails

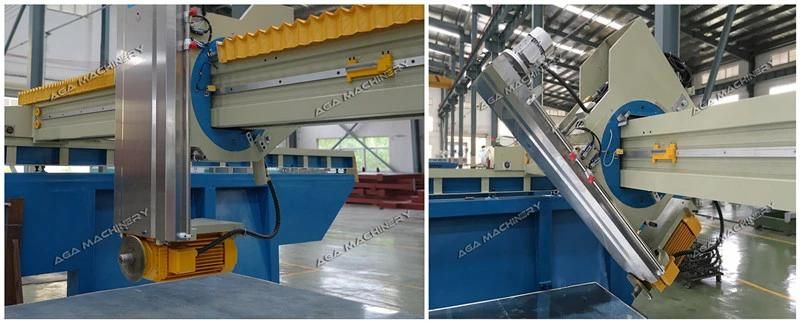

2) Blade&Table

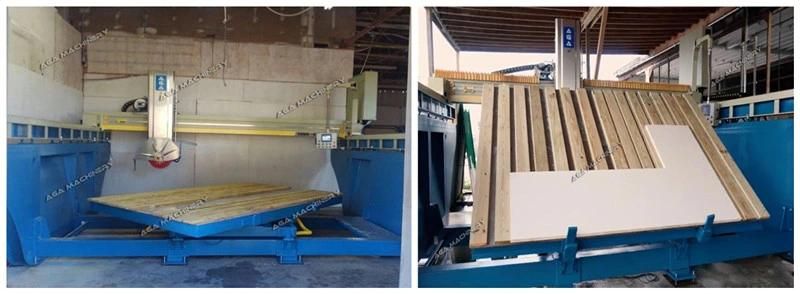

Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts. Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.

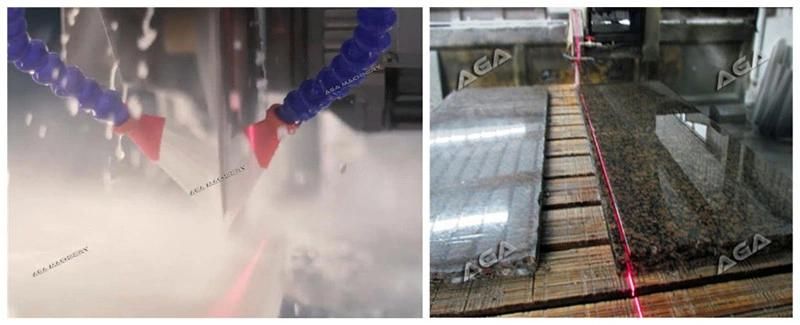

3) Laser guide cutting
The laser guide and sensors gives high accuracy for the machining tolerance.

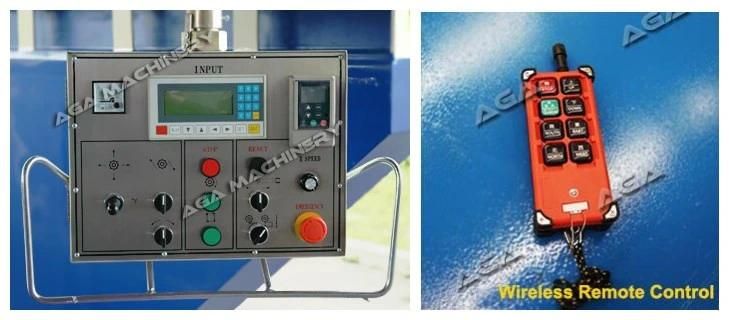

4) Control appliance
Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross   command switch by hand, real time data display on screen. Wireless remote provides ease control of the saw.

5)Applicable stone range
Granite , Marble, Sandstone, Limestone, Quartz and so on.

6)Functions
1. Cutting slabs intor various sizes of tiles/cut-size;
2. Processing slabs,tiles,kerbstone,pavingstone, kitchen counter-tops, vanity-tops, monument,fireplaces, shower surrounds, stair, windowsill ... ect.
                    Spesification:

Blade size	400-625mm   16"-25"
Cut length	3200mm         126"
Cut width	2000mm         78"
Cut thick	170mm            7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kw              20HP
Size (L×W×H)	6×5×3 m
Weight	7200kg       16000lbs

Packing
Keywords: Granite cutting machine, Stone cutting machine, Marble cutting machine, Infrared cutting machine, Bridge saw, Bridge cutting machine, Tile cutter, CNC cutting machine, CNC machine, Laser guide cutting machine, Blade tilting machine,Countertop processing machine, Top-sale cutting machine in US.

FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

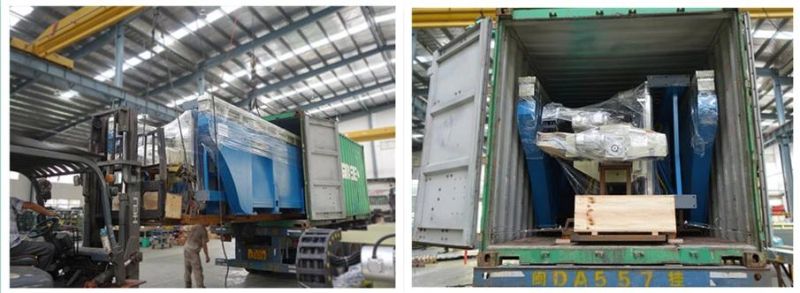

5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading
