• Model NO.：QSQ-2200,2500,3000
• Control：PLC
• Certification：ISO, CE
• Output：7 Sqm Per Hour
• Color：Yellow
• Transport Package：40FT Hq Container for 1 Set
• Trademark：wanlong
• Origin：Quanzhou, China
• HS Code：8464101000
• Production Capacity：100sets Per Year

Basic Info.

Model NO. QSQ-2200/2500/3000 Control PLC Certification ISO, CE Output 7 Sqm Per Hour Color Yellow Transport Package 40FT Hq Container for 1 Set Trademark wanlong Origin Quanzhou, China HS Code 8464101000 Production Capacity 100sets Per Year

Product Description

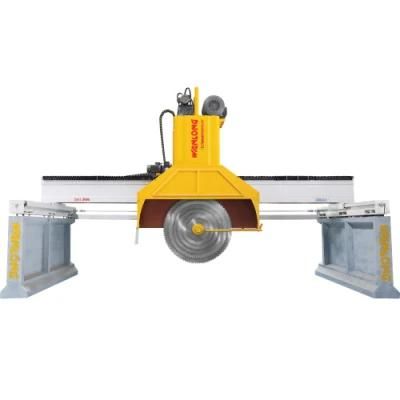

QSQ-2200 Stone Machine / Block Cutting Machine
1)Bridge Multi blade Cutting Machine
2)Automatic Granite Block Cutter
4)High Productivity & multi disc bloc cutting machine



QSQ-2200 Block Cutter/ block cutting machine combines different diameters of blades working, and hydraulic lifting system four columns type, make the machine with high cutting efficiency.The cross beam moves for feeding and slicing, so that the table for block is not necessary, Heavy duty structure, logical control system easy operation together with "Wanlong" Blade give high production and make the finished slabs with flat surface.



Features:

Strong Casting Iron crossbeam and vertical beam to avoid distortion after long-term use

Dustproof design of the slide track ensures the precise guide movement & long lifespan

Double V-Shape guide rails enhance the smooth cutting and movement

Blade slicing by crossbeam back and forward encoder

Optional Motor Power: 37kw, 45kw and 55kw are available upon request. SIEMENS BRAND available!!

Touch Sensitive Panel  Easy for worker of not high education to operate

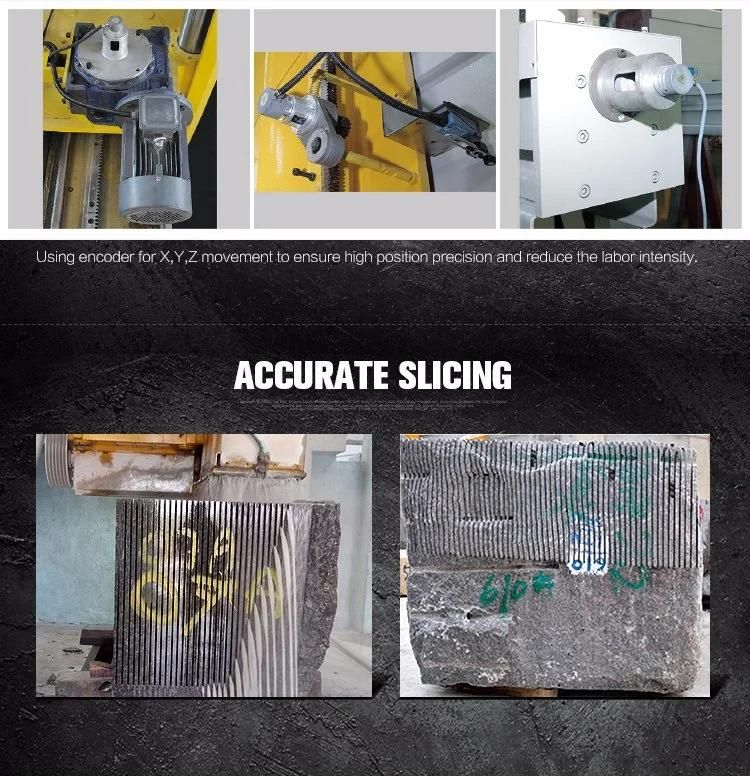

with encoder on machine's 3 axis, X, Y,Z-real Automatic

locking system on vertical beam protects the machine collaption

Leading system available in hydraulic-fast blade lifting

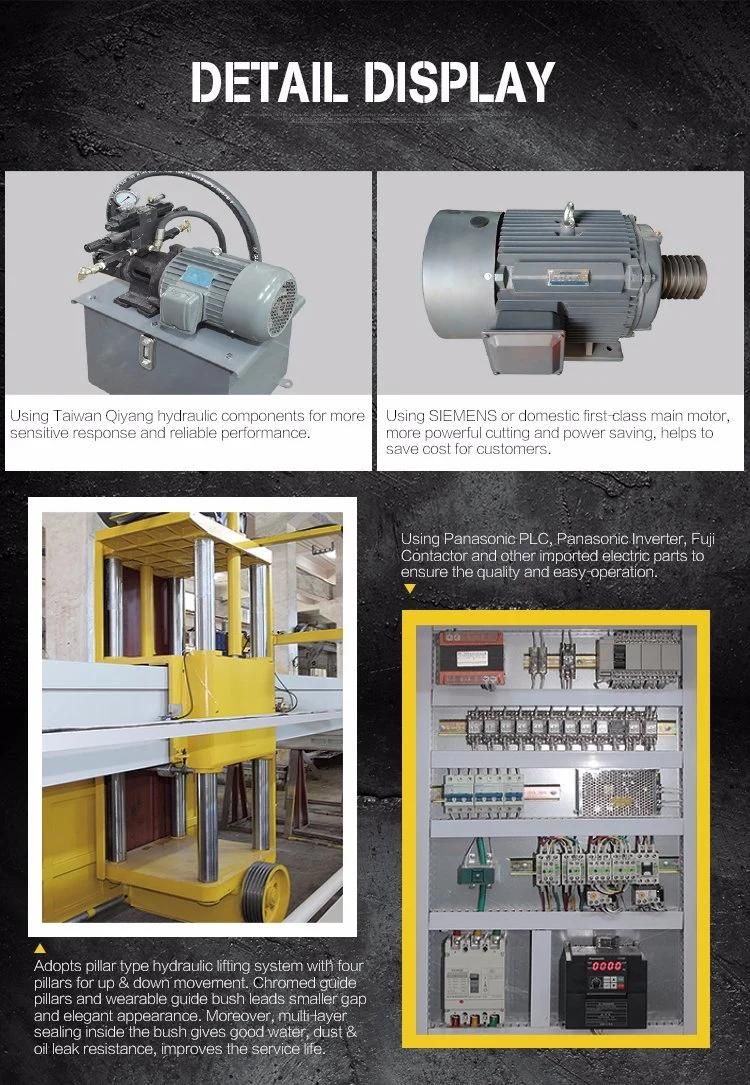

Imported Electronic parts: PLC and frequency inverter- Panasonic; relay-Fuji, Mitsubishi air switch etc.
