• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 80sets/Month

Product Description

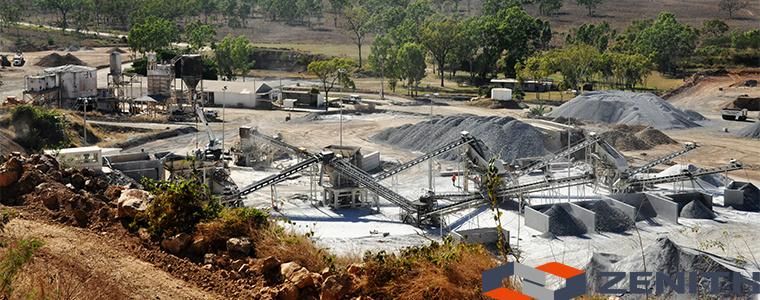

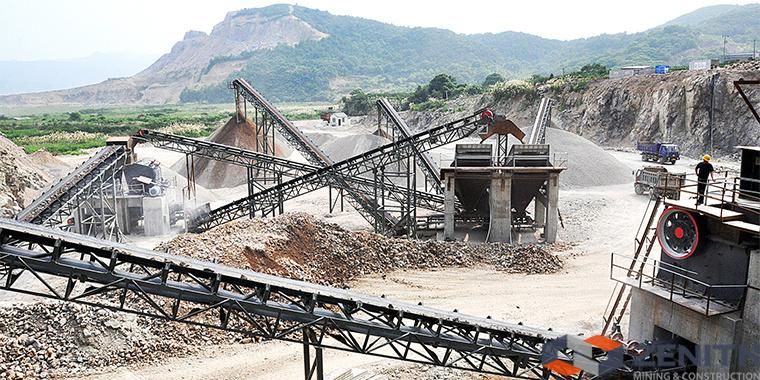

80tph stone Crusher/ Stone Crusher Plant for Sale

stone Crusher/ Stone Crusher Plant introduction:

New generation crusher, stone Crusher/ Stone Crusher Plant is born with innovative significance. It is newly designed and improved by our experts on basis of their more than 20 years' crusher manufacturing and designing experience. The unique design concept makes this series crusher achieve perfect combination between crushing efficiency and operating cost. Meanwhile, it has wide range of application, particularly suitable for crushing hard rock, such as basalt, river pebbles.


stone Crusher/ Stone Crusher Plant Features:

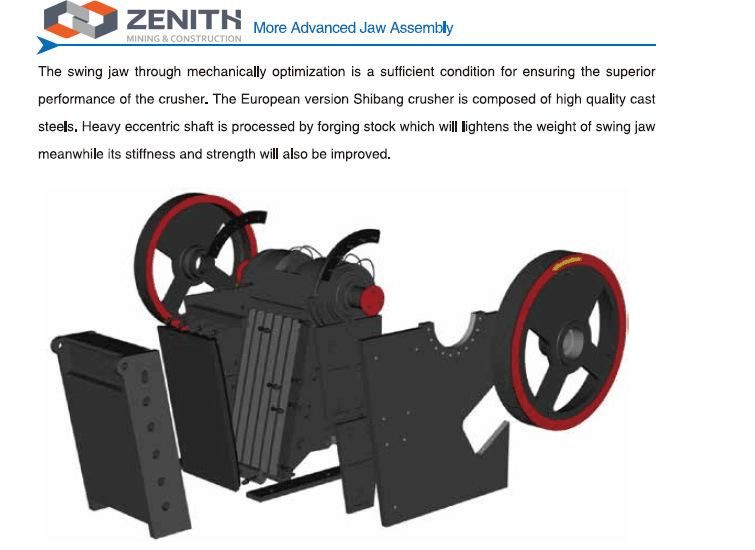

1. Durable moving jaw assembly.

2. Integral cast steel bearing housings.

3. Fast and safe setting adjustment.

4. Reasonable cavity design.

5. Larger-size and larger-carrying-capacity bearings.

6. Compact & robust structure.


stone Crusher/ Stone Crusher Plant working principle:

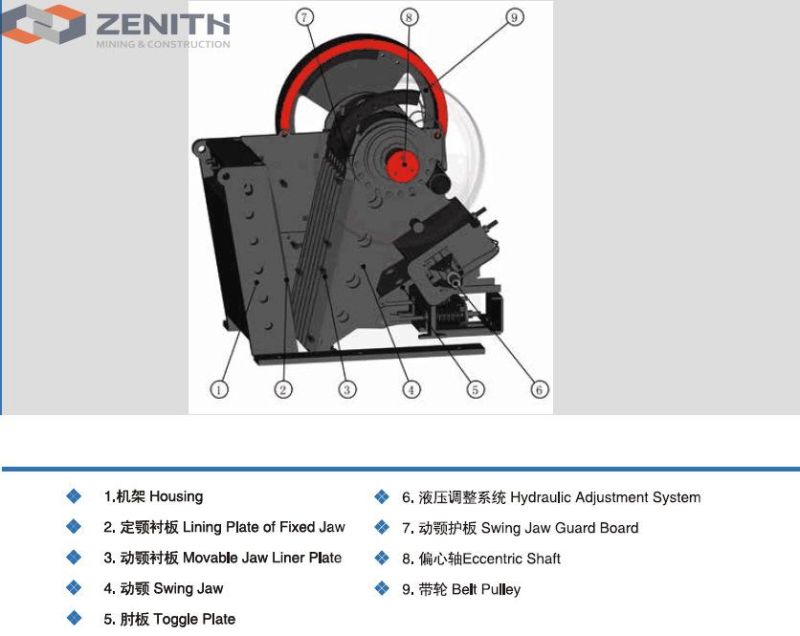

The working principle of stone Crusher/ Stone Crusher Plant is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, jaw crusher is easy to maintain and repair. These features promote its popularity to a great extant.


stone Crusher/ Stone Crusher Plant Application:

Feedstock Size:1 - 750mm
throughout:90 - 450t/h
Fields Of Application:This machine is widely used in mine ore crushing, recycling of construction waste, construction aggregate, highway, railway, bridge and the production of construction industry.
Suitable Materials: It is widely used in all kinds of hardness of rock materials and ore crushing, such as granite, diabase, basalt, shale, sandstone, quartz stone, gravel, limestone, iron ore, copper ore, manganese ore, coal, nonferrous metal ore, stone etc.



stone Crusher/ Stone Crusher Plant technical data:


Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Outlet Range (mm)	Capacity (t/h)	Motor Power (KW)	Weight (ton)	Overall Dimension(mm)
PEW760	760x1100	620	75-200	150-350	110-132	24	2600× 2500× 2200
PEW860	860x1100	720	100-225	200-500	132-160	32	3300× 2320× 3120
PEW1100	1100x1200	930	150-275	300-650	185-200	59.2	4140× 2660× 3560
PEW400x600	400x600	350	35-85	15-70	37	6.8	1920× 1460× 1840
PEW250x1200	250x1200	220	20-40	20-50	37	6	1400× 2050× 1310
PEW250x1000	250x1000	220	20-40	15-50	30	5.6	1400× 1850× 1310
